A Guide to Data Science

This is a brief introduction to data science. Data science can be seen as an extension of statistics.

  • $\color{aqua}{\text{ All sciences are, in the abstract, mathematics.}}$
  • $\color{aqua}{\text{ All judgments are, in their rationale, statistics. by C.P. Rao}}$

On Chomsky and the Two Cultures of Statistical Learning or Statistical Modeling: The Two Cultures (with comments and a rejoinder by the author) provides more discussion of statistical model or data science.

Statistical Foundation

"Statistics, in a nutshell, is a discipline that studies the best ways of dealing with randomness, or more precisely and broadly, variation", Professor Xiao-Li Meng said.

On mathematical model

Basic Probability

Probability theory is regarded as the theoretical foundation of statistics, which provides the ideal models to measure the stochastic phenomenon, randomness, chance or luck. It is the distribution theory bridging probability and statistics. The project seeing theory is a brief introduction to statistics and probability theory and also a .pdf file.

Random Variable

Random variable is to represent the stochastic event, where stochastic event is the event that may or may not happen with some known results.

Definition: A random variable is a mapping $$ \color{green}{X:\Omega \rightarrow \mathbb{R}} $$
that assigns a real number $X(\omega)$ to each outcome $\omega$.

  • $\Omega$ is the sample space.
  • $\omega$ in $\Omega$ are called sample outcomes or realization.
  • Subsets of $\Omega$ are called Event.

Probability

Probability is the mathematical measure to likelihood or chance.

Definition A function $P$ is called probability function with respect to the known sample space $\Omega$ and all the event $\forall \omega \in \Omega$ if

Properties Conditions Interpretation
Nonnegative $P(\omega) \geq 0 \forall \omega \in \Omega$ Impossible = 0
Normalized $P(\Omega) = 1$ Something must happen
Additive If $\omega_1, \omega_2, \cdots \in \Omega$ are disjoint, then $P(\bigcup_{i=1}^{\infty}\omega_i)=\sum_{i=1}^{\infty}P(\omega_i)$ Do your own business

These properties are called Kolmogorov axioms1.

1 2 3
Kolmogorov 3 Kolmogorov Kolmogorov 2

Discrete Distribution

Random variable or event is countable or listed, then we can list the probability of every event. If so, we can compute the probability of a random variable less than the given value. For example, $P(X\leq 10)=\sum_{i=1}^{10}P(X=i)$ if the random variable $X$ only takes positive integers.

What is more, there is a link of discrete distribution or more 2.

Probability Mass Function

The probability mass function (pmf in short) of a discrete random variable $X$ is defined as

Definition: The probability mass function of a discrete random variable $X$ is defined as
$$f_X(x)=P_X(X=x)$$ for all $x$.

The left subindex $\mathrm{X}$ is to point out that the probability is with respect to the random variable $X$ and it can omit if no confusion.

Continuous Distribution

If random variables may take on a continuous range of values, it is hard or valueless to compute the probability of a given value. It is usually to find the cumulative distribution function.

Cumulative Distribution Function

Definition: A function $F(x)$ is called cumulative distribution function (CDF in short) if

  • $\lim_{x\to -\infty}F(x) = 0$ and $\lim_{x\to \infty}F(x) = 1$ ;
  • The function $F(x)$ is monotone increasing function with $x$;
  • $\lim_{x\to x_0^+ } F(x) = F(x_0)$ for all $x_0$.

In probability, $\forall x$, $F(x) = P(X\leq x)$ for some random variable $X$.

For example, if the random variable $X$ has the cumulative distribution function (CDF) $$ F_X(x)=\begin{cases} x, & \text{$x \in [0, 1]$}\1, &\text{$x\in (1, \infty)$}\0, & \text{otherwise}\end{cases}, $$ we say the random variable $X$ is uniformly distributed in $[0, 1]$.

We can see this link as reference3.

Probability Density Function

The probability density function can be seen as the counterpart of pmf. For the continuous random variable $X$, its CDF $F_X(x)$ is not required to be differentiable. But if so, we can compute the derivative of the CDF $F_X(x)$: $\frac{\mathrm{d}F_X(x)}{\mathrm{d}x} = f_X(x)$.

Definition: We call the function $f_X(x)$ is the probability density function with respect to the continuous random variable $X$ if $$F_X(x) = \int_{-\infty}^{x}f_X(t)\mathrm{d}t$$ for all $x$, where $F_X(x)$ is the probability cumulative function of the random variable $X$.

For example, the random variable $X$ uniformly distributed in $[0, 1]$ has the probability density function $$ f_X(x)=\begin{cases} 1, & \text{$x \in [0, 1]$}\0, & \text{otherwise}\end{cases}. $$

Thus the probability of event $A$ can be written as $\int_{x\in A}f_X(x)\mathrm{d}x$. PS: $\color{red}{NOT}$ all random variables have the probability density function.

Definition: If the pdf $f_X$ is positive in the set $\mathbf{S}$, we call the set $\mathbf{S}$ is the support set or support of the distribution.

One common probability - $\color{teal}{\text{normal or Gaussian distribution}}$ - is often given in the pdf: $$ f(x|\sigma^2, \mu)=\frac{1}{\sqrt{2\pi\sigma^2}}e^{-\frac{(x-\mu)^2}{2\sigma^2}}, $$ where $\sigma^2$ is given positive and finite, $\mu$ is given and finite. And its support is $(-\infty,\infty)$.

***

Power-law Distributions

The density function of a power law distribution is in the form of $$ f_X(x)= x^{-\alpha}, x\in [1,\infty) $$ where $\alpha$ is real. It is also called Pareto-type distribution.

The power law can be used to describe a phenomenon where a small number of items is clustered at the top of a distribution (or at the bottom), taking up 95% of the resources. In other words, it implies a small amount of occurrences is common, while larger occurrences are rare.

Pareto Distribution
https://www.wikiwand.com/en/Power_law.
http://www.wikiwand.com/en/Pareto_distribution

Every probability distribution is an ideal mathematical model that describes some real event. Here is a field guide to continuous distribution. See more content in wikipedia. 4

Long Tail Distributions

Link between discrete and continuous distributions

This is the link between discrete and continuous distributions in Wikipedia.

It is possible to represent certain discrete random variables as well as random variables involving both a continuous and a discrete part with a generalized probability density function, by using the Dirac delta function. For example, let us consider a binary discrete random variable having the Rademacher distribution — that is, taking −1 or 1 for values, with probability ½ each. The density of probability associated with this variable is $$ f(t)=\frac{1}{2} (\delta (t+1) + \delta(t-1)). $$

More generally, if a discrete variable can take n different values among real numbers, then the associated probability density function is:

$$ f(t)=\sum {i=1}^{n}p{i},\delta(t-{x}_{i}) $$

where $x_1, \cdots, x_n$ are the discrete values accessible to the variable and $p_1,\cdots, p_n$ are the probabilities associated with these values.

This substantially unifies the treatment of discrete and continuous probability distributions. For instance, the above expression allows for determining statistical characteristics of such a discrete variable (such as its mean, its variance and its kurtosis), starting from the formulas given for a continuous distribution of the probability.

Bivariate Distribution

The cumulative probability function and probability density function are really functions with some required properties. We wonder the bivariate functions in probability theory.

Definition: The joint distribution function $F:\mathbb{R}^{2}\rightarrow [0,1]$, where $X$ and $Y$ are discrete variables, is given by $$ F_{(X,Y)}(x,y)=P(X\leq x, Y\leq y). $$

Their joint mass function $f:\mathbb{R}^{2}\rightarrow [0,1]$ is given by $$ f_{(X,Y)}(x,y)=P(X=x, Y=y). $$

Definition: The joint distribution function $F_{(X,Y)}:\mathbb{R}^{2}\rightarrow [0,1]$, where $X$ and $Y$ are continuous variables, is given by $F_{(X,Y)}(x,y)=P(X\leq x, Y\leq y)$. And their joint density > function if $f_{X,Y}(x, y)$ satisfies that $$F_{(X,Y)}(x,y)=\int_{v=-\infty}^{y}\int_{u=-\infty}^{x}f_{(X,Y)}(u,v)\mathrm{d}u\mathrm{d}v$$ for each $x,y \in \mathbb{R}$.

The marginal distribution

Definition: The marginal distributed of $X$ and $Y$ are

  • $$F_X(x)=P(X\leq x)=F_{(X,Y)}(x,\infty)\quad\text{and}\quad F_Y(y)=P(X\leq x)=F_{(X,Y)} (\infty, y)$$ for discrete random variables;
  • $$F_X(x)=\int_{-\infty}^{x}(\int_{\mathbb{R}}f_{(X,Y)}(u, y)\mathrm{d}y)\mathrm{d}u \quad\text{and}\quad F_Y(y)=\int_{-\infty}^{y}(\int_{\mathbb{R}}f_{(X,Y)}(x,v)\mathrm{d}v)\mathrm{d}x $$ for continuous random variables and the marginal probability density function is $$f_X(x)=\int_{\mathbb{R}}f_{(X,Y)}(x, y)\mathrm{d}y,\quad f_Y(y)=\int_{\mathbb{R}}f_{(X,Y)}(x, y)\mathrm{d}x.$$

Definition: Two random variables $\color{maroon}{X}$ and $\color{olive}{Y}$ are called as identically distributed if $P(x\in A)=P(y\in A)$ for any $A \subset \mathbb{R}$.

Representation of Random Variable

The random variable is nearly no sense without its probability distribution. We can choose the CDF or pdf to depict the probability, which depends on the case.

We know that a function of random variable is also a random variable. For example, supposing that $\color{teal}{X}$ is a random variable, the function $\color{teal}{g(X)= e^{X}}$ is a random variable as well as $\color{teal}{g(X)=\ln(X)}$.

$\color{teal}{\text{The function of random variable must have its distribution}}$. We can take it to generate more distributions.

Theorem Suppose that $X$ is with the cumulative distribution function $\color{red}{\text{CDF}}$ $F_X(x)$ and $Y=F_X(X)$, then $Y$ is $\color{teal}{uniformly}$ distributed in the interval $[0, 1]$.

Let $X$ and $Y$ be two different random variables, $Z= X+Y$ or $Z = X\cdot Y$ are typical functions of random variables, especially $X$ is discrete while $Y$ is continuous. More on the Wikipedia page random variable

Mixture Representation

Let $P_1,P_2,\cdots, P_n$ be probability distribution and $\sum_{i=1}^{n}\lambda_i=1,\lambda_i > 0 \quad \forall i\in{1,2,\cdots,n}$, we can get $$P=\sum_{i=1}^{n}\lambda_iP_i$$ is also a probability distribution. If $X$ is distributed in $P$, i.e.$X\sim P$, its probability is computed as $$P(X=x)=\sum_{i=1}^{n}\lambda_iP_i(X=x)$$ for discrete random variable or $$P(X\leq x)=\sum_{i=1}^{n}\lambda_iP_i(X\leq x)$$ for continuous random variable.

Definition: A random variable $X$ is said to have a mixture distribution if the distribution of $X$ depends on a quantity that also has a distribution.

Sometimes, it is quite difficult if we directly generate a random vector $X\sim f_X(x)$, but the augmented vector $(X, Z) ^⊤\sim f_{(X,Z)}(x, z)$ is relatively easy to generate such as Box-Muller algorithm. And we can represent $f_X(x)$ as the marginal probability distribution of $f_{(X,Y)}(x,y)$ in integral form $$\int_{\mathbb{R}}f_{(X,Z)}(x,z) \mathrm{d}z.$$

It is Khintchine’s (1938) theorem that shows how to mix the distributions.

$\color{aqua}{\text{Thanks to Professor Tian Guoliang(Gary) in SUSTech, who brought me to computational statistics.}}$5

More information on probability can be founded in The Probability web.

Bayes' Theorem

Bayes theorem is the foundation of Bayesian statistics in honor of the statistician Thomas Bayes 6.

Conditional Probability

If the set $A$ is the subset of $B$, i.e. $A\subset B$, we know that if $x\in A$, $x\in B$. We can say if $A$ happened, the event $B$ must have happened. However, if $B$ happened, what is probability when $A$ happened? It should be larger than the probability of $A$ when $B$ did not happened and it is also larger than the probability of $A$ when the events including $B$ happened. We know that $A\bigcap B=A$ when $A$ is the subset of $B$.

Definition: Supposing $A, B\in \Omega$ and $P(B) > 0$, the conditional probability of $A$ given $B$(denoted as $P(A|B))$ is $$ P(A|B)=\frac{P(A\bigcap B)}{P(B)}.$$

The vertical bar $|$ means that the right one is given or known and is parameter rather than variable.

Here is a visual explanation.

Definition: If $P(A\bigcap B)= P(A)P(B)$, we call the event $A$ and $B$ are statistically independent.

From the definition of conditional probability, it is obvious that:

  • $P(B)=\frac{P(A\bigcap B)}{P(A|B)}$
  • $P(A\bigcap B)=P(A|B)P(B)$;
  • $P(A\bigcap B)=P(B|A)P(A)$.

Thus

  • $P(A|B)P(B)=P(B|A)P(A)$,
  • $P(A|B)=\frac{P(B|A)P(A)}{P(B)}=P(B|A) \frac{P(A)}{P(B)}$,
  • $P(B)=\frac{P(B|A)P(A)}{P(A|B}=\frac{P(B|A)}{P(A|B)}P(A)$.

Definition: The conditional distribution function of $Y$ given $X=x$ is the function $F_{Y|X}(y|x)$ given by $$ F_{Y|X}(y|x)=\int_{-\infty}^{x}\frac{f_{(X,Y)}(x,v)}{f_X(x)}\mathrm{d}v=\frac{\int_{-\infty}^{x}f_{(X,Y)}(x,v)\mathrm{d}v}{f_{X}(x)} $$ for the support of $f_X(x)$ and the conditional probability density function of $F_{Y|X}$, written $f_{Y|X}(y|x)$, is given by $$f_{Y|X}(y|x)=\frac{f_{(X,Y)}(x,y)}{f_X(x)}$$ for any $x$ such that $f_X(x)>0$.

Definition: If $X$ and $Y$ are non-generate and jointly continuous random variables with density $f_{X,Y}(x, y)$ then, if $B$ has positive measure, $$ P(X\in A|Y \in B)=\frac{\int_{y\in B}\int_{x\in \color{red}{A}}f_{X,Y}(x,y)\mathbb{d}x\mathbb{d}y}{\int_{y\in B}\int_{x\in \color{red}{\mathbb{R}}}f_{X,Y}(x,y)\mathbb{d}x\mathbb{d}y}.$$ (Chain Rule of Probability) $$ P(x^{(1)},\cdots, x^{(n)})=P(x^{(1)})\prod_{i=2}^{n}P(x^{i}|x^{(1),\cdots, x^{(i-1)}})$$

More content are in wikipedia.

Definition: The event $A$ and $B$ are conditionally independent given $C$ if and only if $$P(A\bigcap B|C)=P(A|C)P(B|C).$$

There are more on joint distribution:

Total Probability Theorem

This is the total probability theorem in Wikipedia.

(Total Probability Theorem) Supposing the events $A_1, A_2, \cdots$ are disjoint in the sample space $\Omega$ and $\bigcup_{i=1}^{\infty}A_i = \Omega$, $B$ is any subset of $\Omega$, we have $$ P(B)=\sum_{i=1}^{\infty}P(B\bigcap A_i)=\sum_{i=1}^{\infty}P(B|A_i)P(A_i).$$

  • For the discrete random variable, the total probability theorem tells that any event can be decomposed to the basic event in the event space.
  • For the continuous random variable, this theorems means that $\int_{\mathbb{B}}f_X(x)\mathrm{d}x=\sum_{i=1}^{\infty}\int_{\mathbb{B}\bigcap\mathbb{A_i}}f_X(x)\mathbb{d}x.$

Bayes' Theorem

(Bayes' Theorem) Supposing the events $A_1, A_2, \cdots$ are disjoint in the sample space $\Omega$ and $\bigcup_{i=1}^{\infty}A_i = \Omega$, $B$ is any subset of $\Omega$, we have $$P(A_i|B)=\frac{P(B|A_i)P(A_i)}{\sum_{i=1}^{\infty}P(B|A_i)P(A_i)}=\frac{P(B|A_i)P(A_i)}{P(B)}.$$

  • The probability $P(A_i)$ is called prior probability of event $A_i$ and the conditional probability $P(A_i|B)$ is called posterior probability of the event $A_i$ in Bayesian statistics.
  • For any $A_i$, $P(A_i|B)\propto, P(B|A_i)P(A_i)$ and $P(B)$ is the normalization constant as the sum of $P(B|A_i)P(A_i)$.
Thomas Bayes, 1702-1761
Thomas Bayes

There are some related links:

Inverse Bayes' Formula

The joint pdf of the random variables $X$ and $Y$ can be expressed as $$ f_{(x,y)}(x,y)=f_{X|Y}(x|y)f_{Y}(y)=f_{Y|X}(y|x)f_{X}(x). $$ in some proper conditions. Thus we get by division $$f_{Y}(y)=\frac{f_{Y|X}(y|x)f_{X}(x)}{f_{X|Y}(x|y)} \tag 1.$$

Integrating this identity with respect to $y$ on support of $f_{Y}(y)$, we immediately have the point-wise formula as shown below $$f_{X}(x)={\int_{f_{X|Y}(x|y)\neq {0}}\frac{f_{Y|X}(y|x)}{f_{X|Y}(x|y)}\mathbb{d}y}^{-1} \tag 2.$$ Now substitute (2) into (1), we obtain the dual form of IBF for $f_Y(y)$ and hence by symmetry we obtain the function-wise formula of $f_Y(y)$ at $y_0$ as shown in (3), or the sampling formula in (4) when the normalizing constant is omitted. $$\begin{align} f_{X}(x) &={\int_{f_{Y|X}(y|X)\neq {0}}\frac{f_{X|Y}(x|y_0)}{f_{Y|X}(y_0|x)}\mathbb{d}x}^{-1}\frac{f_{X|Y}(x|y_0)}{f_{Y|X}(y_0|x)} \tag 3 \ &\propto \frac{f_{X|Y}(x|y_0)}{f_{Y|X}(y_0|x)} \tag 4 \end{align}$$

The Inventor of IBF
Mr Kaing

$\color{teal}{\text{Professor Tian taught me this part.}}$5

What determines a distribution?

The cumulative density function (CDF) or probability density function(pdf) is roughly equal to random variable, i.e. one random variable is always attached with CDF or pdf. However, what we observed is not the variable itself but its realization or sample.

  • In theory, what properties do some CDFs or pdfs hold? For example, are they all integrable?
  • In practice, the basic question is how to determine the CDF or pdf if we only observed some samples?

Expectation, Variance and Entropy

Expectation and variance are two important factors that characterize the random variable.

The expectation of a discrete random variable is defined as the weighted sum.

Definition: For a discrete random variable $X$, of which the range is ${x_1,\cdots, x_{\infty}}$, its (mathematical) expectation $\mathbb{E}(X)$ is defined as $\mathbb{E}(X)=\sum_{i=1}^{\infty}x_i P(X=x_i)$.

The expectation of a discrete random variable is a weighted sum. Average is one special expectation with equiprob, i.e. $P(X=x_1)=P(X=x_2) = \cdots = P(X = x_i) = \cdots \forall i$.

The expectation of a continuous random variable is defined as one special integration.

Definition: For a continuous random variable $X$ with the pdf $f(x)$, if the integration $\int_{-\infty}^{\infty}|x|f(x)\mathrm{d}x$ exists, the value $\int_{-\infty}^{\infty} xf(x)\mathrm{d}x$ is called the (mathematical) expectation of $X$, which is often denoted as $\mathbb{E}(X)$.

Note that $\color{lime}{NOT}$ all random variables have expectation. For example, standard Cauchy distribution $$f_X(x)=\frac{1}{\pi(1+x^2)}$$ is undefined.

The expectation is the center of the probability density function in many cases. What is more, $$ \arg\max_{b}\mathbb{E}(X-b)^2=\mathbb{E}(X) $$
which implies that $\mathbb{E}(X)$ is the most likeliest to appear in expectation.

Definition: Now suppose that X is a random vector $X = (X_1, \cdots, X_d )$, where $X_j$, $j = 1, \cdots, d,$ is real-valued. Then $\mathbb{E}(X)$ is simply the vector $$(\mathbb{E}(X_1), \cdots , \mathbb{E}(X_d))$$ where $\mathbb{E}(X_i)=\int_{\mathbb{R}}x_if_{X_i}\mathrm{d}x_i\forall i\in{1,2, \cdots, d}$ and $f_{X_i}(x_i)$ is the marginal probability density function of $X_i$.

Definition: If the random variable has finite expectation $\mathbb{E}(X)$, then the expectation of $(X-\mathbb{E}(X))^2$ is called the variance of $X$ (denoted as $Var(X)$), i.e. $\sum_{i=1}^{\infty}(x_i-\mathbb{E}(X))^2P(X=x_i)$ for discrete random variable and $\int_{-\infty}^{\infty}(x-\mathbb{E}(X))^2f_X(x)\mathrm{d}x$ for continuous random variable.

It is obvious that $$Var(X)=\int_{\mathbb{R}}(x-\mathbb{E}(X))^2f_X(x)\mathrm{d}x=\int_{\mathbb{X}}(x-\mathbb{E}(X))^2f_X(x)\mathrm{d}x$$ where the set $\mathbb{X}$ is the support of $X$.

Definition: In general, let $X$ be a random variable with pdf $f_X(x)$, the expectation of the random variable $g(X)$ is equal to the integration $\int_{\mathbb{R}}g(x)f_X(x)\mathrm{d}x$ if it exists.

In analysis, the expectation of a random variable is the integration of some functions.

Definition: The conditional expectation of $Y$ given $X$ can be defined as $$\Psi(X)=\mathbb{E}(Y|X)=\int_{\mathbb{R}} yf_{Y|X}(y|x)\mathrm{d}y.$$

It is a parameter-dependent integral, where the parameter $x$ can be considered as fixed constant. See the content in Calculus II.

Tower rule Let $X$ be random variable on a sample space $\Omega$, let the events $A_1, A_2, \cdots$ are disjoint in the sample space $\Omega$ and $\bigcup_{i=1}^{\infty}A_i = \Omega$, $B$ is any subset of $\Omega$, $\mathbb{E}(X)=\sum_{i=1}^{\infty}\mathbb{E}(X|A_i)P(A_i)$. In general, the conditional expectation $\Psi(X)=\mathbb{E}(Y|X)$ satisfies $\mathbb{E}(\Psi(X))=\mathbb{E}(Y).$

The probability of an event can be expressed as the expectation, i.e.

Probability as Integration
$P(x\in A)= \int_{\mathbb{R}}\mathbb{I}_{A}f_X(x)\mathbb{d}x$

where $$ \mathbb{I}_{A}=\begin{cases} 1, & \text{if $x\in A$}\ 0, & \text{otherwise}\end{cases}.
$$ It is called as the indictor function of $A$.

Definition: The Shannon entropy is defined as

  • $$H=-\sum_{i=1}^{\infty}P(X=x_i){\ln}P(X=x_i)$$ for the discrete random variable $X$ with the range ${x_1,\cdots, x_n}$ with the convention $P(X=x)=0$ that $P(X=x){\ln}{\frac{1}{P(X=x)}}=0$ and
  • $$H=\int_{\mathbb{X}}{\ln}(\frac{1}{f_X(x)})f_X(x)\mathbb{d}x$$ for the continuous random variable $X$ with the support $\mathbb{X}$.

The Shannon entropy is often related to $\color{lime}{finite}$ state discrete random variable, i.e. $\color{teal}{n< \infty}$ and the value of random variable is not involved in its entropy.

Claude Elwood Shannon, 1916-2001
Visual information

Moment and Moment Generating Function

In calculus, we know that some proper functions can be extended as a Taylor series in a interval.

Moment is a specific quantitative measure of the shape of a function.

Definition: The $n$-th moment of a real-valued continuous function $f_X(x)$ of a real variable about a value $c$ is $$\mu_{n} =\int_{x\in\mathbb{R}}(x-c)^n f_X(x)\mathbb{d}x.$$

And the constant $c$ always take the expectation $\mathbb{E}(X)$ or $0$.

Definition: Moment generating function of a random variable $X$ is the expectation of the random variable of $e^{tX}$, i.e.

Moment generating function
$M_X(t)=\int_{\mathbb{R}}e^{tx}f_X(x)\mathbb{d}x$ for continuous random variable
$M_{X}(t)=\sum_{i=1}^{\infty}e^{tx_{i}}P(x=x_i)$ for discrete random variable

It is Laplace transformation applied to probability density function. And it is also related with cumulants.

Pierre-Simon Laplace French 1749-1827
More pictures

Sampling Methods

There are some related links in web:

Sampling from Discrete Distribution

(Inverse transform technique) Let $F$ be a probability cumulative function of a random variable taking non-negative integer values, and let $U$ be uniformly distributed on interval $[0, 1]$. The random variable given by $X=k$ if and only if $F(k-1)<U<F(k)$ has the distribution function $F$.

Sampling from Categorical Distribution

The categorical distribution (also called a generalized Bernoulli distribution, multinoulli distribution) is a discrete probability distribution that describes the possible results of a random variable that can take on one of K possible categories, with the probability of each category separately specified.

The category can be represented as one-hot vector, i.e. the vector $(1,0,\cdots, 0)$ is referred as the first category and the others are as similar as it. This representation is of some advantages:

  1. Each category is identified by its position and equal to each other in norm;
  2. The one-hot vectors can not be compared as the real number in value;
  3. The probability mass function of the K categories distribution can be written in a compact form - $P(\mathrm{X})=[p_1,p_2, \cdots, p_K]\cdot \mathrm{X}^T$, where
    • The probability $p_i \geq 0, \forall i\in [1,\cdots, K]$ and $\sum_{i=1}^{K}p_i=1$;
    • The random variable $\mathrm{X}$ is one-hot vector and $\mathrm{X}^T$ is the transpose of $X$.

Sampling it by inverse transform sampling:

  1. Pick a uniformly distributed number between 0 and 1.
  2. Locate the greatest number in the CDF whose value is less than or equal to the number just chosen., i.e. $F^{-1}(u)=inf{x: F(x) \leq u}$.
  3. Return the category corresponding to this CDF value. See more on Categorical distribution.

$\color{olive}{\text{The categorical variable cannot be ordered, how to compute the CDF?}}$

Sampling from Continuous Distribution

Direct Methods

(Inverse transform technique) Let $F$ be a probability cumulative function of a continuous random variable, and let $U$ be uniformly distributed on interval $[0, 1]$. The random variable $X=F^{-1}(U)$ has the distribution function $F$.

Khintchine’s (1938) theorem: Suppose the random variable $X$ with density given by $$ f_{X}(x)=\int_{x}^{\infty}z^{-1}f_Z(z)\mathrm{d}z\tag 0 $$ or This mixture can be represented equivalently by $$ \begin{align} Z &\sim f_Z(z), z > 0 &\text{and} \tag 1\ X|(Z=z) & \sim Uinf(0,z). \tag 2\
\end{align} $$ Hence $\frac{X}{Z}|(Z=z)=\frac{X}{z}|(Z=z)\sim,Unif(0,1)$ not depending on $z$, so that $$ \begin{align} \frac{X}{Z}|(Z=z) =\frac{X}{z}|(Z=z) &\sim,Unif(0,1) \ \frac{X}{Z}\stackrel{d}=U &\sim Unif(0,1) \ X & =ZU \tag 3 \end{align} $$ and $U$ and $Z$ are mutually independent.

If $\nabla f_X(x)$ exists and $f_X(\infty)=0$, we can obtain the following equation by Newton-Leibiniz's theorem $$f_X(x)=-\int_{x}\nabla f_X(z)\mathrm{d}z \tag 4$$ and comparing (4) and (0), it is obvious: $\nabla f_X(z)=-z^{-1}f_Z(z)$.

See more information on On Khintchine's Theorem and Its Place in Random Variate Generation and Reciprocal symmetry, unimodality and Khintchine’s theorem.

Rejection sampling

The rejection sampling is to draw samples from a distribution with the help of a proposal distribution.

The algorithm (used by John von Neumann and dating back to Buffon and his needle) to obtain a sample from distribution $X$ with density $f$ using samples from distribution $Y$ with density $g$ is as follows:

  • Obtain a sample $y$ from distribution $Y$ and a sample $u$ from $\mathrm{Unif}(0,1)$(the uniform distribution over the unit interval).
  • Check whether or not $u<f(y)/Mg(y)$.
    • If this holds, accept $y$ as a sample drawn from $f$;
    • if not, reject the value of $y$ and return to the sampling step.

The algorithm will take an average of $M$ iterations to obtain a sample. Ziggural algorithm is an application of rejection sampling to draw samples from Gaussian distribution.

Adaptive rejection sampling

Construction of an envelope function is particularly straightforward for cases in which $p(z$ is log concave, in other words when $\ln p(z)$ has derivatives that are nonincreasing functions of ${z}$. The function $\ln p(z)$ and its gradient are evaluated at some initial set of grid points, and the intersections of the resulting tangent lines are used to construct the envelope function. Next a sample value is drawn from the envelope distribution. This is straightforward because the log of the envelope distribution is a succession of linear functions, and hence the envelope distribution itself comprises a piecewise exponential distribution of the form $$ q(z) = k_i \lambda_i \exp(-{\lambda}i (z-z{i-1}), z_{i-1}< z \leq z_{i}. $$

John von Neumann, 1903-1957

Sampling-importance-resampling

It is also called SIR method in short. As name shown, it consists of two steps: sampling and importance sampling. The SIR method generates an approximate i.i.d. sample of size $m$ from the target density $f(x),x\in \mathbb{X}\subset\mathbb{R}^n.$.

The SIR without replacement is as following:

  1. Draw $X^{(1)},X^{(2)},\cdots,X^{(J)}$ independently from the proposal density $g(\cdot)$.
  2. Select a subset ${X^{(k_i)}}{i=1}^{m}$ from ${X^{(i)}}{i=1}^{J}$ via resampling without replacement from the discrete distribution ${\omega_i}_{i=1}^{J}$
    • where $w_i=\frac{f(X^{(i)})}{g(X^{(i)})}$ and $\omega_i=\frac{w_i}{\sum_{i=1}^{n}w_i}$.

The Conditional Sampling Method

The conditional sampling method due to the prominent Rosenblatt transformation is particularly available when the joint distribution of a $d$ vector is very difficult to generate but one marginal distribution and $d-1$ univariate conditional distributions are easy to simulate.

It is based on the chain rule of probability: $$f(x)=f(x_d)\prod_{i=1}^{d-1}f_{k}( x_k |x_{k+1}, x_{k+2},\cdots, x_d )$$ where $x=(x_1,x_2,\cdots, x_d)$ and $f(x)$ is the probability density function.

To generate $X$ from $f(x)$, we only need to generate $x_d$ from the marginal density $f_d(x_d)$, then to generate $x_k$ sequentially from the conditional density $f_k(x_k|x_{k+1}, x_{k+2}, \cdots, x_d)$.

The Vertical Density Representation Method

Law of Large Number

The law of large number provides theoretical guarantee to estimate the expectation of distributions from the samples.

(Strong law of large numbers): Let $X_1,X_2,\dots$ be a sequence of independently identically distributed (i.i.d.) random variables (r.v.s) with expectation $\mu$. Consider the sum: $$ \bar{X}_N = X_1 + X_2 + \cdots + X_N. $$

Then as $N\to\infty$, $$ P(\lim_{N\to\infty}\bar{X}_N=\mu)=1 $$ i.e. $$ \bar{X}_N\stackrel{a.s.}\to\mu. $$ See more on Wikipedia.

Central Limit Theorem

Lindeberg–Lévy CLT. Suppose ${X_1, X_2,\cdots}$ is a sequence of i.i.d. random variables with $E[X_i] = \mu$ and $Var[X_i] = \sigma^2 &lt; \infty$. Then as $n$ approaches infinity, the random variables $\sqrt{n}(\bar{X}_n − \mu)$ converge in distribution to a normal $N(0,\sigma^2)$: $$ \sqrt{n}(\bar{X}_n − \mu)\stackrel{d}\to N(0,\sigma^2). $$ The Wikipedia page has more information. https://www.datasciencecentral.com/profiles/blogs/new-perspective-on-central-limit-theorem-and-related-stats-topics

Multivariate Normal Distribution

Definition: A random variable $\cal{X}=(X_1,X_2,\cdots, X_n)^{T}$ is multivariate normal if any linear combination of the random variable $X_1,X_2,\cdots, X_n$ is normally distributed, i.e. $$a_1X_1+a_2X_2+\cdots+a_nX_n=\vec{a}^T\cal{X}\sim{N(\mu,\sigma^2)}$$ where $\vec{a}=(a_1,a_2,\cdots,a_n)^{T}$ and $\mu &lt; \infty$, $0&lt; \sigma^2&lt;\infty$.

If $\cal{X}$ is multivariate normal, it also has a mean vector $\mu$ such that $$\mu=(\mathbb{E}(X_1),\mathbb{E}(X_2),\cdots, \mathbb{E}(X_n))$$ where $\mathbb{E}(X)$ is the expectation(or mean) of the random variable. The random vector $\cal{X}$ also has a covariance matrix $\Sigma$ satisfying $$\Sigma_{ij}=Cov(X_i,X_j)$$ where $Cov(X_i,X_j)=\mathbb{E}[(X_i-\mathbb{E}(X_i))(X_j-\mathbb{E}(X_j))]$ is the covariance of the random variables $X_i$ and $X_j$.

The probability density function of a multivariate normal random vector $\cal{X}$ is given by $$p(\vec{x}|\mu,\Sigma)=\frac{1}{(2\pi)^{\frac{n}{2}}|\Sigma|^{\frac{1}{2}}}exp(-(\vec{x}-\mu)^{T}\Sigma^{-1}(\vec{x}-\mu))$$ where $exp(x)=e^{x}$ and $\vec{x}$ is a realization of $\cal{X}$, $|\cdot|$ is determinant. Because $\cal{X}$ is completely defined by $\mu$ and $\Sigma$, it is convenient to write $$\cal{X}\sim N(\mu,\Sigma).$$

Multivariate Normal Distribution

Stochastic Processes

Stochastic processes focus on the independent random variables. For more information see the Wikipedia page.

Poisson Process

Poisson process is named after the statistician Siméon Denis Poisson.

Definition:The homogeneous Poisson point process, when considered on the positive half-line, can be defined as a counting process, a type of stochastic process, which can be denoted as ${N(t),t\geq 0}$. A counting process represents the total number of occurrences or events that have happened up to and including time $t$. A counting process is a Poisson counting process with rate $\lambda &gt;0$ if it has the following three properties:

  • $N(0)=0$;
  • has independent increments, i.e. $N(t)-N(t-\tau)$ and $N(t+\tau)-N(t)$ are independent for $0\leq\tau\leq{t}$; and
  • the number of events (or points) in any interval of length $t$ is a Poisson random variable with parameter (or mean) $\lambda t$.
Siméon Denis Poisson
Siméon Denis Poisson
Poisson distribution

It is a discrete distribution with the pmf: $$ P(X=k)=e^{-\lambda}\frac{\lambda^k}{k!}, k\in{0,1,\cdots}, $$ where $k!$ is the factorial of $k$, i.e. $k!=k\times{(k-1)}\times{(k-2)}\cdots\times{2}\times{1}$. See more in Wikipedia page.

Markov Chain

Markov chain is a simple stochastic process in honor of Andrey (Andrei) Andreyevich Marko.

Definition: The process $X$ is a Markov chain if it satisfies the Markov condition: $$P(X_{n}=x_{n}|X_{1}=x_{1},\cdots,X_{n-1}=x_{n-1})=P(X_{n}=x_{n}|X_{n-1}=x_{n-1})$$ for all $n\geq 1$.

People introduced to Markov chains through a typical course on stochastic processes have usually only seen examples where the state space is finite or countable. If the state space is finite, written ${x_1,\cdots,x_n}$, then the initial distribution can be associated with a vector $\lambda =(\lambda_1,\cdots, \lambda_n)$ defined by $$ P(X=x_i)=\lambda_i\quad i=1,\cdots, n, $$ and the transition probabilities can be associated with a matrix $P$ having elements $p_{i j}$ defined by $$ P(X_{n+1}=x_i|X_n=x_j)=p_{i j}\quad i=1,\cdots, n,\text{and}, j=1,\cdots,n. $$ When the state space is countably infinite, we can think of an infinite vector and matrix. But most Markov chains of interest in MCMC have uncountable state space, and then we cannot think of the initial distribution as a vector or the transition probability distribution as a matrix. We must think of them as an unconditional probability distribution and a conditional probability distribution.

Stationarity

A stochastic process is stationary if for every positive integer $k$ the distribution of the k-tuple $$(X_{n+1},X_{n+2}, \cdots , X_{n+k})$$ does not depend on $n$. A Markov chain is stationary if it is a stationary stochastic process. In a Markov chain, the conditional distribution of $(X_{n+2}, \cdots , X_{n+k})$ given $X_{n+1}$ does not depend on $n$. It follows that a Markov chain is stationary if and only if the marginal distribution of $X_n$ does not depend on $n$.

An initial distribution is said to be stationary or invariant or equilibrium for some transition probability distribution if the Markov chain specified by this initial distribution and transition probability distribution is stationary. We also indicate this by saying that the transition probability distribution preserves the initial distribution.

Stationarity implies stationary transition probabilities, but not vice versa.

Reversibility

A transition probability distribution is reversible with respect to an initial distribution if, for the Markov chain $X_1, X_2, \cdots$ they specify, the distribution of pairs $(X_i, X_{i+1})$ is exchangeable.

A Markov chain is reversible if its transition probability is reversible with respect to its initial distribution. Reversibility implies stationarity, but not vice versa. A reversible Markov chain has the same laws running forward or backward in time, that is, for any $i$ and $k$ the distributions of $(X_{i+1}, \cdots , X_{i+k})$ and $(X_{i+k}, \cdots , X_{i+1})$ are the same.

Andrey (Andrei) Andreyevich Markov,1856-1922
his short biography in .pdf file format
http://arogozhnikov.github.io/2016/12/19/markov_chain_monte_carlo.html

Markov Chain Monte Carlo

  1. http://www.mcmchandbook.net/
  2. http://www.cs.princeton.edu/courses/archive/spr06/cos598C/papers/AndrieuFreitasDoucetJordan2003.pdf
  3. https://math.uchicago.edu/~shmuel/Network-course-readings/MCMCRev.pdf
  4. https://skymind.ai/wiki/markov-chain-monte-carlo
  5. https://chi-feng.github.io/mcmc-demo/app.html#HamiltonianMC,banana
  6. http://probability.ca/jeff/ftpdir/lannotes.4.pdf
  7. https://www.seas.harvard.edu/courses/cs281/papers/andrieu-defreitas-doucet-jordan-2002.pdf

Importance sampling

Let $\vec{X}$ be a random vector, and we wan to compute the integration or the expectation $$\mu=\mathbb{E}(f(\vec{X}))=\int_{\mathbb{R}}f(\vec{X})p({X})\mathrm{d}X,$$ where $p({X})$ is the probability density function of $\vec{X}$. We can rewrite the expectation $$\mu=\int_{\mathbb{R}}\frac{f(\vec{X})p(X)}{q(X)}q(X)\mathbb{d}X=\mathbb{E}_{q}(\frac{f(\vec{X})p(X)}{q(X)}),$$ where $q(X)$ is another probability density function and $q(X)=0$ implies $f(\vec{X})p(X)=0$.

The algorithm of importance sampling is as following:

  1. Generate samples $\vec{X}_1,\vec{X}_2,\cdots,\vec{X}_n$ from the distribution $q(X)$;
  2. Compute the estimator $\hat{\mu}{q} =\frac{1}{n}\sum{i=1}^{n}\frac{f(\vec{X_i})p(\vec{X_i})}{q(\vec{X_i})}$

See more in

Statistical Estimation

It is based on the assumption that the data are independently identically distributed (IID).

Definition: Any function of sample $W(X_1,X_2,\cdots, X_n)$ is called a point estimator.

$\color{red}{Note}$: A point estimator is a random variable or statistic.

The Method of Moments Estimator

The moments method is to estimate the moments of probability distribution function via sample moments.

The $n$th sample moment is defined as $$ \hat{\mu}{n}=\frac{1}{L}\sum{i=1}^{L}X_{i}^{n}. $$ The method of moments estimator $\hat{\theta}L$ is defined to be the value of $\theta$ such that $$ \mu{j}(\hat{\theta}L)=\hat{\mu}{j},\forall j\in{1,2,\cdots,k}. $$ By solving the above system of equations for $\hat{theta}$ in the term of $\hat{\mu}_{j}$, we will obtain the method of moments estimator.

See more on Wikipedia.

Pafnuty Chebyshev,1821-1894
Some details on his biography

Maximum Likelihood Estimation

Maximum likelihood estimation is a method to estimate the parameters of statistical independent identical distributed samples. It is based on the belief that what we observed is what is most likely to happen. Let us start with an example.

Supposing $X_1,X_2,\cdots, X_n\stackrel{i.i.d.}{\sim}\mathrm{N}(\mu,\sigma^2)$, we can get the joint distribution of their samples ${x_1,x_2,\cdots, x_n}$: $$ L(\theta|x_1,\cdots, x_n)=\prod_{i=1}^{n}\frac{1}{\sqrt{2\pi\sigma^2}}e^{-\frac{(x_i-\mu)^2}{2\sigma^2}}. $$ The independency of the random variables can directly infer their joint probability is the product of each probability.

We want to find the optimal parameters $\hat{\mu},\hat{\sigma}^2$ of the probability density function: $$ \arg\max_{\theta}L(\theta|x_1,\cdots, x_n)=\arg\max_{\theta}\ell(\theta|x_1,\cdots,x_n) $$ where the log-likelihood function $\ell(\theta|x_1,\cdots,x_n)$ is defined as the logarithm of likelihood function, i.e. $$ \arg\max_{\mu,\sigma^2} \ell(\mu,\sigma^2|x_1,x_2,\cdots,x_n)=\arg\max_{\mu,\sigma^2}\sum_{i=1}^{n}{-\frac{(x_i-\mu)^2}{2\sigma^2}}-n\log{\sqrt{2\pi\sigma^2}}. $$ Setting $\frac{\partial\ell}{\partial{\mu}}=0$ and $\frac{\partial\ell}{\partial{\sigma^2}}=0$, we can get $\hat\mu=\bar{x}=\frac{\sum_{i=1}^{n}x_i}{n}$ and $\hat\sigma^2=\frac{\sum_{i=1}^{n}(x_i-\mu)^2}{\bar{x}}$ as their maximum likelihood estimation.

Definition: For each sample point $X$, let $\hat{\theta}(X)$ be a parameter value at which $L(\theta|X)$ attains its maximum as a function of $X$ , with $X$ held fixed. A maximum likelihood estimator (MLE) of the parameter $\theta$ based on a sample $X$ is $\hat{\theta}(X)$.

One limitation of maximum likelihood estimation is that it does not work for the mixture distribution. For example, it is impossible to estimate this mixture density function $$p(x,\alpha,\sigma)=\frac{1}{2\sigma\sqrt{2\pi}}\exp(-\frac{(x-\alpha)^2}{2\sigma^2})+\frac{1}{2\sqrt{2\pi}}\exp(-\frac{x^2}{2})$$ where the parameter $\alpha,\sigma$ is unknown.

We can see more in the Wikipedia page.

Bayesian Estimation of Parameters

Bayesian inference is usually carried out in the following way7.

  1. We choose a probability density function $f(\theta)$ - called the prior distribution- that express our degrees of beliefs on a parameter of interest $\theta$ before we see any data.
  2. We choose a statistical model $f(x|\theta)$ that reflects our beliefs about $x$ given $\theta$.
  3. After observing data $X_1, X_2,\cdots, X_n$, we update our beliefs and form the posterior distribution $f(\theta|X_1, X_2,\cdots, X_n)$.

For example, the Bayesian version of maximum likelihood estimation will find the parameters $\theta$ that maximizes the posterior $f(\theta|X)f(\theta)$ where $f(\theta|X)$ is the likelihood function of samples, i.e. $f(\theta|X)=L(\theta|X_1,\dots,X_n)$. The Bayesian estimator is $$ \hat{\theta}=\arg{\max}_{\theta} f(\theta|X)f(\theta). $$

More related links on Bayesian methods:

Confidence Interval Estimation

The pivot quantity is the core.

Definition: A $1-\alpha$ confidence interval for a parameter $\theta$ an interval $C_n = (a, b)$ where $a = a(X_1,\cdots,X_n)$ and $b = b(X_1,\cdots,X_n)$ are functions of the data ${X_1,\cdots,X_n}$ such that $$ P_{\theta}(\theta\in C_n)\geq 1- \theta. $$

Note: $C_n$ is random and $\theta$ isfixed! If $\theta$ is a vector then we use a confidence set (such a sphere or an ellipse) instead of an interval. An interpretation is this7.

On day 1, you collect data and construct a 95 percent confidence interval for a parameter $\theta_1$. On day 2, you collect new data and construct a 95 per cent confidence interval for an unrelated parameter $\theta_2$. On day 3, you collect new data and construct a 95 percent confidence interval for an unrelated parameter $\theta_3$. You continue this way constructing confidence intervals for a sequence of unrelated parameters $\theta_2,\theta_2,\cdots$. Then 95 percent your intervals will trap the true parameter value. There is no need to introduce the idea of repeating the same experiment over and over.

See the thereby links for more information:

Goodness of Fit

$\color{teal}{\text{Thanks to Professor Tian Guoliang(Gary) again.} }$^[6]

Numerical Optimization

IN A Few Useful Things to Know about Machine Learning, Pedro Domingos put up a relation: $\color{aqua}{LEARNING = REPRESENTATION + EVALUATION + OPTIMIZATION}.$

  • Representation as the core of the note is the general (mathematical) model that computer can handle.
  • Evaluation is criteria. An evaluation function (also called objective function, cost function or scoring function) is needed to distinguish good classifiers from bad ones.
  • Optimization is to aimed to find the parameters taht optimizes the evaluation function, i.e. $$ \arg\min_{\theta} f(\theta)={\theta^|f(\theta^)=\min f(\theta)},\text{or},\arg\max_{\theta}f(\theta)={\theta^|f(\theta^)=\max f(\theta)}. $$

The objective function to be minimized is also called cost function.

Evaluation is always attached with optimization; the evavluation which cannot be optimized is not a good evaluation in machine learning.

Gradient Descent and More

Each iteration of a line search method computes a search direction $p^{k}$ and then decides how far to move along that direction. The iteration is given by $$ x^{k+1}=x^{k}+\alpha_{k}p^{k}\tag{Line search} $$ where the positive scalar $\alpha^{k}$ is called the step length. The success of a line search method depends on effective choices of both the direction $p^{k}$ and the step length $\alpha_{k}$.

$\color{lime}{Note}$: we use the notation $x^{k}$ and $\alpha_k$ to represent the $k$th iteration of the vector variables $x$ and $k$th step length, respectively. Most line search algorithms require pk to be a descent direction—one for which $\left&lt; {p^k},\nabla f_k \right&gt; &lt; 0$ — because this property guarantees that the function $f$ can be reduced along this direction, where $\nabla f_k$ is the gradient of objective function $f$ at the $k$th iteration point $x_k$ i.e. $\nabla f_k=\nabla f(x^{k})$.

Gradient descent and its variants are to find the local solution of the unconstrained optimization problem: $$ \min f(x) $$ where $x\in \mathbb{R}^{n}$.

Its iterative procedure is: $$ x^{k+1}=x^{k}-\alpha_{k}\nabla_{x}f(x^k) $$ where $x^{k}$ is the $k$th iterative result, $\alpha_{k}\in{\alpha|f(x^{k+1})&lt; f(x^{k})}$ and particularly $\alpha_{k}=\arg\min_{\alpha}f(x^{k}-\alpha\nabla_{x}f(x^{k}))$.

Some variants of gradient descent methods are not line search method. For example, the heavy ball method: $$ x^{k+1}=x^{k}-\alpha_{k}\nabla_{x}f(x^k)+\rho_{k}(x^k-x^{k-1}) $$ where the momentum coefficient $\rho_k\in[0,1]$ generally and the step length $\alpha_k$ cannot be determined by line search.

Nesterov accelerated gradient method: $$ \begin{align} x^{k}=y^{k}-\alpha^{k+1}\nabla_{x}f(y^k) \qquad &\text{Descent} \ y^{k+1}=x^{k}+\rho^{k}(x^{k}-x^{k-1}) \qquad &\text{Momentum} \end{align} $$ where the momentum coefficient $\rho_k\in[0,1]$ generally.

Inventor of Nesterov accelerated Gradient
Yurii Nesterov}

Mirror Gradient Method

It is often called mirror descent. It can be regarded as non-Euclidean generalization of projected gradient descent to solve some constrained optimization problems.

Projected Gradient Descent

Projected gradient descent is aimed to solve convex optimization problem with explicit constraints, i.e. $$ \arg\min_{x\in\mathbb{S}}f(x) $$ where $\mathbb{S}\subset\mathbb{R}^n$. It has two steps: $$ \begin{align} z^{k+1} = x^{k}-\alpha_k\nabla_x f(x^{k}) &\qquad \text{Gradient descent}\ x^{k+1} = Proj_{\mathbb{S}}(z^{k+1})=\arg\min_{x\in \mathbb{S}}|x-z^{k+1}|^{2} &\qquad\text{Projection} \end{align} $$

Mirror descent

Mirror descent can be regarded as the non-Euclidean generalization via replacing the $\ell_2$ norm or Euclidean distance in projected gradient descent by Bregman divergence.

Bregman divergence is induced by convex smooth function $f$: $$ B(x,y)=f(x)-f(y)-\left<\nabla f(y),x-y\right> $$ where $\left&lt;\cdot,\cdot\right&gt;$ is inner product. Especially, when $f$ is quadratic function, the Bregman divergence induced by $f$ is $$ B(x,y)=x^2-y^2-\left<2y,x-y\right>=x^2+y^2-2xy=(x-y)^2 $$ i.e. the Euclidean distance. A wonderful introduction to Bregman divergence is Meet the Bregman Divergences by Mark Reid at http://mark.reid.name/blog/meet-the-bregman-divergences.html.

It is given by: $$ \begin{align} z^{k+1} = x^{k}-\alpha_k\nabla_x f(x^{k}) &\qquad \text{Gradient descent}\ x^{k+1} = \arg\min_{x\in\mathbb{S}}B(x,z^{k+1}) &\qquad\text{Bregman projection} \end{align}. $$ One special method is called entropic mirror descent when $f=e^x$ and $\mathbb{S}$ is simplex.

See more on the following link list.

Variable Metric Methods

Newton's Method

NEWTON’S METHOD and QUASI-NEWTON METHODS are classified to variable metric methods.

It is also to find the solution of unconstrained optimization problems, i.e. $$\min f(x)$$ where $x\in \mathbb{R}^{n}$.

Newton's method is given by $$ x^{k+1}=x^{k}-\alpha^{k+1}H^{-1}(x^{k})\nabla_{x},{f(x^{k})} $$ where $H^{-1}(x^{k})$ is inverse of the Hessian matrix of the function $f(x)$ at the point $x^{k}$. It is called Newton–Raphson algorithm in statistics. Especially when the log-likelihood function $\ell(\theta)$ is well-behaved, a natural candidate for finding the MLE is the Newton–Raphson algorithm with quadratic convergence rate.

The Fisher Scoring Algorithm

In maximum likelihood estimation, the objective function is the log-likelihood function, i.e. $$ \ell(\theta)=\sum_{i=1}^{n}\log{P(x_i|\theta)} $$ where $P(x_i|\theta)$ is the probability of realization $X_i=x_i$ with the unknown parameter $\theta$. However, when the sample random variable ${X_i}_{i=1}^{n}$ are not observed or realized, it is best to replace negative Hessian matrix (i.e. -$\frac{\partial^2\ell(\theta)}{\partial\theta\partial\theta^{T}}$) of the likelihood function with the
observed information matrix: $$ J(\theta)=\mathbb{E}(\color{red}{\text{-}}\frac{\partial^2\ell(\theta)}{\partial\theta\partial\theta^{T}})=\color{red}{-}\int\frac{\partial^2\ell(\theta)}{\partial\theta\partial\theta^{T}}f(x_1, \cdots, x_n|\theta)\mathrm{d}x_1\cdots\mathrm{d}x_n $$ where $f(x_1, \cdots, x_n|\theta)$ is the joint probability density function of $X_1, \cdots, X_n$ with unknown parameter $\theta$.

And the Fisher scoring algorithm is given by $$ \theta^{k+1}=\theta^{k}+\alpha_{k}J^{-1}(\theta^{k})\nabla_{\theta} \ell(\theta^{k}) $$ where $J^{-1}(\theta^{k})$ is the inverse of observed information matrix at the point $\theta^{k}$.

See http://www.stats.ox.ac.uk/~steffen/teaching/bs2HT9/scoring.pdf or https://wiseodd.github.io/techblog/2018/03/11/fisher-information/.

Fisher scoring algorithm is regarded as an example of Natural Gradient Descent in information geometry such as https://wiseodd.github.io/techblog/2018/03/14/natural-gradient/ and https://www.zhihu.com/question/266846405.

Quasi-Newton Methods

Quasi-Newton methods, like steepest descent, require only the gradient of the objective function to be supplied at each iterate. By measuring the changes in gradients, they construct a model of the objective function that is good enough to produce superlinear convergence. The improvement over steepest descent is dramatic, especially on difficult problems. Moreover, since second derivatives are not required, quasi-Newton methods are sometimes more efficient than Newton’s method.8

In optimization, quasi-Newton methods (a special case of variable-metric methods) are algorithms for finding local maxima and minima of functions. Quasi-Newton methods are based on Newton's method to find the stationary point of a function, where the gradient is 0. In quasi-Newton methods the Hessian matrix does not need to be computed. The Hessian is updated by analyzing successive gradient vectors instead. Quasi-Newton methods are a generalization of the secant method to find the root of the first derivative for multidimensional problems. In multiple dimensions the secant equation is under-determined, and quasi-Newton methods differ in how they constrain the solution, typically by adding a simple low-rank update to the current estimate of the Hessian. One of the chief advantages of quasi-Newton methods over Newton's method is that the Hessian matrix (or, in the case of quasi-Newton methods, its approximation) $B$ does not need to be inverted. The Hessian approximation $B$ is chosen to satisfy $$ \nabla f(x^{k+1})=\nabla f(x^{k})+B(x^{k+1}-x^{k}), $$ which is called the secant equation (the Taylor series of the gradient itself). In more than one dimension B is underdetermined. In one dimension, solving for B and applying the Newton's step with the updated value is equivalent to the secant method. The various quasi-Newton methods differ in their choice of the solution to the secant equation (in one dimension, all the variants are equivalent).

BFGS

Natural Gradient Descent

Natural gradient descent is to solve the optimization problem $\min_{\theta} L(\theta)$ by $$ \theta^{(t+1)}=\theta^{(t+1)}-\alpha_{(t)}F^{-1}(\theta^{(t)})\nabla_{\theta}L(\theta^{(t)}) $$ where $F^{-1}(\theta^{(t)})$ is the inverse of Remiann metric at the point $\theta^{(t)}$. And Fisher scoring algorithm is a typical application of Natural Gradient Descent to statistics.
Natural gradient descent for manifolds corresponding to exponential families can be implemented as a first-order method through mirror descent (https://www.stat.wisc.edu/~raskutti/publication/MirrorDescent.pdf).

Originator of Information Geometry
Shun-ichi Amari

Expectation Maximization Algorithm

Expectation-Maximization algorithm, popularly known as the EM algorithm has become a standard piece in the statistician’s repertoire. It is used in incomplete-data problems or latent-variable problems such as Gaussian mixture model in maximum likelihood estimation. The basic principle behind the EM is that instead of performing a complicated optimization, one augments the observed data with latent data to perform a series of simple optimizations.

Let $\ell(\theta|Y_{obs})\stackrel{\triangle}=\log{L(\theta|Y_{obs})}$ denote the log-likelihood function of observed datum $Y_{obs}$。 We augment the observed data $Y_{obs}$ with latent variables $Z$ so that both the complete-data log-likelihood $\ell(\theta|Y_{obs}, Z)$ and the conditional predictive distribution $f(z|Y_{obs}, \theta)$ are available. Each iteration of the EM algorithm consists of an expectation step (E-step) and a maximization step (M-step) Specifically, let $\theta^{(t)}$ be the current best guess at the MLE $\hat\theta$. The E-step is to compute the Q function defined by $$ \begin{align} Q(\theta|\theta^{(t)}) &= \mathbb{E}(\ell(\theta|Y_{obs}, Z)|Y_{obs},\theta^{(t)}) \ &= \int_{Z}\ell(\theta|Y_{obs}, Z)\times f(z|Y_{obs}, \theta^{(t)})\mathrm{d}z, \end{align} $$ and the M-step is to maximize Q with respect to $\theta$ to obtain $$ \theta^{(t+1)}=\arg\max_{\theta} Q(\theta|\theta^{(t)}). $$

Diagram of EM algorithm

Generalized EM Algorithm

Each iteration of the generalized EM algorithm consists of an expectation step (E-step) and a maximization step (M-step) Specifically, let $\theta^{(t)}$ be the current best guess at the MLE $\hat\theta$. The E-step is to compute the Q function defined by $$ \begin{align} Q(\theta|\theta^{(t)}) &= \mathbb{E}(\ell(\theta|Y_{obs}, Z)|Y_{obs},\theta^{(t)}) \ &= \int_{Z}\ell(\theta|Y_{obs}, Z)\times f(z|Y_{obs}, \theta^{(t)})\mathrm{d}z, \end{align} $$ and the another step is to find $\theta$ that satisfies $$ \theta^{(t+1)}\in {\theta|Q(\theta|\theta^{(t+1)} \geq Q(\theta|\theta^{(t)}) }. $$

It is not to maximize the conditional expectation.

See more on the book The EM Algorithm and Extensions, 2nd Edition by Geoffrey McLachlan , Thriyambakam Krishna.

Alternating Direction Method of Multipliers

Alternating direction method of multipliers is called ADMM shortly. It is aimed to solve the following convex optimization problem: $$ \begin{align} \min F(x,y) {&=f(x)+g(y)} \tag {cost function} \ Ax+By &=b \tag{constraint} \end{align} $$ where $f(x)$ and $g(y)$ is convex; $A and $B$ are matrices.

Define the augmented Lagrangian: $$ L_{\mu}(x,y)=f(x)+g(y)+\lambda^{T}(Ax+By-b)+\frac{\mu}{2}{|Ax+By-b|}_{2}^{2}. $$

It is iterative procedure:

  1. $x^{k+1}=\arg\min_{x}L_{\mu}(x,y^{\color{aqua}{k}},\lambda^{\color{aqua}{k}});$
  2. $y^{k+1}=\arg\min_{y} L_{\mu}(x^{\color{red}{k+1}}, y, \lambda^{\color{aqua}{k}});$
  3. $\lambda^{k+1} = \lambda^{k}+\mu (Ax^{\color{red}{k+1}} + By^{\color{red}{k+1}}-b).$

$\color{aqua}{\text{Thanks to Professor He Bingsheng who taught me this.}}$9

Stochastic Gradient Descent

Stochastic gradient descent takes advantages of stochastic or estimated gradient to replace the true gradient in gradient descent. It is stochastic gradient but may not be descent. The name stochastic gradient methods may be more appropriate to call the methods with stochastic gradient. It can date back upto stochastic approximation.

It is aimed to solve the problem with finite sum optimization problem, i.e. $$ \arg\min_{\theta}\frac{1}{n}\sum_{i=1}^{n}f(\theta|x_i) $$ where $n&lt;\infty$ and ${f(\theta|x_i)}{i=1}^{n}$ are in the same function family and ${x_i}{i=1}^{n}\subset \mathbb{R}^{d}$ are constants while $\theta\in\mathbb{R}^{p}$ is the variable vector.

The difficulty is $p$, that the dimension of $\theta$, is tremendous. In other words, the model is overparameterized. And the number $n$ is far larger than $p$ generally, i.e. $n \gg p\gg d$. What is worse, the functions ${f(\theta|x_i)}_{i=1}^{n}$ are not convex in most case.

The stochastic gradient method is defined as $$ \theta^{k+1}=\theta^{k}-\alpha_{k}\frac{1}{m}\sum_{j=1}^{m}\nabla f(\theta^{k}| x_{j}^{\prime}) $$ where $x_{j}^{\prime}$ is stochastically draw from ${x_i}_{i=1}^{n}$ and $m\ll n$.

It is the fact $m\ll n$ that makes it possible to compute the gradient of finite sum objective function and its side effect is that the objective function is not always descent. There is fluctuations in the total objective function as gradient steps with respect to mini-batches are taken.

The fluctuations in the objective function as gradient steps with respect to mini-batches are taken

An heuristic proposal for avoiding the choice and for modifying the learning rate while the learning task runs is the bold driver (BD) method10. The learning rate increases exponentially if successive steps reduce the objective function $f$, and decreases rapidly if an “accident” is encountered (if objective function $f$ increases), until a suitable value is found. After starting with a small learning rate, its modifications are described by the following equation: $$ \alpha_{k+1}= \begin{cases} \rho \alpha_{k}, & {f(\theta^{k+1})< f(\theta^{k})}; \ \eta^n \alpha_{k}, & {f(\theta^{k+1})> f(\theta^{k})} \text{using ${\alpha}_k$}, \end{cases} $$

where $\rho$ is close to 1 such as $\rho=1.1$ in order to avoid frequent “accidents” because the objective function computation is wasted in these cases, $\eta$ is chosen to provide a rapid reduction ($\eta = 0.5$), and $n$ is the minimum integer such that the reduced rate $\eta^n$ succeeds in diminishing the objective function.11

The fact that the sample size is far larger than the dimension of parameter, $n\gg p$, that makes it expensive to compute total objective function $f(\theta)=\sum_{i=1}^{n}f(\theta|{x}i)$. Thus it is not clever to determine the learning rate $\alpha_k$ by line search. And most stochastic gradient methods are to find proper step length $\alpha{k}$ to make it converge at least in convex optimization. The variants of gradient descent such as momentum methods or mirror gradient methods have their stochastic counterparts.

  • It is simplest to set the step length a constant, such as ${\alpha}_k=3\times 10^{-3}, \forall k$.
  • There are decay schemes, i.e. the step length ${\alpha}_k$ diminishes such as ${\alpha}_k=\frac{\alpha}{k}$, where $\alpha$ is constant.
  • And another strategy is to tune the step length adaptively such as AdaGrad, ADAM.

$\color{lime}{PS}$: the step length $\alpha_k$ is called learning rate in machine learning and stochastic gradient descent is also named as increment gradient methods in some case.

See the following links for more information on stochastic gradient descent.

The Differences of Gradient Descent and Stochastic Gradient Descent
The Differences of Stochastic Gradient Descent and its Variants

Regression Analysis and Machine Learning

Regression Analysis

Regression is a method for studying the relationship between a response variable $Y$ and a covariates $X$. The covariate is also called a predictor variable or a feature.

Regression is not function fitting. In function fitting, it is well-defined - $f(x_i)$ is fixed when $x_i$ is fixed; in regression, it is not always so.

Linear regression is the "hello world" in statistical learning. It is the simplest model to fit the datum. We will induce it in the maximum likelihood estimation perspective. See this link for more information https://www.wikiwand.com/en/Regression_analysis.

Ordinary Least Squares

Representation of Ordinary Least Squares

A linear regression model assumes that the regression function $E(Y|X)$ is linear in the inputs $X_1,\cdots, X_p$. They are simple and often provide an adequate and interpretable description of how the inputs affect the output. Suppose that the datum ${(x_i, y_i)}{i=1}^{n}$, $$ {y}{i} = f({x}{i})+{\epsilon}{i}, $$ where the function $f$ is linear, i.e. $f(x)=w^{T}x + b$. Let $\epsilon = y - f(x)$.Then $\mathbb{E}(\epsilon|X) = \mathbb{E}(y - f(x)|x)=0$ and the residual errors ${{\epsilon}{i}|{\epsilon}{i} = {y}{i} - f(x_i)}{i=1}^{n}$ are i.i.d. in standard Gaussian distribution.

By convention (very important!):

  • $\mathrm{x}$ is assumed to be standardized (mean 0, unit variance);
  • $\mathrm{y}$ is assumed to be centered.

For the linear regression, we could assume $\mathrm{x}$ is in Gaussian distribution.

Evaluation of Ordinary Least Squares

The likelihood of the errors are
$$ L(\epsilon_1,\epsilon_2,\cdots,\epsilon_n)=\prod_{i=1}^{n}\frac{1}{\sqrt{2\pi}}e^{-\epsilon_i^2}. $$

In MLE, we have shown that it is equivalent to $$ \arg\max \prod_{i=1}^{n}\frac{1}{\sqrt{2\pi}}e^{-\epsilon_i^2}=\arg\min\sum_{i=1}^{n}\epsilon_i^2=\arg\min\sum_{i=1}^{n}(y_i-f(x_i))^2. $$

Linear Regression and Likelihood Maximum Estimation
<reliawiki.org>

Optimization of Ordinary Least Squares

For linear regression, the function $f$ is linear, i.e. $f(x) = w^Tx$ where $w$ is the parameters to tune. Thus $\epsilon_i = y_i-w^Tx_i$ and $\sum_{i=1}^{n}(y_i-f(x_i))^2=\sum_{i=1}^{n}(y_i - w^Tx_i)^2$. It is also called residual sum of squares in statistics or objective function in optimization theory. In a compact form, $$ \sum_{i=1}^{n}(y_i - w^T x_i)^2=|Y-Xw|^2,\tag 0, $$ where $Y=(y_1,y_2,\cdots, y_n)^T, X=(x_1, x_2,\cdots,x_n)$. Let the gradient of objective function $|Y-Xw|^2$ be 0, i.e. $$ \nabla_{w}{|Y-Xw|^2}=2X^T(Y-Xw)=0,\tag 1, $$ then we gain that $w=(X^TX)^{-1}X^TY$ if possible.

$\color{lime}{Note}$:

  1. the residual error ${\epsilon_i}_{i=1}^{n}$ are i.i.d. in Gaussian distribution;
  2. the inverse matrix $(X^{T}X)^{-1}$ may not exist in some extreme case.

See more on Wikipedia page.

Ridge Regression and LASSO

When the matrix $X^{T}X$ is not inverse, ordinary least squares does not work. And in ordinary least squares, the parameters $w$ is estimated by MLE rather more general Bayesian estimator.

In the perspective of computation, we would like to consider the regularization technique; In the perspective of Bayesian statistics, we would like to consider more proper prior distribution of the parameters.

Ridge Regression As Regularization

It is to optimize the following objective function with parameter norm penalty $$ PRSS_{\ell_2}=\sum_{i=1}^{n}(y_i-w^Tx_i)^2+\lambda w^{T}w=|Y-Xw|^2+\lambda|w|^2,\tag {Ridge}. $$ It is called penalized residual sum of squares. Taking derivatives, we solve $$ \frac{\partial PRSS_{\ell_2}}{\partial w}=2X^T(Y-Xw)+2\lambda w=0 $$ and we gain that $$ w=(X^{T}X+\lambda I)^{-1}X^{T}Y $$ where it is trackable if $\lambda$ is large enough.

LASSO as Regularization

LASSO is the abbreviation of Least Absolute Shrinkage and Selection Operator.

  1. It is to minimize the following objective function： $$ PRSS_{\ell_1}=\sum_{i=1}^{n}(y_i-w^Tx_i)^2+\lambda{|w|}_{1} =|Y-Xw|^2+\lambda{|w|}_1,\tag {LASSO}. $$

  2. the optimization form: $$ \begin{align} \arg\min_{w}\sum_{i=1}^{n}(y_i-w^Tx_i)^2 &\qquad\text{Objective function} \ \text{subject to},{|w|}_1 \leq t &\qquad\text{constraint}. \end{align} $$

  3. the selection form: $$ \begin{align} \arg\min_{w}{|w|}1 \qquad &\text{Objective function} \ \text{subject to},\sum{i=1}^{n}(y_i-w^Tx_i)^2 \leq t \qquad &\text{constraint}. \end{align} $$ where ${|w|}1=\sum{i=1}^{n}|w_i|$ if $w=(w_1,w_2,\cdots, w_n)^{T}$.

More solutions to this optimization problem:

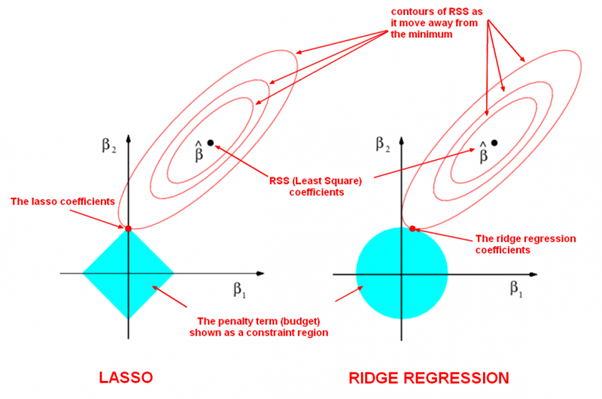

LASSO and Ridge Regression
The LASSO Page ,Wikipedia page and Q&A in zhihu.com
More References in Chinese blog

Bayesian Perspective

If we suppose the prior distribution of the parameters $w$ is in Gaussian distribution, i.e. $f_{W}(w)\propto e^{-\lambda|w|^{2}}$, we will deduce the ridge regression. If we suppose the prior distribution of the parameters $w$ is in Laplacian distribution, i.e. $f_{W}(w)\propto e^{-\lambda{|w|}_1}$, we will deduce LASSO.

Elastic Net

When the sample size of training data $n$ is far less than the number of features $p$, the objective function is: $$ PRSS_{\alpha}=\frac{1}{2n}\sum_{i=1}^{n}(y_i -w^T x_i)^2+\lambda\sum_{j=1}^{p}P_{\alpha}(w_j),\tag {Elastic net} $$ where $P_{\alpha}(w_j)=\alpha {|w_j|}_1 + \frac{1}{2}(1-\alpha)(w_j)^2$.

See more on http://web.stanford.edu/~hastie/TALKS/glmnet_webinar.pdf or http://www.princeton.edu/~yc5/ele538_math_data/lectures/model_selection.pdf.

We can deduce it by Bayesian estimation if we suppose the prior distribution of the parameters $w$ is in mixture of Gaussian distribution and Laplacian distribution, i.e. $$f_{W}(w)\propto e^{-\alpha{|w|}_1-\frac{1}{2}(1-\alpha)|w|^{2}}.$$

See Bayesian lasso regression at http://faculty.chicagobooth.edu/workshops/econometrics/past/pdf/asp047v1.pdf.

Generalized Linear Model

In ordinary least squares, we assume that the errors ${{\epsilon}{i}}{i=1}^{n}$ are i.i.d. Gaussian, i.e. ${\epsilon_{i}} \stackrel{i.i.d}{\sim} N(0,1)$ for $i\in{1,2, \cdots, n}$. It is not necessary to assume that they are in Gaussian distribution. In statistics, the generalized linear model (GLM) is a flexible generalization of ordinary linear regression that allows for response variables that have error distribution models other than a normal distribution. The GLM generalizes linear regression by allowing the linear model to be related to the response variable via a link function and by allowing the magnitude of the variance of each measurement to be a function of its predicted value.

Intuition

Ordinary linear regression predicts the expected value of a given unknown quantity (the response variable, a random variable) as a linear combination of a set of observed values (predictors). This implies that a constant change in a predictor leads to a constant change in the response variable (i.e. a linear-response model). This is appropriate when the response variable has a normal distribution (intuitively, when a response variable can vary essentially indefinitely in either direction with no fixed "zero value", or more generally for any quantity that only varies by a relatively small amount, e.g. human heights).

However, these assumptions are inappropriate for some types of response variables. For example, in cases where the response variable is expected to be always positive and varying over a wide range, constant input changes lead to geometrically varying, rather than constantly varying, output changes. As an example, a prediction model might predict that 10 degree temperature decrease would lead to 1,000 fewer people visiting the beach is unlikely to generalize well over both small beaches (e.g. those where the expected attendance was 50 at a particular temperature) and large beaches (e.g. those where the expected attendance was 10,000 at a low temperature). The problem with this kind of prediction model would imply a temperature drop of 10 degrees would lead to 1,000 fewer people visiting the beach, a beach whose expected attendance was 50 at a higher temperature would now be predicted to have the impossible attendance value of −950. Logically, a more realistic model would instead predict a constant rate of increased beach attendance (e.g. an increase in 10 degrees leads to a doubling in beach attendance, and a drop in 10 degrees leads to a halving in attendance). Such a model is termed an exponential-response model (or log-linear model, since the logarithm of the response is predicted to vary linearly).

Model components

In a generalized linear model (GLM), each outcome $\mathrm{Y}$ of the dependent variables is assumed to be generated from a particular distribution in the exponential family, a large range of probability distributions that includes the normal, binomial, Poisson and gamma distributions, among others. The mean, $\mu$, of the distribution depends on the independent variables, $X$, through: $$ \mathbb{E}(Y)=\mu=g^{-1}(X\beta) $$ where $\mathbb{E}(Y)$ is the expected value of $\mathrm{Y}$; $X\beta$ is the linear predictor, a linear combination of unknown parameters $\beta$; $g$ is the link function and $g^{-1}$ is the inverse function of $g$.

The GLM consists of three elements:

Model components
1. A probability distribution from the exponential family.
2. A linear predictor $\eta = X\beta$.
3. A link function $g$ such that $\mathbb{E}(Y) = \mu = g^{−1}(\eta)$.

Logistic Regression

The logistic distribution: $$ y\stackrel{\triangle}=P(Y=1|X=x)=\frac{1}{1+e^{-w^{T}x}}=\frac{e^{w^{T}x}}{1+e^{w^{T}x}} $$

where $w$ is the parameter vector. Thus, we can obtain: $$ \log\frac{P(Y=1|X=x)}{P(Y \not= 1|X=x)}=w^{T}x, $$

i.e. $$ \log\frac{y}{1-y}=w^{T}x $$ in theory.

Poisson Regression

Projection pursuit regression

https://www.wikiwand.com/en/Projection_pursuit_regression

Nonparametric Regression

https://blogs.ams.org/visualinsight

Machine Learning

The goal of machine learning is to program computers to use example data or past experience to solve a given problem. Many successful applications of machine learning exist already, including systems that analyze past sales data to predict customer behavior, recognize faces or spoken speech, optimize robot behavior so that a task can be completed using minimum resources, and extract knowledge from bioinformatics data. From ALPAYDIN, Ethem, 2004. Introduction to Machine Learning. Cambridge, MA: The MIT Press..

Road To Data Scientist

Dimension Reduction

https://www.wikiwand.com/en/Nonlinear_dimensionality_reduction

Density Estimation

Density estimation https://www.cs.toronto.edu/~hinton/science.pdf

Classification

Clustering

There are two different contexts in clustering, depending on how the entities to be clustered are organized. In some cases one starts from an internal representation of each entity (typically an $M$-dimensional vector $x_i$ assigned to entity $i$) and derives mutual dissimilarities or mutual similarities from the internal representation.In this case one can derive prototypes (or centroids) for each cluster, for example by averaging the characteristics of the contained entities (the vectors). In other cases only an external representation of dissimilarities is available and the resulting model is an undirected and weighted graph of entities connected by edges. From https://www.intelligent-optimization.org/LIONbook/.11

The external representation of dissimilarity will be discussed in Graph Algorithm.

K-means

K-means is also called Lloyd’s algorithm.

Hierarchical clustering

DBSCAN

Support Vector Machine

http://www.svms.org/history.html http://www.svms.org/ http://web.stanford.edu/~hastie/TALKS/svm.pdf http://bytesizebio.net/2014/02/05/support-vector-machines-explained-well/

Kernel Methods

Principal Component Analysis and Singular Value Decomposition

Singular Value Decomposition

Singular value decomposition is an extension of eigenvector decomposition of a matrix.

For the square matrix $M_{n\times n}$, we can compute the eigenvalues and eigenvectors: $$M_{n\times n}v=\lambda v$$ where the eigenvector $v\in \mathbb{R}^n$, the eigenvalue $\lambda \in\mathbb{R}$. It is equivalent to solve the linear equation system $(M_{n\times n}-\lambda I_{n\times n})v=0$ where $I_{n\times n}$ is the $n$th order identity matrix. Especially, when $M_{n\times n}$ is symmetrical i.e. $M^T=M$, what are the properties of eigenvalue and eigenvector?

Theorem: All eigenvalues of a symmetrical matrix are real.

Proof: Let $A$ be a real symmetrical matrix and $Av=\lambda v$. We want to show the eigenvalue $\lambda$ is real. Let $v^{\star}$ be conjugate transpose of $v$. $v^{\star}Av=\lambda v^{\star}v,(1)$. If $Av=\lambda v$，thus $(Av)^{\star}=(\lambda v)^{\star}$, i.e. $v^{\star}A=\bar{\lambda}v^{\star}$. We can infer that $v^{\star}Av=\bar{\lambda}v^{\star}v,(2)$.By comparing the equation (1) and (2), we can obtain that $\lambda=\bar{\lambda}$ where $\bar{\lambda}$ is the conjugate of $\lambda$.

Theorem: Every symmetrical matrix can be diagonalized.

See more at http://mathworld.wolfram.com/MatrixDiagonalization.html.

When the matrix is rectangle i.e. the number of columns and the number of rows are not equal, what is the counterpart of eigenvalues and eigenvectors? Another question is if every matrix $M_{m\times n}\in\mathbb{R}^{m\times n}$ can be written as the sum of rank-1 matrix and how? $$M_{m\times n}=\sum_{i}^{r}p_i q_i=P_{m\times r}Q_{r\times n}$$ where $p_i\in\mathbb{R}^m$,$q_i\in\mathbb{R}^n$ and $r$ is integer. They are from the square matrices $M_{m\times n}^TM_{m\times n}=A_{n\times n}$ and $M_{m\times n}M_{m\times n}^T=B_{m\times m}$. It is obvious that the matrix $A$ and $B$ are symmetrical.

Theorem: The matrix $A$ and $B$ has the same eigenvalues except zero.

Proof: We know that $A=M_{m\times n}^TM_{m\times n}$ and $B=M_{m\times n}M_{m\times n}^T$. Let $Av=\lambda v$ i.e. $M_{m\times n}^TM_{m\times n} v=\lambda v$, which can be rewritten as $M_{m\times n}^T(M_{m\times n} v)=\lambda v,(1)$, where $v\in\mathbb{R}^n$. We multiply the matrix $M_{m\times n}$ in the left of both sides of equation (1), then we obtain $M_{m\times n}M_{m\times n}^T(M_{m\times n} v)=M_{m\times n}(\lambda v)=\lambda(M_{m\times n} v)$.

Theorem: The matrix $A$ and $B$ are non-negative definite, i.e. $\left&lt;v,Av\right&gt;\geq 0, \forall v\in\mathbb{R}^n$ and $\left&lt;u,Bu\right&gt;\geq 0, \forall u\in\mathbb{R}^m$.

Proof: It is $\left&lt;v,Av\right&gt;=\left&lt;v,M_{m\times n}^TM_{m\times n}v\right&gt;=(Mv)^T(Mv)=|Mv|_2^2\geq 0$ as well as $B$.

Theorem: $M_{m\times n}=U_{m\times m}\Sigma_{m\times n} V_{n\times n}^T$, where

  • $U_{m\times m}$ is an $m \times m$ orthogonal matrix;
  • $\Sigma_{m\times n}$ is a diagonal $m \times n$ matrix with non-negative real numbers on the diagonal,
  • $V_{n\times n}^T$ is the transpose of an $n \times n$ orthogonal matrix.
SVD

See more at http://mathworld.wolfram.com/SingularValueDecomposition.html.

Principal Component Analysis

Gaussian Scatter PCA

Principal Component Regression

https://www.jianshu.com/p/d090721cf501

Graph Algorithms

Graph as Data Structure

Graph is mathematical abstract or generalization of the connection between entries. A graph ${G}$ consists of a finite set of vertices $V(G)$ and a set of edges $E(G)$ consisting of distinct, unordered pairs of vertices, where nodes stand for entities and edges stand for their connections. It is the foundation of network science. It is different from the common data where the feature is nothing except the connection.

Graphs provide a powerful way to represent and exploit these connections. Graphs can be used to model such diverse areas as computer vision, natural language processing, and recommender systems. 12

The connections can be directed, weighted even probabilistic.

Definition: Let $G$ be a graph with $V(G) = {1,\dots,n}$ and $E(G) = {e_1,\dots, e_m}$. Suppose each edge of $G$ is assigned an orientation, which is arbitrary but fixed. The (vertex-edge) incidence matrix of $G$, denoted by $Q(G)$, is the $n \times m$ matrix defined as follows. The rows and the columns of $Q(G)$ are indexed by $V(G)$ and $E(G)$, respectively. The $(i, j)$-entry of $Q(G)$ is 0 if vertex $i$ and edge $e_j$ are not incident, and otherwise it is $\color{red}{\text{1 or −1}}$ according as $e_j$ originates or terminates at $i$, respectively. We often denote $Q(G)$ simply by $Q$. Whenever we mention $Q(G)$ it is assumed that the edges of $G$ are oriented

Definition: Let $G$ be a graph with $V(G) = {1,\dots,n}$ and $E(G) = {e_1,\dots, e_m}$.The adjacency matrix of $G$, denoted by $A(G)$, is the $n\times n$ matrix defined as follows. The rows and the columns of $A(G)$ are indexed by $V(G)$. If $i \not= j$ then the $(i, j)$-entry of $A(G)$ is $0$ for vertices $i$ and $j$ nonadjacent, and the $(i, j)$-entry is $\color{red}{\text{1}}$ for $i$ and $j$ adjacent. The $(i,i)$-entry of $A(G)$ is 0 for $i = 1,\dots,n.$ We often denote $A(G)$ simply by $A$. Adjacency Matrix is also used to represent weighted graphs. If the $(i,i)$-entry of $A(G)$ is $w_{i,j}$, i.e. $A[i][j] = w_{i,j}$, then there is an edge from vertex $i$ to vertex $j$ with weight $w$. The Adjacency Matrix of weighted graphs $G$ is also called weight matrix of $G$, denoted by $W(G)$ or simply by $W$.

See Graph representations using set and hash at https://www.geeksforgeeks.org/graph-representations-using-set-hash/.

Definition: In graph theory, the degree (or valency) of a vertex of a graph is the number of edges incident to the vertex, with loops counted twice. From the Wikipedia page at https://www.wikiwand.com/en/Degree_(graph_theory). The degree of a vertex $v$ is denoted $\deg(v)$ or $\deg v$. Degree matrix $D$ is a diagonal matrix such that $D_{i,i}=\sum_{j} w_{i,j}$ for the weighted graph with $W=(w_{i,j})$.

Definition: Let $G$ be a graph with $V(G) = {1,\dots,n}$ and $E(G) = {e_1,\dots, e_m}$.The Laplacian matrix of $G$, denoted by $L(G)$, is the $n\times n$ matrix defined as follows. The rows and the columns of $L(G)$ are indexed by $V(G)$. If $i \not= j$ then the $(i, j)$-entry of $L(G)$ is $0$ for vertices $i$ and $j$ nonadjacent, and the $(i, j)$-entry is $\color{red}{\text{ −1}}$ for $i$ and $j$ adjacent. The $(i,i)$-entry of $L(G)$ is $\color{red}{d_i}$, the degree of the vertex $i$, for $i = 1,\dots,n.$ In other words, the $(i,i)$-entry of $L(G)$, $L(G){i,j}$, is defined by $$L(G){i,j} = \begin{cases} \deg(V_i) & \text{if $i=j$,}\ -1 & \text{if $i\not= j$ and $V_i$ and $V_j$ is adjacent,} \ 0 & \text{otherwise.}\end{cases}$$ Laplacian matrix of a graph $G$ with weighted matrix $W$ is ${L^{W}=D-W}$, where $D$ is the degree matrix of $G$. We often denote $L(G)$ simply by $L$.

Definition: A directed graph (or digraph) is a set of vertices and a collection of directed edges that each connects an ordered pair of vertices. We say that a directed edge points from the first vertex in the pair and points to the second vertex in the pair. We use the names 0 through V-1 for the vertices in a V-vertex graph. Via https://algs4.cs.princeton.edu/42digraph/.

It seems that graph theory is the application of matrix theory at least partially.

Cayley graph of F2 in Wikimedia Moreno Sociogram 1st Grade
Cayley graph of F2

A* Algorithm

In computer science, A* (pronounced "A star") is a computer algorithm that is widely used in pathfinding and graph traversal, which is the process of finding a path between multiple points, called "nodes". It enjoys widespread use due to its performance and accuracy. However, in practical travel-routing systems, it is generally outperformed by algorithms which can pre-process the graph to attain better performance, although other work has found A* to be superior to other approaches. It is draw from Wikipedia page on A* algorithm.

First we learn the Dijkstra's algorithm. Dijkstra's algorithm is an algorithm for finding the shortest paths between nodes in a graph, which may represent, for example, road networks. It was conceived by computer scientist Edsger W. Dijkstra in 1956 and published three years later.

Dijkstra algorithm
Dijkstra algorithm

See the page at Wikipedia A* search algorithm

Graph Kernel

Like kernels in kernel methods, graph kernel is used as functions measuring the similarity of pairs of graphs. They allow kernelized learning algorithms such as support vector machines to work directly on graphs, without having to do feature extraction to transform them to fixed-length, real-valued feature vectors.

Spectral Clustering Algorithm

Spectral method is the kernel tricks applied to locality preserving projections as to reduce the dimension, which is as the data preprocessing for clustering.

In multivariate statistics and the clustering of data, spectral clustering techniques make use of the spectrum (eigenvalues) of the similarity matrix of the data to perform dimensionality reduction before clustering in fewer dimensions. The similarity matrix is provided as an input and consists of a quantitative assessment of the relative similarity of each pair of points in the data set.

Similarity matrix is to measure the similarity between the input features ${\mathbf{x}i}{i=1}^{n}\subset\mathbb{R}^{p}$. For example, we can use Gaussian kernel function $$ f(\mathbf{x_i},\mathbf{x}j)=exp(-\frac{{|\mathbf{x_i}-\mathbf{x}j|}2^2}{2\sigma^2}) $$ to measure the similarity of inputs. The element of similarity matrix $S$ is $S{i,j}=exp(-\frac{{|\mathbf{x_i}-\mathbf{x}j|}2^2}{2\sigma^2})$. Thus $S$ is symmetrical, i.e. $S{i,j}=S{j,i}$ for $i,j\in{1,2,\dots,n}$. If the sample size $n\gg p$, the storage of similarity matrix is much larger than the original input ${\mathbf{x}i}{i=1}^{n}$, when we would only preserve the entries above some values. The Laplacian matrix is defined by $L=D-S$ where $D=Diag{D_1,D_2,\dots,D_n}$ and $D{i}=\sum{j=1}^{n}S_{i,j}=\sum_{j=1}^{n}exp(-\frac{{|\mathbf{x_i}-\mathbf{x}_j|}_2^2}{2\sigma^2})$.

Then we can apply principal component analysis to the Laplacian matrix $L$ to reduce the data dimension. After that we can perform $K-means$ or other clustering.

Bootstrapping Methods

Bootstrapping methods are based on the bootstrap samples to compute new statistic.

Decision Tree

A decision tree is a set of questions organized in a hierarchical manner and represented graphically as a tree.

An Introduction to Recursive Partitioning: Rationale, Application and Characteristics of Classification and Regression Trees, Bagging and Random Forests

Ensemble methods

Zhou Zhihua's publication on ensemble methods

Bagging

Bagging, short for ‘bootstrap aggregating’, is a simple but highly effective ensemble method that creates diverse models on different random samples of the original data set. Random forest is the application of bagging to decision tree algorithms.

Boosting

Stacking

Stacked generalization (or stacking) is a different way of combining multiple models, that introduces the concept of a meta learner. Although an attractive idea, it is less widely used than bagging and boosting. Unlike bagging and boosting, stacking may be (and normally is) used to combine models of different types. The procedure is as follows:

  1. Split the training set into two disjoint sets.
  2. Train several base learners on the first part.
  3. Test the base learners on the second part.
  4. Using the predictions from 3) as the inputs, and the correct responses as the outputs, train a higher level learner.

Note that steps 1) to 3) are the same as cross-validation, but instead of using a winner-takes-all approach, we combine the base learners, possibly nonlinearly.

Deep Learning

Deep learning is the modern version of artificial neural networks full of tricks and techniques. In mathematics, it is nonlinear nonconvex and composite of many functions. Its name -deep learning- is to distinguish from the classical machine learning "shallow" methods. However, its complexity makes it yet engineering even art far from science. There is no first principle in deep learning but trial and error. In theory, we do not clearly understand how to design more robust and efficient network architecture; in practice, we can apply it to diverse fields. It is considered as one approach to artificial intelligence

Deep learning is a typical hierarchy model. The application of deep learning are partial listed in Awesome deep learning,MIT Deep Learning Book and Deep interests.

Father of Deep Learning
Father of Deep Learning
A history of deep learning
Three Giants' Survey in (Nature 521 p 436)
Critique of Paper by "Deep Learning Conspiracy" (Nature 521 p 436)
Deep Learning in Neural Networks: An Overview
AI winter
Deep learning in wiki and Deep Learning in Scholarpedia
A Brief History of Deep Learning (Part One)
On the Origin of Deep Learning
history of nn
Deep Learning Roadmap
nn_timeline
Neural_Net_Arch_Genealogy

The architecture and optimization are the core content of deep learning models. We will focus on the first one.

Artificial Neural Network

Artificial neural networks are most easily visualized in terms of a directed graph. In the case of sigmoidal units, node $s$ represents sigmoidal unit and directed edge $e=(u,v)$ indicates that one of sigmoidal unit $v$'s inputs is the output of sigmoidal unit $u$.

The Neural Network Zoo

Perceptron

Perceptron can be seen as a generalized linear model. In mathematics, it is a map $$f:\mathbb{R}^n\rightarrow\mathbb{R}.$$

It can be decomposed into $2$ steps:

  1. Aggregate all the information: $z=\sum_{i=1}^{n}w_ix_i+b_0=(x_1,x_2,\cdots,x_n,1)\cdot (w_1,w_2,\cdots,w_n,b_0)^{T}.$
  2. Transform the information to activate something: $y=\sigma(z)$, where $\sigma$ is nonlinear such as step function.

Activation function

The nonlinear function $\sigma$ is conventionally called activation function. There are some activation functions in history.

  • Sign function $$ f(x)=\begin{cases}1,&\text{if $x &gt; 0$}\ -1,&\text{if $x &lt; 0$}\end{cases} $$

  • Step function $$ f(x)=\begin{cases}1,&\text{if $x\geq0$}\ 0,&\text{otherwise}\end{cases} $$

  • Sigmoid function $$ \sigma(x)=\frac{1}{1+e^{-x}}. $$

  • Radical base function $$ \rho(x)=e^{-\beta(x-x_0)^2}. $$

  • TanH function $$ tanh(x)=2\sigma(2x)-1=\frac{2}{1+e^{-2x}}-1. $$

  • ReLU function $$ ReLU(x)={(x)}_{+}=\max{0,x}=\begin{cases}x,&\text{if $x\geq 0$}\ 0,&\text{otherwise}\end{cases}. $$

Learning algorithm

We draw it from the Wikipedia page. Learning is to find optimal parameters of the model. Before that, we must feed data into the model. The training data of $n$ sample size is $$ D={(\mathbf{x}i,d_i)}{i=1}^{n} $$ where

  • $\mathbf{x}_i$ is the $n$-dimensional input vector;
  • $d_i$ is the desired output value of the perceptron for that input $\mathbf{x}_i$.
  1. Initialize the weights and the threshold. Weights may be initialized to 0 or to a small random value. In the example below, we use 0.
  2. For each example $j$ in our training set $D$, perform the following steps over the input $\mathbf{x}{j}$ and desired output $d{j}$:

    • Calculate the actual output： $$ \begin{align} y_{j}(t) & =f[\mathbf{w}(t)\cdot\mathbf{x}{j}]\ ​ & =f[w{0}(t)x_{j,0}+w_{1}(t)x_{j,1}+w_{2}(t)x_{j,2}+\dotsb +w_{n}(t)x_{j,n}] \end{align} $$

    • Update the weights: $w_{i}(t+1)=w_{i}(t)+r\cdot (d_{j}-y_{j}(t))x_{(j,i)},$ for all features $[0\leq i\leq n]$, is the learning rate.

  3. For offline learning, the second step may be repeated until the iteration error $\frac{1}{s}\sum_{j=1}^{s}|d_{j}-y_{j}(t)|$ is less than a user-specified error threshold $\gamma$, or a predetermined number of iterations have been completed, where s is again the size of the sample set.

$\color{lime}{Note}$: the perceptron model is linear classifier, i.e. the training data set $D$ is linearly separable such that the learning algorithm can converge.
Perceptrons 人工神经网络真的像神经元一样工作吗？

More in Wikipedia page.

It is the first time to model cognition.

Feedforward Neural Network

Representation of Feedforward Neural Network

Given that the function of a single neuron is rather simple, it subdivides the input space into two regions by a hyperplane, the complexity must come from having more layers of neurons involved in a complex action (like recognizing your grandmother in all possible situations).The "squashing" functions introduce critical nonlinearities in the system, without their presence multiple layers would still create linear functions. Organized layers are very visible in the human cerebral cortex, the part of our brain which plays a key role in memory, attention, perceptual awareness, thought, language, and consciousness.11

The feedforward neural network is also called multilayer perceptron. The best way to create complex functions from simple functions is by composition. In mathematics, it can be considered as multi-layered non-linear composite function:

$$ X\to \sigma\circ (W_1X+b_1)=H_1\to \sigma\circ(W_2 H_1+b_2)=H_2 \to\cdots \sigma(WH+b)=y $$

where the notation $\circ$, $M_1,b_1,M_2,b_2,\cdots, W,b$ mean pointwise operation, the parameters in the affine mapping, respectively. Thus the data flow in the form of the chain: $$ \begin{align} f = H_1 \circ {H_2}\circ \cdots \circ{\sigma} \qquad &\text{Composite form} \ X\stackrel{\sigma}\to H_1 \stackrel{\sigma}\to H_2 \stackrel{\sigma} \to \cdots\stackrel{\sigma}\to,y \qquad &\text{Hierarchy form} \ \mathbb{R}^p\to \mathbb{R}^{l_1}\to \mathbb{R}^{l_2}\to \cdots\to \mathbb{R} \qquad& \text{Dimension} \end{align} $$

where the circle notation $\circ$ means forward composite or as the input of afterward operation. In hierarchy form, we omit the affine map. It is can be written in the recursive form: $$ \begin{align} \mathbf{z}{i} &= W{i}H_{i-1}+b_i, \ H_{i} &=\sigma\circ (\mathbf{z}{i}), \forall i{1,2,\dots,D} \tag 3 \end{align} $$ where $H{0}=X\in\mathbb{R}^p$, $b_i$ is a vector and $W_{i}$ is matrix. And the number of recursive times $D$ is called the depth of network.

  1. In the first layer, we feed the input vector $X\in\mathbb{R}^{p}$ and connect it to each unit in the next layer $W_1X+b_1\in\mathbb{R}^{l_1}$ where $W_1\in\mathbb{R}^{n\times l_1}, b_1\in\mathbb{R}^{l_1}$. The output of the first layer is $H_1=\sigma\circ(M_1X+b)$, or in another word the output of $j$th unit in the first (hidden) layer is $h_j=\sigma{(W_1X+b_1)}_j$ where ${(W_1X+b_1)}_j$ is the $j$th element of $l_1$-dimensional vector $W_1X+b_1$.
  2. In the second layer, its input is the output of first layer,$H_1$, and apply linear map to it: $W_2H_1+b_2\in\mathbb{R}^{l_2}$, where $W_2\in\mathbb{R}^{l_1\times l_2}, b_2\in\mathbb{R}^{l_2}$. The output of the second layer is $H_2=\sigma\circ(W_2H_1+b_2)$, or in another word the output of $j$th unit in the second (hidden) layer is $h_j=\sigma{(W_2H_1+b_2)}_j$ where ${(W_2H_1+b_2)}_j$ is the $j$th element of $l_2$-dimensional vector $W_2H_1+b_2$.
  3. The map between the second layer and the third layer is similar to (1) and (2): the linear maps datum to different dimensional space and the nonlinear maps extract better representations.
  4. In the last layer, suppose the input data is $H\in\mathbb{R}^{l}$. The output may be vector or scalar values and $W$ may be a matrix or vector as well as $y$.

The ordinary feedforward neural networks take the sigmoid function $\sigma(x)=\frac{1}{1+e^{-x}}$ as the nonlinear activation function while the RBF networks take the Radial basis function as the activation function such as $\sigma(x)=e^{c{|x|}_2^2}$.

In theory, the universal approximation theorem show the power of feedforward neural network if we take some proper activation functions such as sigmoid function.

Evaluation and Optimization in Multilayer Perceptron

The problem is how to find the optimal parameters $W_1, b_1, W_2, b_2,\cdots, W, b$ ? The multilayer perceptron is as one example of supervised learning, which means that we feed datum $D={(\mathbf{x_i},d_i)}_{i=1}^{n}$ to it and evaluate it.

The general form of the evaluation is given by: $$ J(\theta)=\frac{1}{n}\sum_{i=1}^{n}\mathbb{L}[f(\mathbf{x}_i|\theta),\mathbf{d}_i] $$ where $\mathbf{d}_i$ is the desired value of the input $\mathbf{x}_i$ and $\theta$ is the parameters of multilayer perceptron. The notation $f(\mathbf{x}_i|\theta)$ is the output given paramaters $\theta$. The function $\mathbb{L}$ is loss function to measure the discrpency between the predicted value $f(\mathbf{x}_i|\theta)$ and the desired value $\mathbf{d}_i$.

In general, the number of parameters $\theta$ is less than the sample size $n$. And the objective function $J(\theta)$ is not convex.

We will solve it in the next section Backpropagation, Optimization and Regularization.

The diagram of MLP
Visualizing level surfaces of a neural network with raymarching
Evaluation for different tasks

Evaluation is to judge the models with different parameters in some sense via objective function. In maximum likelihood estimation, it is likelihood or log-likelihood; in parameter estimation, it is bias or mean square error; in regression, it depends on the case.

In machine learning, evaluation is aimed to measure the discrepancy between the predicted values and trues value by loss function. It is expected to be continuous smooth and differential but it is snot necessary. The principle is the loss function make the optimization or learning tractable. For classification, the loss function always is cross entropy; for regression, the loss function can be any norm function such as the $\ell_2$ norm; in probability models, the loss function always is joint probability or logarithm of joint probability.

In classification, the last layer is to predict the degree of belief of the labels via softmax function, i.e. $$ softmax(z)=(\frac{\exp(z_1)}{\sum_{i=1}^{n}\exp(z_i)},\frac{\exp(z_2)}{\sum_{i=1}^{n} \exp(z_i)}, \cdots, \frac{\exp(z_n)}{\sum_{i=1}^{n}\exp(z_i)}) $$ where $n$ is the number of total classes. The labels are encoded as the one hot vector such as $\mathrm{d}=(1,0,0,\cdots,0)$. The cross entropy is defined as: $$ \mathbf{H}(d,p)=-\sum_{i=1}^{n}d_i\log(p_i)=\sum_{i=1}^{n}d_i\log(\frac{1}{p_i}),$$ where $d_i$ is the $i$th element of the one-hot vector $d$ and $p_i=\frac{\exp(z_i)}{\sum_{j=1}^{n}\exp(z_j)}$ for all $i=1,2\dots, n.$

Suppose $\mathrm{d}=(1,0,0,\cdots,0)$, the cross entropy is $\mathbf{H}(d,p)=-\log(p_1)=\log \sum_{i=1}^{n}\exp(z_i)-z_1$. The cost function is $\frac{1}{n}\sum_{i=1}^{n}\mathbf{H}(d^{i},p^{i})$ in the training data set ${(\mathbf{x}i,d^i)}{i=1}^{n}$ where $\mathbf{x}_i$ is the features of $i$th sample and $d^i$ is the desired true target label encoded in one-hot vector meanwhile $p^{i}$ is the predicted label of $\mathbf{x}_i$. See the following links for more information on cross entropy and softmax.

VISUALIZING THE LOSS LANDSCAPE OF NEURAL NETS
VGG ResNet

In regression, the loss function may simply be the squared $\ell_2$ norm, i.e. $\mathbb{L}(d,p)=(d-p)^{2}$ where $d$ is the desired target and $p$ is the predicted result. And the cost function is mean squared error: $$ J(\theta)=\frac{1}{n}\sum_{i=1}^{n}[f(\mathbf{x}_i|\theta)-\mathrm{d}_i]^2.$$ In robust statistics, there are more loss functions such as Huber loss, hinge loss, Tukey loss.

  • Huber loss function $$ Huber_{\delta}(x)=\begin{cases} \frac{|x|}{2},&\text{if $|x|\leq\delta$}\ \delta(|x|-\frac{1}{2}\delta),&\text{otherwise} \end{cases} $$

  • Hinge loss function $$ Hinge(x)=max{0, 1-tx} $$ where $t=+1$ or $t=-1$.

  • Tukey loss function

    $$ Tukey_{\delta}(x)=\begin{cases} (1-[1-x^2/\delta^2]^3)\frac{\delta^2}{6},&\text{if $|x|\leq\delta$}\ \frac{\delta^2}{6}, &\text{otherwise} \end{cases} $$

It is important to choose or design loss function or more generally objective function, which can select variable as LASSO or confirm prior information as Bayesian estimation. Except the representation or model, it is the objective function that affects the usefulness of learning algorithms.

For more on loss function see:

Backpropagation, Training and Regularization

Backpropagation

Automatic differentiation is the generic name for techniques that use the computational representation of a function to produce analytic values for the derivatives. Automatic differentiation techniques are founded on the observation that any function, no matter how complicated, is evaluated by performing a sequence of simple elementary operations involving just one or two arguments at a time. Backpropagation is one special case of automatic differentiation, i.e. reverse-mode automatic differentiation.

The backpropagation procedure to compute the gradient of an objective function with respect to the weights of a multilayer stack of modules is nothing more than a practical application of the chain rule for derivatives. The key insight is that the derivative (or gradient) of the objective with respect to the input of a module can be computed by working backwards from the gradient with respect to the output of that module (or the input of the subsequent module). The backpropagation equation can be applied repeatedly to propagate gradients through all modules, starting from the output at the top (where the network produces its prediction) all the way to the bottom (where the external input is fed). Once these gradients have been computed, it is straightforward to compute the gradients with respect to the weights of each module.13

Suppose that $f(x)={\sigma}\circ(WH + b)$,where $H=\sigma\circ(W_4H_3 + b_4)$, $H_3=\sigma\circ(W_3H_2 + b_3)$,$H_2=\sigma\circ(W_2H_1 + b_2),$ $H_1=\sigma\circ(W_1x + b_1)$, we want to compute the gradient $L(x_0,d_0)=|f(x_0)-d_0|^{2}_2$ with respect to all weights $W_1,W_2,W_3,W$:

$$ \frac{\partial L(x_0,d_0)}{\partial W_n^i}=\frac{\partial L(x_0,d_0)}{\partial f(x_0)}\frac{\partial f(x_0)}{\partial W_n^i}\forall i\in{1,2,\dots,l_n}, \forall,n\in{1,2,3,4} $$

and it is fundamental to compute the gradient with respect to the last layer as below.

  • the gradient of loss function with respect to the prediction function: $$\frac{\partial L(x_0,d_0)}{\partial f(x_0)}=2[f(x_0)-d_0],$$

  • the gradient of each unit in prediction function with respect to the weight in the last layer: $$ \frac{\partial f^{j}(x_0)}{\partial W^j}= \frac{\partial \sigma(W^jH+b^j)}{\partial W^j}= {\sigma}^{\prime}(W^jH+b^j) H ,,\forall j\in{1,2,\dots,l}, $$

  • the gradient of prediction function with respect to the last hidden state: $$ \frac{\partial f^{j}(x_0)}{\partial H} = \frac{\partial \sigma(W^jH+b^j)}{\partial H} = {\sigma}^{\prime}(W^jH+b^j) W^j ,,\forall j\in{1,2,\dots,l}, $$ where $f^{j}(x_0)$, $W^{j}$, $b^j$ and $\sigma^{\prime}(z)$is the $j$th element of $f(x_0)$, the $j$-th row of matrix $W$, the $j$th element of vector $b$ and $\frac{\mathrm{d}\sigma(z)}{\mathrm{d} z}$, respectively.

The Architecture of Feedforward Neural Networks
Each connection ,the black line, is attached with a weight parameter.

Recall the chain rule with more variables: $$ \frac{\partial f(m(x_0),n(x_0))}{\partial x_0}=\frac{\partial f(m(x_0),n(x_0))}{\partial m(x_0)}\frac{\partial m(x_0)}{\partial x_0} + \frac{\partial f(m(x_0),n(x_0))}{\partial n(x_0)}\frac{\partial n(x_0)}{\partial x_0}. $$

Similarly , we can compute following gradients: $$\frac{\partial H^j}{\partial W_4^j} =\frac{\partial \sigma(W_4^j H_3+b_4^j)}{\partial W_4^j} =\sigma^{\prime}(W_4^j H_3+b_4^j)H_3 \qquad\forall j\in{1,2,\dots,l};$$ $$\frac{\partial H^j}{\partial H_3} =\frac{\partial \sigma(W_4^j H_3+b_4^j)}{\partial H_3} =\sigma^{\prime}(W_4^j H_3+b_4^j)W_4^j \qquad\forall j\in{1,2,\dots,l_4};$$ $$\frac{\partial H_3^j}{\partial W_3^j}=\frac{\partial \sigma(W_3^j H_2+b_3^j)}{\partial W_3^j} =\sigma^{\prime}(W_3^j H_2+b_3^j)H_2 \qquad\forall j\in{1,2,\dots,l_3};$$ $$\frac{\partial H_3^j}{\partial H_2} =\frac{\partial \sigma(W_3^j H_2+b_3^j)}{\partial H_2} =\sigma^{\prime}(W_3^j H_2+b_3^j)W_3^j \qquad\forall j\in{1,2,\dots,l_3};$$ $$\frac{\partial H_2^j}{\partial W_2^j}=\frac{\partial \sigma(W_2^j H_1+b_2^j)}{\partial W_2^j} =\sigma^{\prime}(W_2^j H_1+b_2^j)H_1 \qquad\forall j\in{1,2,\dots,l_2};$$ $$\frac{\partial H_2^j}{\partial H_1} =\frac{\partial \sigma(W_2^j H_1+b_2^j)}{\partial H_1} =\sigma^{\prime}(W_2^j H_1+b_2^j)W_2^j \qquad\forall j\in{1,2,\dots,l_2};$$ $$\frac{\partial H_1^j}{\partial W_1^j}=\frac{\partial \sigma(W_1^j x_0+b_1^j)}{\partial W_1^j} =\sigma^{\prime}(W_1^j x_0+b_1^j)x_0 \qquad\forall j\in{1,2,\dots,l_1}.$$

The multilayer perceptron $f(x)$ can be written in a chain form: $$ X\stackrel{\sigma}{\to} H_1 \stackrel{\sigma}{\to} H_2\stackrel{\sigma} \to H_3 \stackrel{\sigma} \to H_4 \stackrel{\sigma} \to H\stackrel{\sigma}\to, f(x) \ X\rightarrow W_1 X \rightarrow W_2H_1 \rightarrow W_3H_2 \rightarrow W_4H_3 \rightarrow WH \rightarrow y \ \mathbb{R}^{p}\to \mathbb{R}^{l_1}\to \mathbb{R}^{l_2}\to \mathbb{R}^{l_3}\to \mathbb{R}^{l}\to \mathbb{R}^{o} $$ while the backpropagation to compute the gradient is in the reverse order: $$ \frac{\partial y}{\partial W}\to \frac{\partial y}{\partial H}\to \frac{\partial H}{\partial W_4}\to \frac{\partial H}{\partial H_3}\to \frac{\partial H_3}{\partial W_3}\to \frac{\partial H_3}{\partial H_2}\to \frac{\partial H_2}{\partial W_2}\to \frac{\partial H_2}{\partial W_1}\to \frac{\partial H_1}{\partial W_1}. $$

In general, the gradient of any weight can be computed by backpropagation algorithm. The first step is to compute the gradient of loss function with respect to the output $f(x_0)=y\in\mathbb{R}^{o}$, i.e. $\frac{\partial L(x_0, d_0)}{\partial f(x_0)}=2(f(x_0)-d_0)=2(\sigma\circ(WH+b)-d_0)$ , of which the $i$th element is $2(y^{i}-d_0^i)=2(\sigma(W^{i}H+b^{i})-d_0^{i}),\forall i{1,2,\dots,o}$. Thus $$\frac{\partial L(x_0, d_0)}{\partial W^{i}}=\frac{\partial L(x_0, d_0)}{\partial y^{i}}\frac{\partial y^{i}}{\partial W^{i}}=2(y^{i}-d_0^i)\sigma^{\prime}(W^iH+b^i)H.$$ Thus we can compute all the gradients of $W$ columns. Note that $H$ has been computed through forwards propagation in that layer.

And $H=\sigma\circ(W_4H_3+b_3)$, of which the $i$th element is $H^{i}=\sigma(W_4 H_3 +b_4)^{i}=\sigma(W_4^{i} H_3+b_4^{i})$.

And we can compute the gradient of columns of $W_4$: $$ \frac{\partial L(x_0,y_0)}{\partial W_4^i}= \sum_{j=1}^{o} \frac{\partial L(x_0,y_0)}{\partial f^j (x_0)} \frac{\partial f^j (x_0)}{\partial z} \frac{\partial z}{\partial W_4^i} =\sum_{j=1}^{o}\frac{\partial L(x_0,y_0)}{\partial y^j} \frac{\partial y^j}{\partial H^i} \frac{\partial H^i}{\partial W_4^i} \ = \color{aqua}{ \sum_{j=1}^{o} \frac{\partial L}{\partial y^j} \frac{\partial, y^j}{\partial (W^jH+b^j)} \frac{\partial (W^jH+b^j)}{\partial H^{i}} \frac{\partial (H^{i})}{\partial W_4^i} } \ = \sum_{j=1}^{l}\frac{\partial L}{\partial y^j},\sigma^{\prime}(W^j H+b^j),W^{j,i},\sigma^{\prime}(W^i_4 H_3+b^i_4)H_3, $$ where $W^{j,i}$ is the $i$th element of $j$th column in matrix $W$.

$$ \frac{\partial L(x_0,y_0)}{\partial W_3^i}=\sum_{j=1}^{o} \frac{\partial L(x_0,y_0)}{\partial f^j (x_0)} [\frac{\partial f^j (x_0)}{\partial z}] \frac{\partial z}{\partial W_3^i} =\sum_{j=1}^{o} \frac{\partial L}{\partial y^j } [\frac{\partial y^j}{\partial H_3^i}] \frac{\partial H_3^i}{\partial W_3^i}\ =\sum_{j=1}^{o} \frac{\partial L}{\partial y^j } [\sum_{k=1}\frac{\partial y^j}{\partial H^k} \frac{\partial H^k}{\partial H_3^i}] \frac{\partial H_3^i}{\partial W_3^i} $$ where all the partial derivatives or gradients have been computed or accessible. It is nothing except to add or multiply these values in the order when we compute the weights of hidden layer.

$$ \frac{\partial L(x_0,y_0)}{\partial W_2^i}=\sum_{j=1}^{o} \frac{\partial L(x_0,y_0)}{\partial f^j (x_0)} [\frac{\partial f^j (x_0)}{\partial z}] \frac{\partial z}{\partial W_2^i} =\sum_{j=1}^{l} \frac{\partial L}{\partial y^j } [\frac{\partial y^j}{\partial H_2^i}] \frac{\partial H_2^i}{\partial W_2^i}\\ =\sum_{j=1}^{o} \frac{\partial L}{\partial y^j } {\sum_{k=1}\frac{\partial y^j}{\partial H^k} [\sum_{m}\frac{\partial H^k}{\partial H_3^m}\frac{\partial H_3^m}{\partial H_2^i}]} \frac{\partial H_2^i}{\partial W_2^i} $$

And the gradient of the first layer is computed by $$ \frac{\partial L(x_0,y_0)}{\partial W_1^i} =\sum_{j}\frac{\partial L(x_0,y_0)}{\partial y^j}\frac{\partial y^j}{\partial z}\frac{\partial z}{\partial W_1^i} \ =\sum_{j}\frac{\partial L}{\partial y^j} [\sum_{k}\frac{\partial y^j}{\partial H^k} \sum_{m}\frac{\partial H^k}{\partial H_3^m} \sum_{n}\frac{\partial H_3^k}{\partial H_2^n} \sum_{r}\frac{\partial H_2^n}{\partial H_1^r}] \frac{\partial H_1^i}{\partial W_1^i}. $$ See more information on backpropagation in the following list

Training Methods

The training is to find the optimal parameters of the model based on the training data set. The training methods are usually based on the gradient of cost function as well as back-propagation algorithm in deep learning. See Stochastic Gradient Descent in Numerical Optimization for details. In this section, we will talk other optimization tricks such as Normalization.

Concepts Interpretation
Overfitting and Underfitting See Overfitting or Overfitting and Underfitting With Machine Learning Algorithms
Memorization and Generalization Memorizing, given facts, is an obvious task in learning. This can be done by storing the input samples explicitly, or by identifying the concept behind the input data, and memorizing their general rules. The ability to identify the rules, to generalize, allows the system to make predictions on unknown data. Despite the strictly logical invalidity of this approach, the process of reasoning from specific samples to the general case can be observed in human learning. From https://www.teco.edu/~albrecht/neuro/html/node9.html.
Normalization and Standardization Normalization is to scale the data into the interval [0,1] while Standardization is to rescale the datum with zero mean $0$ and unit variance $1$. See Standardization vs. normalization.
Initialization and More
Normalization

See Improve the way neural networks learn at http://neuralnetworksanddeeplearning.com/chap3.html. See more on nonconvex optimization at http://sunju.org/research/nonconvex/.

Regularization

In mathematics, statistics, and computer science, particularly in the fields of machine learning and inverse problems, regularization is a process of introducing additional information in order to solve an ill-posed problem or to prevent overfitting. In general, regularization is a technique that applies to objective functions in ill-posed optimization problems. It changes the objective function or more generally the optimization procedure. However, it is not crystal clear that what is the relationship between the optimization techniques and generalization ability. See the following links for more information on optimization and generalization.

Parameter norm penalty

The $\ell_2$ norm penalty is to add the squares of $\ell_2$ norm of parameters to the objective function $J(\theta)$ to reduce the parameters(or weights) as shown in ridge regression with regular term coefficient $\lambda$, i.e. $J(\theta)+\lambda {|\theta|}{2}^{2}.$ Suppose $E(\theta)=J(\theta)+\lambda {|\theta|}{2}^{2}$, the gradient descent take approximate (maybe inappropriate) form $$ \theta=\theta-\eta\frac{\partial E(\theta)}{\partial \theta}=\theta -\eta\frac{\partial J(\theta)}{\partial \theta}-2\eta\lambda \theta $$ thus $$ \frac{\partial J(\theta)}{\partial \theta}=-2\lambda\theta\implies J(\theta)=e^{-2\lambda \theta}. $$

If we want to find the minima of $E(\theta)$, $\theta$ will decay to $0$. It extends to the following iterative formula: $$ \theta^{t+1} = (1-\lambda)\theta^{t}-\alpha_{t}\frac{\partial J(\theta^{t})}{\partial \theta}, $$ where $\lambda$ determines how you trade off the original cost $J(\theta)$ with the large weights penalization. The new term $\lambda$ coming from the regularization causes the weight to decay in proportion to its size.

The $\ell_1$ norm penalty is also used in deep learning as in LASSO. It is to solve the following optimization problem: $$\min_{\theta}J(\theta)+\lambda{|\theta|}_1,$$ where $\lambda$ is a hyperparameter. Sparsity brings to the model as shown as in LASSO.

Early stop

Its essential is to make a balance in memorization and generalization. Early stopping is to stop the procedure before finding the minima of cost in training data. It is one direct application of cross validation.

Dropout

It is to cripple the connections stochastically, which is often used in visual tasks. See the original paper Dropout: A Simple Way to Prevent Neural Networks from Overfitting.

Data Augmentation

Data augmentation is to augment the training datum specially in visual recognition. Overfitting in supervised learning is data-dependent. In other words, the model may generalize better if the data set is more diverse. It is to collect more datum in the statistical perspective.

Feed forward and Propagate backwards
TF

Convolutional Neural Network

Convolutional neural network is originally aimed to solve visual tasks. In so-called Three Giants' Survey, the history of ConvNet and deep learning is curated. Deep, Deep Trouble--Deep Learning’s Impact on Image Processing, Mathematics, and Humanity tells us the mathematicians' impression on ConvNet in image processing.

Convolutional layer

Convolutional layer consists of padding, convolution, pooling.

Convolution Operation

Convolution operation is the basic element of convolution neural network. We only talk the convolution operation in 2-dimensional space.

The image is represented as matrix or tensor in computer:

$$ M=\begin{pmatrix} x_{11} & x_{12} & x_{13} & \cdots & x_{1n} \ x_{21} & x_{22} & x_{23} & \cdots & x_{2n} \ \vdots & \vdots & \vdots & \ddots & \vdots \ x_{m1} & x_{m2} & x_{m3} & \cdots & x_{mn} \ \end{pmatrix} $$ where each entry $x_{ij}\in{1,2\cdots,256},i\in{1,2,\cdots,m},j\in{1,2,\cdots,n}$.

  • Transformation as matrix multiplication
    • The $M$ under the transformation $A$ is their product -$MA$- of which each column is the linear combination of columns of the matrix $M$. The spatial information or the relationship of the neighbors is lost.
  • Spatial information extraction
    • Kernel in image processing takes the relationship of the neighboring entries into consideration. It transforms the neighboring entries into one real value. In 2-dimenional space, convolution corresponds to $\color{aqua}{\text{doubly block circulant matrix}}$ if the matrix is flatten. It is local pattern that we can learn.
The illustration of convolution operator
(http://cs231n.github.io/assets/conv-demo/index.html)

As similar as the inner product of vector, the convolution operators can compute the similarity between the submatrix of images and the kernels (also called filters). The convolution operators play the role as parameter sharing and local connection. For more information on CNN, click the following links.

Padding

The standard convolution operation omit the information of the boundaries. Padding is to add some $0$s outside the boundaries of the images.

Zero padding

https://zhuanlan.zhihu.com/p/36278093

Activation

As in feedforward neural networks, an additional non-linear operation called ReLU has been used after every Convolution operation.

Pooling as Subsampling

Pooling as a special convolution is to make the model/network more robust.

Max Pooling

It is to use the maximum to represent the local information.

See https://www.superdatascience.com/convolutional-neural-networks-cnn-step-2-max-pooling/.

Sum Pooling

It is to use the sum to represent the local information.

Average Pooling

It is to use the average to represent the local information.

Random Pooling

It is to draw a sample from the receptive field to represent the local information. https://www.cnblogs.com/tornadomeet/p/3432093.html

CNN

Convolution neural network (conv-net or CNN for short) is the assembly of convolution, padding, pooling and full connection , such as $$ M\stackrel{Conv 1}{\to}H_1 \stackrel{Conv 2}{\to} H_2 \dots \stackrel{Conv l}{\to}{H} \stackrel{\sigma}{\to} y. $$ In the $i$th layer of convolutional neural network, it can be expressed as $$ \tilde{H_i}=C_i\otimes(P\oplus H_{i-1}) \ H_i = Pooling\cdot (\sigma\circ \tilde{H_i}) $$ where $\otimes,\oplus,\cdot$ represent convolution operation, padding and pooling, respectively.

Diagram of Convolutional neural network

https://zhuanlan.zhihu.com/p/28749411

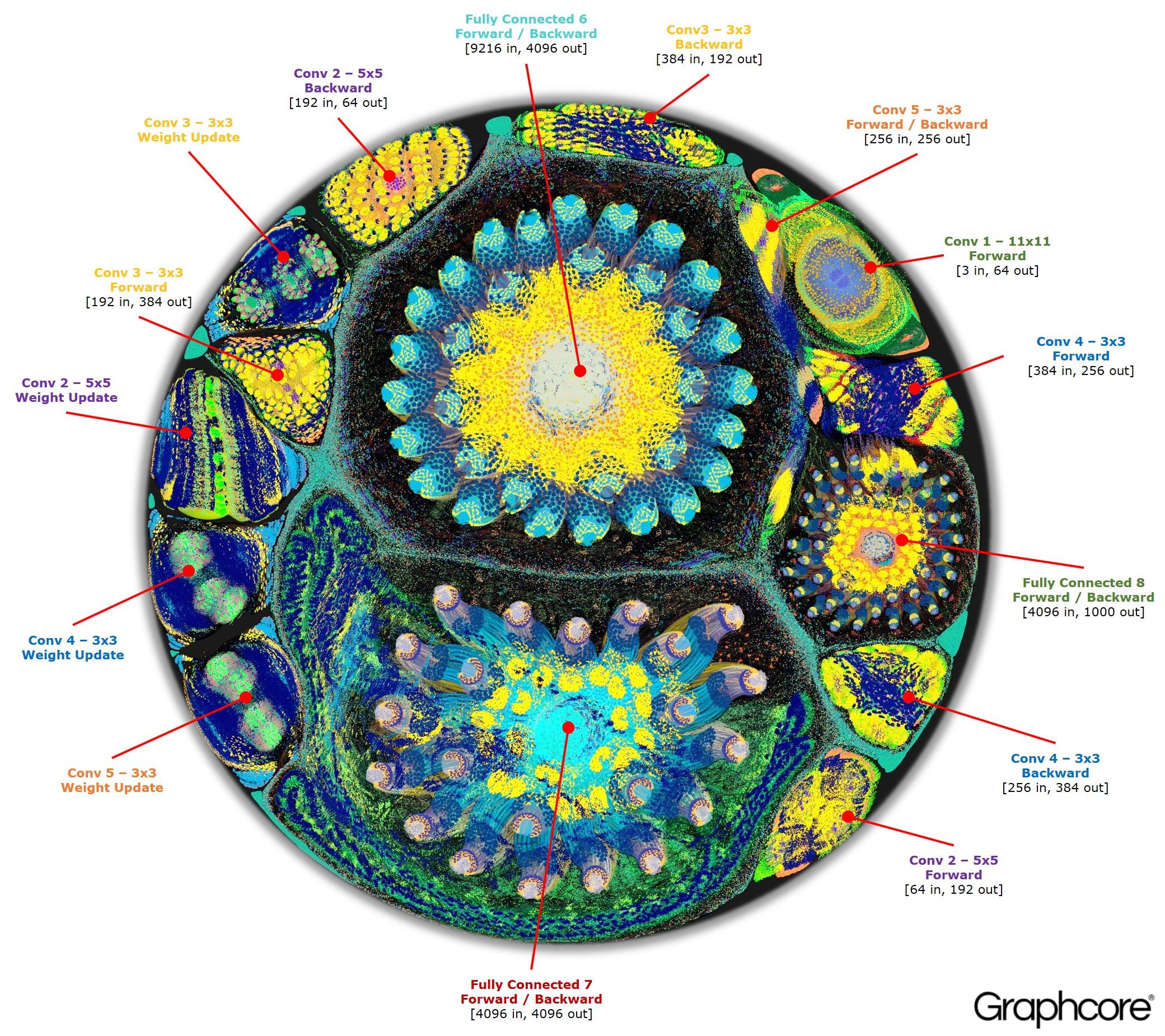

Visualization of CNN

graphcore.ai

Recurrent Neural Networks and Long Short-Time Memory

Recurrent neural networks are aimed to handle sequence data such as time series. Recall the recursive form of feedforward neural networks: $$ \begin{align} \mathbf{z}i &= W_i H{i-1}+b_i, \ H_{i} &= \sigma\circ(\mathbf{z}i), \end{align} $$ where $W_i\in\mathbb{R}^{l{i}\times l_{i-1}}$, $H_i (\text{as well as}, b_i)\in \mathbb{R}^{l_i}\forall i\in{1, 2, \dots, D}$ and $\sigma$ is activation function. In convention, $H_0$ is defined as input $X\in\mathbb{R}^{p}$. In short, the formula in the $i$th layer of feedforward neural network is given by $$ H_i=\sigma\circ(W_i H_{i-1}+b_i). $$

It may suit the identically independently distributed data set. However, the sequence data is not identically independently distributed in most cases. For example, the outcome of current decision determines the next decision. In mathematics it can be expressed as $$H_{t}=\sigma\circ(X_t,H_{t-1})=\sigma\circ(W H_{t-1} + U X_{t}+b),$$ where $X_{t}\in\mathbb{R}^{p}$ is the output $\forall t\in{1,2\dots,\tau}$.

RNN Cell

For each step from $t=1$ to $t=\tau$, the complete update equations of RNN: $$ \begin{align} H_{t} &=\sigma\circ(W H_{t-1} + U X_{t} + b) \ O_{t} &= \mathrm{softmax}(V H_{t} + c) \end{align} $$ where the parameters are the bias vectors $b$ and $c$ along with the weight matrices $U$, $V$ and $W$, respectively for input-to-hidden, hidden-to-output and hidden-to-hidden connections.

Types of RNN
(https://www.altoros.com/blog/wp-content/uploads/2017/01/Deep-Learning-Using-TensorFlow-recurrent-neural-networks.png)

Bi-directional RNN

For each step from $t=1$ to $t = \tau$, the complete update equations of RNN: $$ \begin{align} \stackrel{\rightarrow}H_{t} &=\sigma\circ(W_1\stackrel{\rightarrow}H_{t-1}+U_1X_{t}+b_1) \ \stackrel{\leftarrow}H_{t} &=\sigma\circ(W_2\stackrel{\leftarrow}H_{t+1}+U_2X_{t}+b_2) \ O_{t} &= \mathrm{softmax}(VH_{t}+c) \end{align} $$ where $H_{t} = [\stackrel{\rightarrow} H_{t};\stackrel{\leftarrow} H_{t}]$.

Bi-directional RNN
The bold line(__) is computed earlier than the dotted line(...).

deepai.org

LSTM

There are several architectures of LSTM units. A common architecture is composed of a memory cell, an input gate, an output gate and a forget gate. It is the first time to solve the gradient vanishing problem and long-term dependencies in deep learning.

LSTM block
See LSTM block at(https://devblogs.nvidia.com/wp-content/uploads/2016/03/LSTM.png)
  • forget gate $f_{t}=\sigma(W_{f}[h_{t-1},x_t]+b_f)$ forget gate
  • input gate $i_{t}=\sigma(W_i[h_{t-1},x_t]+b_i)$, $\tilde{C}{t}=tanh(W_C[h{t-1},x_t]+b_C)$
  • memory cell $c_{t}=f_t\times c_{t-1}+i_{t}\times{\tilde{C}_{t}}$
  • output gate $O_{t}=\sigma(W_{O}[h_{t-1},x_t]+b_{O})$ and $h_{t}=O_{t}\times tanh(c_{t})$
Inventor of LSTM
Juergen Schmidhuber more on (http://people.idsia.ch/~juergen/)

Deep RNN

Deep RNN is composed of RNN cell as MLP is composed of perceptrons. For each step from $t=1$ to $t=\tau$, the complete update equations of deep $d$-RNN at the $i$th layer: $$ \begin{align} H_{t}^{i} &=\sigma\circ(W_{i} H_{t-1} + U_{i} X_{t} + b) \ O_{t} &= \mathrm{softmax}(V H_{d} + c) \end{align} $$ where the parameters are the bias vectors $b$ and $c$ along with the weight matrices $U_i$, $V$ and $W_i$, respectively for input-to-hidden, hidden-to-output and hidden-to-hidden connections for $i\in {1,2,\cdots,d}$.

Other RNN cells also can compose deep RNN via this stacking way such as deep Bi-RNN networks.

Deep Bi-RNN

Attention Mechanism

An attention model is a method that takes $n$ arguments $y_1, \dots, y_n$ and a context $c$. It return a vector $z$ which is supposed to be the summary of the ${y}_i\in \mathbb{R}^{d}$, focusing on information linked to the context $c$. More formally, it returns a weighted arithmetic mean of the $y_i$, and the weights are chosen according the relevance of each $y_i$ given the context $c$. In mathematics, it can be expressed as:

$$ {\alpha}i = softmax(s(y_i,c)) \ z = \sum{i=1}^{n} {\alpha}_i y_i $$

where $s(\cdot, \cdot)$ is the attention scoring function. The attention scoring function $s({y}_i, c)$ is diverse, such as:

  • the additive model $s({y}_i, c) = v^{T} tanh\circ (W {y}_i + U c)$, where $v \in \mathbb{R}^{d}$, $W \in \mathbb{R}^{d\times d}$, $U \in \mathbb{R}^{d}$ are parameters to learn;
  • the inner product model $s({y}_i, c) = \left&lt; {y}_i, c \right&gt;$, i.e. the inner product of ${y}_i, c$;
  • the scaled inner product model $s({y}_i, c) = \frac{\left&lt; {y}_i, c \right&gt;}{d}$,where $d$ is the dimension of input ${y}_i$;
  • the bilinear model $s({y}_i, c) = {y}_i^{T} W c$, where $W\in \mathbb{R}^{d\times d}$ is parameter matrix to learn.

It is always as one component of some complex network as normalization.

Recursive Neural Network

Diagram of Recursive Neural Network

Graph Convolution Network

Graph can be represented as adjacency matrix as shown in Graph Algorithm. However, the adjacency matrix only describe the connections between the nodes. The feature of the nodes does not appear. The node itself really matters. A naive approach is to concatenate the feature matrix $X\in \mathbb{R}^{N\times E}$ and adjacency matrix $A\in \mathbb{R}^{N\times N}$, i.e. $X_{in}=[X, A]\in \mathbb{R}^{N\times (N+E)}$. And what is the output?

How can deep learning apply to them?

For these models, the goal is then to learn a function of signals/features on a graph $G=(V,E)$ which takes as input:

  • A feature description $x_i$ for every node $i$; summarized in a $N\times D$ feature matrix $X$ ($N$: number of nodes, $D$: number of input features)
  • A representative description of the graph structure in matrix form; typically in the form of an adjacency matrix $A$ (or some function thereof)

and produces a node-level output $Z$ (an $N\times F$ feature matrix, where $F$ is the number of output features per node). Graph-level outputs can be modeled by introducing some form of pooling operation (see, e.g. Duvenaud et al., NIPS 2015).

Every neural network layer can then be written as a non-linear function $$ {H}{i+1} = \sigma \circ ({H}{i}, A) $$ with ${H}0 = {X}{in}$ and ${H}_{d} = Z$ (or $Z$ for graph-level outputs), $d$ being the number of layers. The specific models then differ only in how $\sigma$ is chosen and parameterized.

For example, we can consider a simple form of a layer-wise propagation rule $$ {H}{i+1} = \sigma \circ ({H}{i}, A)=\sigma \circ(A {H}{i} {W}{i}) $$ where ${W}_{i}$ is a weight matrix for the $i$-th neural network layer and $\sigma (\cdot)$ is is a non-linear activation function such as ReLU.

  • But first, let us address two limitations of this simple model: multiplication with $A$ means that, for every node, we sum up all the feature vectors of all neighboring nodes but not the node itself (unless there are self-loops in the graph). We can "fix" this by enforcing self-loops in the graph: we simply add the identity matrix $I$ to $A$.

  • The second major limitation is that $A$ is typically not normalized and therefore the multiplication with $A$ will completely change the scale of the feature vectors (we can understand that by looking at the eigenvalues of $A$).Normalizing $A$ such that all rows sum to one, i.e. $D^{−1}A$, where $D$ is the diagonal node degree matrix, gets rid of this problem.

In fact, the propagation rule introduced in Kipf & Welling (ICLR 2017) is given by: $$ {H}{i+1} = \sigma \circ ({H}{i}, A)=\sigma \circ(\hat{D}^{-\frac{1}{2}} \hat{A} \hat{D}^{-\frac{1}{2}} {H}{i} {W}{i}), $$ with $\hat{A}=A+I$, where $I$ is the identity matrix and $\hat{D}$ is the diagonal node degree matrix of $\hat{A}$.

GCN

See more details at Multi-layer Graph Convolutional Network (GCN) with first-order filters.

CNN VS. GCNN

$\color{navy}{\text{Graph convolution network is potential to}}, \cal{reasoning}$ as the blend of $\frak{\text{probabilistic graph model}}$ and $\mit{\text{deep learning}}$.

Generative Adversarial Network

It origins from http://papers.nips.cc/paper/5423-generative-adversarial-nets.pdf.

Generative Adversarial Network

Network Compression

Bayesian Deep Learning

Theories of Deep Learning

Deep Dream
Deep Dream

Probabilistic Programming and Topological Data Analysis

Probabilistic Graphical Model

A graphical model or probabilistic graphical model (PGM) or structured probabilistic model is a probabilistic model for which a graph expresses the conditional dependence structure between random variables. They are commonly used in probability theory, statistics—particularly Bayesian statistics—and machine learning. It is a marriage of graph theory and probability theory.

http://www.cnblogs.com/jesse123/p/7802258.html

Graph Nets library and TDA
Graph net

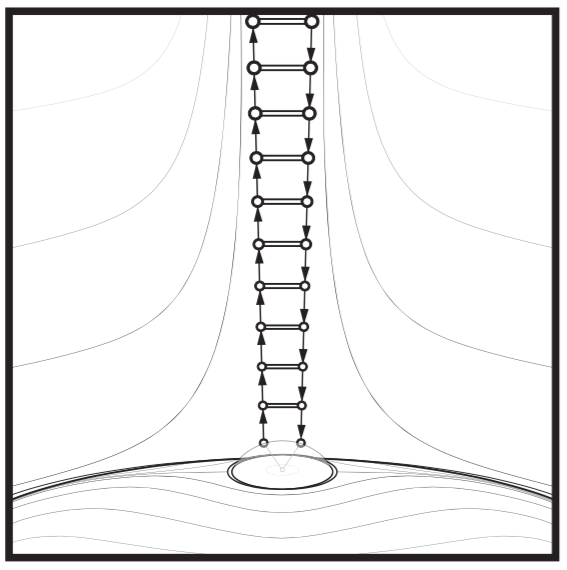

TDA

AutoML

Computational Intelligence

Computational intelligence is rooted in the artificial neural network and evolutionary algorithms.

  1. https://readyforai.com/
  2. http://cleveralgorithms.com/
  3. https://course.elementsofai.com/
  4. https://intelligence.org/blog/
  5. https://github.com/Siyeong-Lee/CIO
  6. https://github.com/owainlewis/awesome-artificial-intelligence
  7. https://github.com/JordanMicahBennett/Supermathematics-and-Artificial-General-Intelligence
  8. https://github.com/gopala-kr/AI-Learning-Roadmap
  9. http://emergentcomputation.com/Pseudo.html
  10. https://wiki.opencog.org/w/Special:WhatLinksHere/The_Open_Cognition_Project
  11. 人工智能(AI)资料大全 - 猿助猿的文章 - 知乎
$\color{lime}{\text{路漫漫其修远兮，吾将上下而求索。}}$

Stay hungry, stay young, stay foolish, stay curious, and above all, stay humble because just when you think got all the answers, is the moment when some bitter twist of fate in the universe will remind you that you very much don't. --Tom Hiddleston

Footnotes

  1. https://en.wikipedia.org/wiki/Probability_axioms ↩

  2. List of probability distributions in Wikipedia ↩

  3. Continuous distribution ↩

  4. https://www.wikiwand.com/en/Power_law ↩

  5. This is Professor Tian Guoliang(Gary)'s webpage in SUSTech. ↩ ↩2

  6. https://en.wikipedia.org/wiki/Thomas_Bayes ↩

  7. All of Statistics ↩ ↩2

  8. http://www.bioinfo.org.cn/~wangchao/maa/Numerical_Optimization.pdf ↩

  9. Professor He Bingsheng in SUSTech. ↩

  10. http://wpmedia.wolfram.com/uploads/sites/13/2018/02/03-4-2.pdf ↩

  11. https://www.intelligent-optimization.org/LIONbook/ ↩ ↩2 ↩3

  12. https://www.manning.com/books/spark-graphx-in-action ↩

  13. http://www.cs.toronto.edu/~hinton/absps/NatureDeepReview.pdf ↩
