Wriststrap

A Twitter Bootstrap inspired framework for Appcelerator Titanium (Alloy)

Installation:

Clone the git project to your local machine: git clone https://github.com/TNuzzi/wriststrap.git
Copy the themes directory to the app directory under your Appcelerator mobile project
Edit the config.json (in your mobile project) and add the following entry: "theme":"wriststrap" to the "global": json section (more details here).
Rebuild your mobile project

Performance note If you are planning on using addClass/resetClass/etc. be sure to keep the theme app.tss relatively small. Due to the way TSS syling is implemented, Alloy will create a _style.js file containing a complete array of the theme TSS (plus views specific tss) for each of your views. When you call *Class function it will load the _style.js file. If there is a large number of entries it could take a while.

Since discovering this, I have greatly reduced the entries of the wriststrap app.tss file. I have removed the glyphish entries and put them in a seperate file (add them as needed). I have removed a majority of the h-,w-,t-,b-,l-, and r- entries. I kept the percentages but reduced the TSS that spaced by dp value. w- and h- end at 400dp, t- and b- end at 200dp and l- and r- end at 100dp.

Version: Version 1

Device/Platform	Support	Version
iPhone	Supported	Version 1
iPad	Supported	Version 1
Android	Supported	Version 1
Mobile Web	Next	Version 2
Blackberry	Not sure	Version ?
Tizen	Not sure	Version ?

Examples

Cut and paste examples are available at the Wriststrap Examples github repo.

About

Wriststrap was born out of the need to quickly prototype and visualize mobile UI in the Appcelerator Titanium Alloy framework. With the creation of the Alloy, Titanium now has the ability to apply CSS class like attributes to UI elements (think HTML). As with HTML this allow for a clean seperation from layout logic and application functionality (contained within JS files). Wriststrap applies the same principles as Bootstrap in allowing non-visual designers (like myself) to create and layout a visually aesthetically pleasing looking mobile UI.

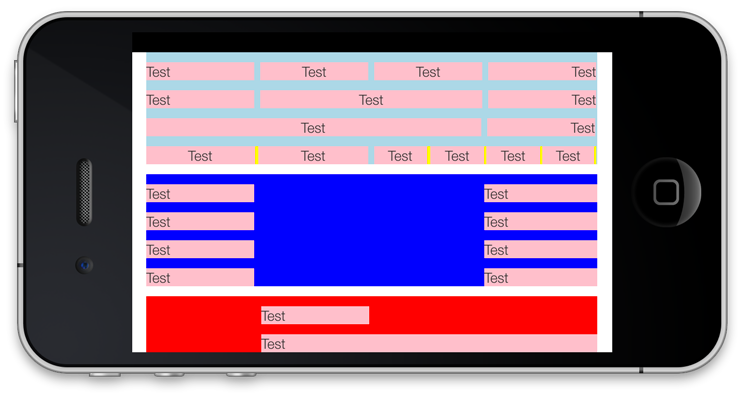

Code example

The following is an example of TSS classes being applied to different UI elements. There is no code in the JS files for layout.

<Alloy>
    <Window class="t-20">
        <View class="container bg-lightblue">
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-1 col-spacing text-center bg-pink">Test</Label>
            <Label class="col col-1 col-spacing text-center bg-pink">Test</Label>
            <Label class="col col-1 col-spacing text-right bg-pink">Test</Label>
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-2 col-spacing text-center bg-pink">Test</Label>
            <Label class="col col-1 col-spacing text-right bg-pink">Test</Label>
            <Label class="col col-3 text-center bg-pink">Test</Label>
            <Label class="col col-1 col-spacing text-right bg-pink">Test</Label>
            <View class="col col-2 bg-yellow lo-horizontal">
                <Label class="col-2 text-center bg-pink">Test</Label>
                <Label class="col-2 col-spacing text-center bg-pink">Test</Label>
            </View>
            <View class="col col-2 col-spacing bg-yellow lo-horizontal">
                <Label class="col-1 text-center bg-pink">Test</Label>
                <Label class="col-1 col-spacing text-center bg-pink">Test</Label>
                <Label class="col-1 col-spacing text-center bg-pink">Test</Label>
                <Label class="col-1-end col-spacing text-center bg-pink">Test</Label>
            </View>
        </View>
        <View class="container bg-blue">
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-1-push-2 bg-pink">Test</Label>
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-1-push-2 bg-pink">Test</Label>
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-1-push-2 bg-pink">Test</Label>
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-1-push-2 bg-pink">Test</Label>
        </View>
        <View class="container bg-red">
            <Label class="col col-1-push-1 bg-pink">Test</Label>
            <Label class="col col-3-push-1 bg-pink">Test</Label>
            <Label class="col col-3-push-1 bg-pink">Test</Label>
            <Label class="col col-3-push-1 bg-pink">Test</Label>
            <Label class="col col-1 bg-pink">Test</Label>
            <Label class="col col-1-push-2 bg-pink">Test</Label>
        </View>
        <View class="layout-default lo-composite bg-purple">
            <View class="footer bg-25">
                <Label class="col-4 small text-right color-white">Footer</Label>
            </View>
        </View>
    </Window>
</Alloy>

Wriststrap TSS Classes

Overview

The goal of Wriststrap is to simplify the UI by have a set of tss classes that are globally available. As with Bootstrap, you can override and/or add your own styling along with Wriststrap by using the tss syling override mechanism. Wriststrap is intended to be used as a starting point for developing a rich set of tss libraries for styling your app.

Mobile first

Along with simpliciation, Wriststrap is intended to make Mobile first a priority. For example, the Button element default to 44dp (height) as is recommend. By no means will it be exahustive but will get your app started in the right direction.

Default Element styling

The following table is used to show the override default styling of UI Elements.

UI Element	Default styling
Window	layout: 'vertical', backgroundColor: 'ffffff'
View	layout: 'vertical', backgroundColor: 'ffffff'
ScrollView	layout: 'vertical', backgroundColor: 'ffffff'
Label	font: { fontFamily: 'HelveticaNeue-Light', fontSize: '14dp', }, color: '333333'
Button	font: { fontFamily: 'HelveticaNeue-Light', fontSize: '14dp' }, height: '44dp', width: '100%'
TableView	backgroundColor: 'transparent', width: '100%', height: Ti.UI.FILL
TableViewRow	font: { fontFamily: 'HelveticaNeue-Light', fontSize: '14dp' }
TextField	backgroundColor: 'ffffff', color: '000000', paddingLeft: '10%', paddingRight: '10%',

Position helper classes

A set of position TSS helper classes have been created to help position and layout the UI elements. The helper classes both consist of static numbers (specified with dp) and percentages.

The percentage values that can be used with the - class are 1 - 100 in increments of 5. e.g. w-100% or h-50%

For the static number designation a number between 1 - 400 (h- and w-) / 200 (l- and r-) / 100 (t- and b-) in increments of 5 can be used, with the exception of 1 - 10. e.g. r-4 or l-20

Both h- and w- have size and fill TSS class. These apply either the Ti.UI.FILL or Ti.UI.SIZE accordingly.

A set of TSS classes can be used to easily position a UI element to the right pull-right or left pull-left.

TSS Class	Styling
t-<%> t-<number>	Sets the `top` value to the specified value.
b-<%> b-<number>	Sets the `bottom` value to the specified value.
l-<%> l-<number>	Sets the `left` value to the specified value.
r-<%> r-<number>	Sets the `right` value to the specified value.
w-<%> w-<number> w-size w-fill	Sets the `width` value to the specified value.
h-<%> h-<number> h-size h-fill	Sets the `height` value to the specified value.

Example:

<View class="w-100% h-50%">
    <Label class="w-25 h-size">Test</Label>
    <Label class="l-25 h-30 w-15">Test</Label>
</View>

`layout` TSS helper classes

A set of TSS classes can be used to set the layout behavior for the UI element. The syntax is lo- layout behavior.

TSS Class	Styling
lo-composite	Sets the `layout` property to `composite`
lo-vertical	Sets the `layout` property to `vertical`
lo-horizontal	Sets the `layout` property to `horizontal`

Example:

<View class="lo-horizontal">
    <Label class="w-25">Test</Label>
    <Label class="w-25">Test</Label>
    <View class="lo-vertical">
        <Label class="w-25">Test</Label>
        <Label class="w-25">Test</Label>
    </View>
</View>

Styling

Status bar style (statusBarStyle) used the Window UI element.

TSS Class	Styling
sb-style-default	Titanium.UI.iPhone.StatusBar.DEFAULT
sb-style-gray	Titanium.UI.iPhone.StatusBar.GRAY
sb-style-opaque-black	Titanium.UI.iPhone.StatusBar.OPAQUE_BLACK
sb-style-light-content	Titanium.UI.iPhone.StatusBar.LIGHT_CONTENT
sb-style-translucent-black	Titanium.UI.iPhone.StatusBar.TRANSLUCENT_BLACK

Window UI helpers

TSS Class	Styling
fullscreen	fullscreen: true
hideNav	navBarHidden: true
showNav	navBarHidden: true

Borders

There are set of TSS classes that can be used for putting a border around any UI element (that supports it). The TSS classes are rounded-border-4, rounded-border-6, and rounded-border-10. The number at the end of the TSS style name is in refernce to the border radius.

Layout

Wriststrap uses the concept of CSS grid systems for layout out UI elements and content. Using TSS styles on the UI elements, Wriststrap allows you to layout out your entire UI without having to use JS for layout (for most cases).

Layout TSS Details

Using the TSS classes, it applies a 3% gutter on either side of the content. This allow for a horizontal visual break in the content and layout. The two TSS classes used for setting this layout are:

layout-default simply applies the layout gutters on the UI element.
container is used to setup the grid system to be used by the 'col-' system.

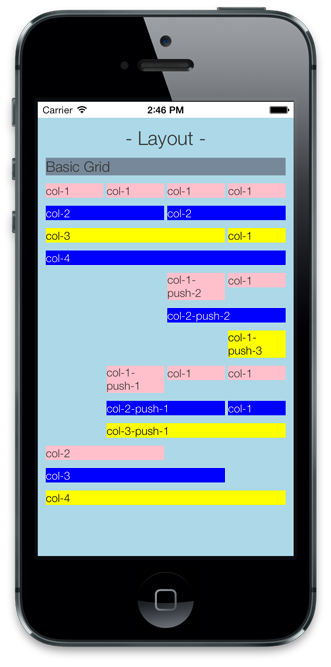

Grid System

As with other CSS grid layout system, Wriststrap uses the same basic concepts to allow the developer to simply add TSS classes to a UI element to specify its position on screen. The image above illustrates how it works by apply the TSS classes to Label and View. The use of container is required on the outer element in order to use the col-<number> classes.

At this time, this layout system is based on a grid system of 4 columns (for handheld devices). The system also allows for embedding columns within columns. The horizontal height of the columns are set to Ti.UI.SIZE.

TSS Class	Styling
col	Sets the top of `10dp` to provide a visual break from the content above.
col-<number>	Sets the width of the UI element. The number indicates how many grid columns it should occupy. The number should be between 1 and 4
col-1-end	Use this class if you are embedded 1 column elements. This is temporary fix.
col-<number>-push-<number>	Pushes the column a set number of columns before setting the width of the UI element. Allows you to set elements further right. For a col-1 the push number can between 1 and 3. For col-2 the push number be between 1 and 2. Finally a col-3 the push number can only be set to 1
col-spacing	Provides the columns with a visual break between each column

Example:

<View class="container">
    <Label class="col col-1">Test</Label>
    <Label class="col col-1 col-spacing">Test</Label>
    <Label class="col col-1 col-spacing">Test</Label>
    <Label class="col col-1 col-spacing">Test</Label>
    <Label class="col col-1">Test</Label>
    <Label class="col col-2 col-spacing">Test</Label>
    <Label class="col col-1 col-spacing">Test</Label>
    <Label class="col col-3">Test</Label>
    <Label class="col col-1 col-spacing">Test</Label>
    <View class="col col-2 lo-horizontal">
        <Label class="col-2">Test</Label>
        <Label class="col-2 col-spacing">Test</Label>
    </View>
    <View class="col col-2 col-spacing lo-horizontal">
        <Label class="col-1">Test</Label>
        <Label class="col-1 col-spacing">Test</Label>
        <Label class="col-1 col-spacing">Test</Label>
        <Label class="col-1-end col-spacing">Test</Label>
    </View>
</View>

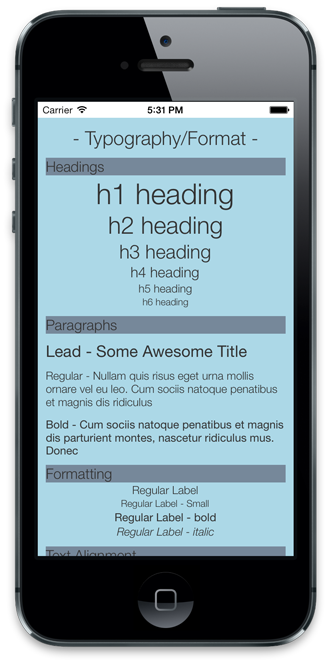

Typography

The Typography TSS classes will help with styling your Label and content. These TSS classes provide a general type of functionality around font sizes, types and text positioning.

Typography TSS Details

Headings

As with HTML, Wriststrap provide the h1 - h6 text weight styling. h1 being used for large heads or banner text where as h6 is used for sub-headings.

Example:

<Label id="label" class="h1">h1 heading</Label>
<Label id="label" class="h2">h2 heading</Label>
<Label id="label" class="h3">h3 heading</Label>
<Label id="label" class="h4">h4 heading</Label>
<Label id="label" class="h5">h5 heading</Label>
<Label id="label" class="h6">h6 heading</Label>

Paragraphs

Paragraphs also borcol from HTML but with a but of twist. There is formatting around the paragraph TSS classes. In that if the device is resized (landscape -> portrait) the paragragh resized appropriately.

TSS Class	Styling
p	Set `p` on the outer `View` that will take contain the `p-content` `Label(s)`. It will ensure that the paragraph keeps the formatting.
p-content	Generally used on `Label` element inside the `View` containing the `p` TSS class. Can also be use in `wells`
lead	Used to title paragraph blocks.

Example:

<View class="p">
    <Label class="p-content lead">Lead - Some Awesome Title</Label>
    <Label class="p-content">Regular - Nullam quis risus eget urna mollis ornare vel eu
                             leo. Cum sociis natoque penatibus et magnis dis ridiculus
    </Label>
    <Label class="p-content bold">Bold - Cum sociis natoque penatibus et magnis dis
                                  parturient montes, nascetur ridiculus mus. Donec
    </Label>
</View>

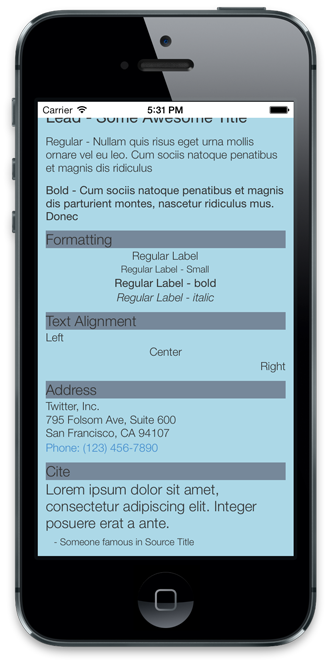

Text Formatting and Positioning

These TSS classes provide a basic set of formatting and positing styles. They can be applied to any UI elcodeent that formats with the font style.

TSS Class	Styling

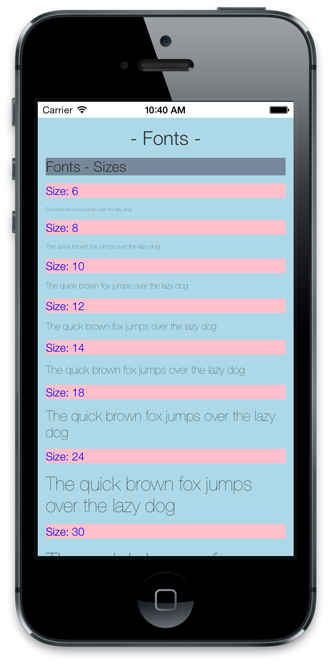

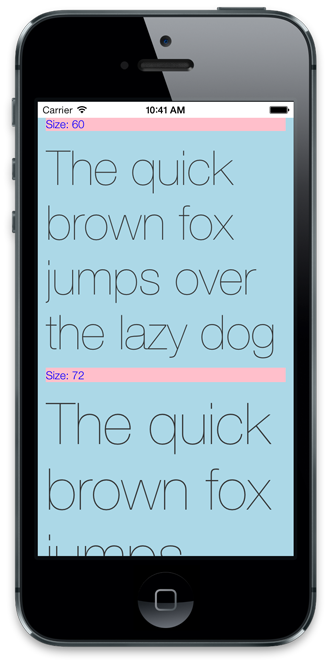

small	Sets the fontSize smaller than the default: `fontSize: '12dp'`
large	Sets the fontSize larger than the default: `fontSize: '18dp'`
bold	Bolds the text (uses HelveticaNeue) but keeps the same font size
em	Italicises the text but keeps the same font size
text-left	Positions the text at left justified
text-center	Positions the text at center justified
text-right	Positions the text at right justified

NOTE: Make sure when using the text-<justify> style the Label is defined at 100% width.

Example:

<Label id="label" class="">Regular Label</Label>
<Label id="label" class="small">Regular Label - Small</Label>
<Label id="label" class="bold">Regular Label - bold</Label>
<Label id="label" class="em">Regular Label - italic</Label>
<Label id="label" class="w-100% text-left">Left</Label>
<Label id="label" class="w-100% text-center">Center</Label>
<Label id="label" class="w-100% text-right">Right</Label>

Address and Cite

These two set of TSS classes are convenient classes used to format addresses and quotes. As with paragraphs (p) an outer View is needed to ensure correct formatting when the device is resized.

Address

TSS Class	Styling
address	Used to setup the outer `View` for the address title and/or content
address-title	Formats the address title text
address-content	Container for the address content. Formats each line of the address appropriately.

Cite

TSS Class	Styling
cite	Used to setup the outer `View` for the quote
cite-quote	Formats the text of the quote
cite-source	Formats the text of the quote source

Example:

<View class="address">
    <Label class="address-title">Twitter, Inc.</Label>
    <Label class="address-content">795 Folsom Ave, Suite 600\nSan Francisco, CA 94107</Label>
    <Label class="address-content-bold color-primary">Phone: (123) 456-7890</Label>
</View>

<View class="cite">
    <Label class="cite-quote text-left">Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer posuere erat a ante.</Label>
    <Label class="cite-source text-left">- Someone famous in Source Title</Label>
</View>

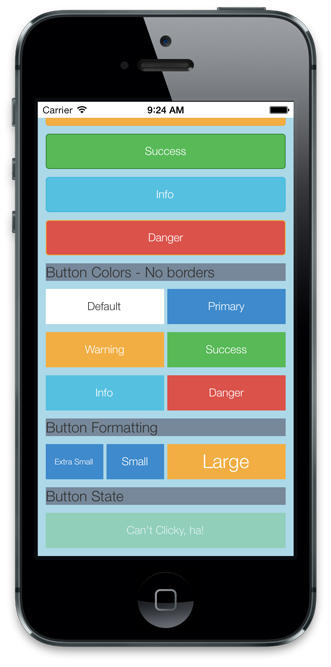

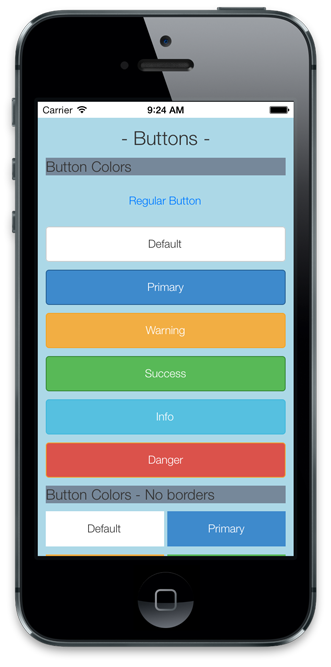

Buttons

The button themes in Wriststrap borcol from Bootstrap. They provide a basic and simply way to create buttons with a nice color scheme. For the rounded edges of the button it was choosen to use a View around the button to create the desired effect.

Button TSS Details

Button types

As with Bootstrap, several color schemes are available to the Button UI element.

Square Buttons

TSS Class	Styling
btn-default	Colors the button with the default color scheme. See above for a visual example.
btn-primary	Colors the button with the primary color scheme. See above for a visual example.
btn-warning	Colors the button with the warning color scheme. See above for a visual example.
btn-success	Colors the button with the success color scheme. See above for a visual example.
btn-info	Colors the button with the info color scheme. See above for a visual example.
btn-danger	Colors the button with the danger color scheme. See above for a visual example.

Example:

<Button class="col-2 btn-default">Default</Button>
<Button class="col-2 btn-primary">Primary</Button>
<Button class="col-2 btn-warning">Warning</Button>
<Button class="col-2 btn-success">Success</Button>
<Button class="col-2 btn-info">Info</Button>
<Button class="col-2 btn-danger">Danger</Button>

Rounded-corner Buttons

The rounded corner effect is achieved by surrounding the Button with a View and using the View to apply the colored border.

TSS Class	Styling
btn-default	Used on the outer `View` to set the border properties.
btn-border-default	Colors the border with the default color scheme. See above for a visual example.
btn-border-primary	Colors the border with the primary color scheme. See above for a visual example.
btn-border-warning	Colors the border with the warning color scheme. See above for a visual example.
btn-border-success	Colors the border with the success color scheme. See above for a visual example.
btn-border-info	Colors the border with the info color scheme. See above for a visual example.
btn-border-danger	Colors the border with the danger color scheme. See above for a visual example.

Examples:

<View class="col col-4">
    <Button>Regular Button</Button>
</View>
<View class="col col-4 btn-border btn-border-default">
    <Button class="btn-default">Default</Button>
</View>
<View class="col col-4 btn-border btn-border-primary">
    <Button class="btn-primary">Primary</Button>
</View>
<View class="col col-4 btn-border btn-border-warning">
    <Button class="btn-warning">Warning</Button>
</View>
<View class="col col-4 btn-border btn-border-success">
    <Button class="btn-success">Success</Button>
</View>
<View class="col col-4 btn-border btn-border-info">
    <Button class="btn-info">Info</Button>
</View>
<View class="col col-4 btn-border btn-border-danger">
    <Button class="btn-danger">Danger</Button>
</View>

Button Styling

As a convenience, there are a few TSS classes that set different font sizes for the Button text. Also available is a TSS class that make the button appear to be disabled.

TSS Class	Styling
btn-xs	Sets the `fontSize` to 10dp.
btn-sm	Sets the `fontSize` to 12dp.
btn-lg	Sets the `fontSize` to 20dp.
btn-diabled	Lightens the color of the button to make it appear disabled. NOTE this TSS class does not actually disable button click. Use TSS class `disabled` to disable clicks

Example:

<View class="col col-1">
    <Button class="btn btn-primary btn-xs">Extra Small</Button>
</View>
<View class="col col-1 col-spacing">
    <Button class="btn btn-primary btn-sm">Small</Button>
</View>
<View class="col col-2 col-spacing">
    <Button class="btn btn-warning btn-lg">Large</Button>
</View>
<View class="col col-4">
    <Label class="w-100% text-left h4 bg-lightslategray">Button State</Label>
</View>
<View class="col col-4">
    <Button class="btn btn-success btn-disabled disabled">Can't Clicky, ha!</Button>
</View>

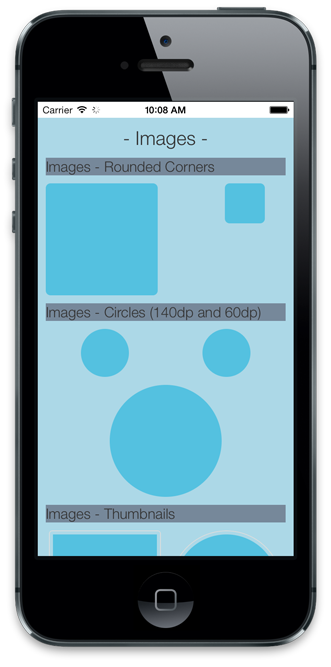

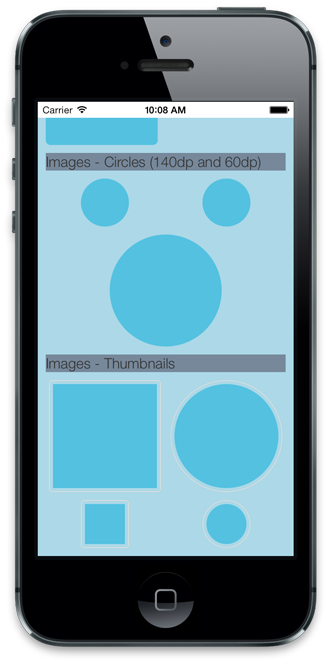

Images

This set of TSS classes is used to stylize an image using the ImageView UI element. The rounded corner TSS does not have an image size restriction however the circle and thumbnail. The restriction is the image has to be specified at a given height and width. For larger images the requirement is 140dp and the smaller size is 60dp for height and width.

Image TSS Details

TSS Class	Styling
img-rounded	Added rounded corners to image. No restriction on image height or width.
img-circle	Transforms image into a circle image. Image will be resized to 140dp. (height and width)
img-circle-sm	Transforms image into a circle image. Image will be resized to 60dp. (height and width)
thumbnail-container	Used on the outer `View` to setup the thumbnail effect.
img-thumbnail	Resizes the image to a thumbnail. Image will be resized to 130dp. (height and width)
thumbnail-circle-container	Used on the outer `View` to setup the circle thumbnail effect.
img-thumbnail-circle	Resizes the image to a thumbnail. Image will be resized to 130dp. (height and width)
thumbnail-container-sm	Used on the outer `View` to setup the thumbnail effect.
img-thumbnail-sm	Resizes the image to a thumbnail. Image will be resized to 50dp. (height and width)
thumbnail-circle-container-sm	Used on the outer `View` to setup the circle thumbnail effect.
img-thumbnail-circle-sm	Resizes the image to a thumbnail. Image will be resized to 50dp. (height and width)

Example:

<ImageView class="img-rounded" image="sample-img.png" />
<ImageView class="img-rounded w-50 h-50" image="sample-img.png" />
<ImageView class="img-circle-sm" image="sample-img.png" />
<ImageView class="img-circle-sm" image="sample-img.png" />
<ImageView class="img-circle" image="sample-img.png" />
<View class="thumbnail-container">
    <ImageView class="img-thumbnail" image="sample-img.png" />
</View>
<View class="thumbnail-circle-container">
    <ImageView class="img-thumbnail-circle" image="sample-img.png" />
</View>
<View class="thumbnail-container-sm">
    <ImageView class="img-thumbnail-sm" image="sample-img.png" />
</View>
<View class="thumbnail-circle-container-sm">
    <ImageView class="img-thumbnail-circle-sm" image="sample-img.png" />
</View>

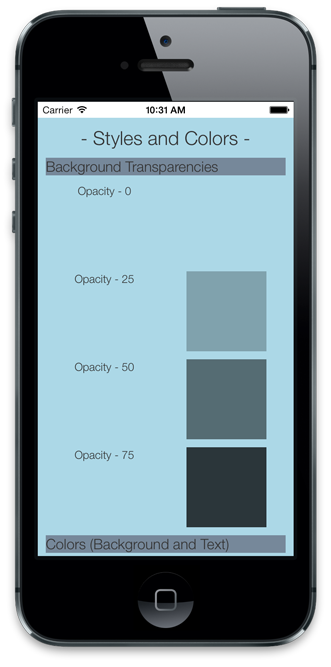

Styles And Colors

A set of TSS colors class. Also provided is a semi-transparent image to be set on View. This allows for semi-transparent background without having the set the opacity (which affect the sub views). The colors are provided both as backgroundColor and color. The TSS suffix accordingly is bg-<color name> and color-<color name>.

Styles And Colors TSS Details

For transparent background use TSS classes bg-0 (fully transparent), bg-25 (75% transparent), bg-50 (50% transparent) or bg-75 (25% transparent).

NOTE MD is not allowing me to color the table cells to give a visual color with the hex number. For now here is the TSS class name with the assigned hex numbers.

Background, Color, Table Seperator Color, and Scrollable Page Control Seperator TSS classes

bg-muted color-muted sep-color-muted pg-cntl-color-muted	'999999'	bg-primary color-primary sep-color-primary pg-cntl-color-primary	'428bca'
bg-warning color-warning sep-color-warning pg-cntl-color-warning	'c09853'	bg-danger color-danger sep-color-danger pg-cntl-color-danger	'b94a48'
bg-success color-success sep-color-success pg-cntl-color-success	'468847'	bg-info color-info sep-color-info pg-cntl-color-info	'3a87ad'
bg-transparent color-transparent sep-color-transparent pg-cntl-color-transparent	'transparent'	bg-aliceblue color-aliceblue sep-color-aliceblue pg-cntl-color-aliceblue	'F0F8FF'
bg-antiquewhite color-antiquewhite sep-color-antiquewhite pg-cntl-color-antiquewhite	'FAEBD7'	bg-aqua color-aqua sep-color-aqua pg-cntl-color-aqua	'00FFFF'
bg-aquamarine color-aquamarine sep-color-aquamarine pg-cntl-color-aquamarine	'7FFFD4'	bg-azure color-azure sep-color-azure pg-cntl-color-azure	'F0FFFF'
bg-beige color-beige sep-color-beige pg-cntl-color-beige	'F5F5DC'	bg-bisque color-bisque sep-color-bisque pg-cntl-color-bisque	'FFE4C4'
bg-black color-black sep-color-black pg-cntl-color-black	'000000'	bg-blanchedalmond color-blanchedalmond sep-color-blanchedalmond pg-cntl-color-blanchedalmond	'FFEBCD'
bg-blue color-blue sep-color-blue pg-cntl-color-blue	'0000FF'	bg-blueviolet color-blueviolet sep-color-blueviolet pg-cntl-color-blueviolet	'8A2BE2'
bg-brown color-brown sep-color-brown pg-cntl-color-brown	'A52A2A'	bg-burlywood color-burlywood sep-color-burlywood pg-cntl-color-burlywood	'DEB887'
bg-cadetblue color-cadetblue sep-color-cadetblue pg-cntl-color-cadetblue	'5F9EA0'	bg-chartreuse color-chartreuse sep-color-chartreuse pg-cntl-color-chartreuse	'7FFF00'
bg-chocolate color-chocolate sep-color-chocolate pg-cntl-color-chocolate	'D2691E'	bg-coral color-coral sep-color-coral pg-cntl-color-coral	'FF7F50'
bg-cornflowerblue color-cornflowerblue sep-color-cornflowerblue pg-cntl-color-cornflowerblue	'6495ED'	bg-cornsilk color-cornsilk sep-color-cornsilk pg-cntl-color-cornsilk	'FFF8DC'
bg-crimson color-crimson sep-color-crimson pg-cntl-color-crimson	'DC143C'	bg-cyan color-cyan sep-color-cyan pg-cntl-color-cyan	'00FFFF'
bg-darkblue color-darkblue sep-color-darkblue pg-cntl-color-darkblue	'00008B'	bg-darkcyan color-darkcyan sep-color-darkcyan pg-cntl-color-darkcyan	'008B8B'
bg-darkgoldenrod color-darkgoldenrod sep-color-darkgoldenrod pg-cntl-color-darkgoldenrod	'B8860B'	bg-darkgray color-darkgray sep-color-darkgray pg-cntl-color-darkgray	'A9A9A9'
bg-darkgreen color-darkgreen sep-color-darkgreen pg-cntl-color-darkgreen	'006400'	bg-darkkhaki color-darkkhaki sep-color-darkkhaki pg-cntl-color-darkkhaki	'BDB76B'
bg-darkmagenta color-darkmagenta sep-color-darkmagenta pg-cntl-color-darkmagenta	'8B008B'	bg-darkolivegreen color-darkolivegreen sep-color-darkolivegreen pg-cntl-color-darkolivegreen	'556B2F'
bg-darkorange color-darkorange sep-color-darkorange pg-cntl-color-darkorange	'FF8C00'	bg-darkorchid color-darkorchid sep-color-darkorchid pg-cntl-color-darkorchid	'9932CC'
bg-darkred color-darkred sep-color-darkred pg-cntl-color-darkred	'8B0000'	bg-darksalmon color-darksalmon sep-color-darksalmon pg-cntl-color-darksalmon	'E9967A'
bg-darkseagreen color-darkseagreen sep-color-darkseagreen pg-cntl-color-darkseagreen	'8FBC8F'	bg-darkslateblue color-darkslateblue sep-color-darkslateblue pg-cntl-color-darkslateblue	'483D8B'
bg-darkslategray color-darkslategray sep-color-darkslategray pg-cntl-color-darkslategray	'2F4F4F'	bg-darkturquoise color-darkturquoise sep-color-darkturquoise pg-cntl-color-darkturquoise	'00CED1'
bg-darkviolet color-darkviolet sep-color-darkviolet pg-cntl-color-darkviolet	'9400D3'	bg-deeppink color-deeppink sep-color-deeppink pg-cntl-color-deeppink	'FF1493'
bg-deepskyblue color-deepskyblue sep-color-deepskyblue pg-cntl-color-deepskyblue	'00BFFF'	bg-dimgray color-dimgray sep-color-dimgray pg-cntl-color-dimgray	'696969'
bg-dodgerblue color-dodgerblue sep-color-dodgerblue pg-cntl-color-dodgerblue	'1E90FF'	bg-firebrick color-firebrick sep-color-firebrick pg-cntl-color-firebrick	'B22222'
bg-floralwhite color-floralwhite sep-color-floralwhite pg-cntl-color-floralwhite	'FFFAF0'	bg-forestgreen color-forestgreen sep-color-forestgreen pg-cntl-color-forestgreen	'228B22'
bg-fuchsia color-fuchsia sep-color-fuchsia pg-cntl-color-fuchsia	'FF00FF'	bg-gainsboro color-gainsboro sep-color-gainsboro pg-cntl-color-gainsboro	'DCDCDC'
bg-ghostwhite color-ghostwhite sep-color-ghostwhite pg-cntl-color-ghostwhite	'F8F8FF'	bg-gold color-gold sep-color-gold pg-cntl-color-gold	'FFD700'
bg-goldenrod color-goldenrod sep-color-goldenrod pg-cntl-color-goldenrod	'DAA520'	bg-gray color-gray sep-color-gray pg-cntl-color-gray	'808080'
bg-green color-green sep-color-green pg-cntl-color-green	'008000'	bg-greenyellow color-greenyellow sep-color-greenyellow pg-cntl-color-greenyellow	'ADFF2F'
bg-honeydew color-honeydew sep-color-honeydew pg-cntl-color-honeydew	'F0FFF0'	bg-hotpink color-hotpink sep-color-hotpink pg-cntl-color-hotpink	'FF69B4'
bg-indianred color-indianred sep-color-indianred pg-cntl-color-indianred	'CD5C5C'	bg-indigo color-indigo sep-color-indigo pg-cntl-color-indigo	'4B0082'
bg-ivory color-ivory sep-color-ivory pg-cntl-color-ivory	'FFFFF0'	bg-khaki color-khaki sep-color-khaki pg-cntl-color-khaki	'F0E68C'
bg-lavender color-lavender sep-color-lavender pg-cntl-color-lavender	'E6E6FA'	bg-lavenderblush color-lavenderblush sep-color-lavenderblush pg-cntl-color-lavenderblush	'FFF0F5'
bg-lawngreen color-lawngreen sep-color-lawngreen pg-cntl-color-lawngreen	'7CFC00'	bg-lemonchiffon color-lemonchiffon sep-color-lemonchiffon pg-cntl-color-lemonchiffon	'FFFACD'
bg-lightblue color-lightblue sep-color-lightblue pg-cntl-color-lightblue	'ADD8E6'	bg-lightcoral color-lightcoral sep-color-lightcoral pg-cntl-color-lightcoral	'F08080'
bg-lightcyan color-lightcyan sep-color-lightcyan pg-cntl-color-lightcyan	'E0FFFF'	bg-lightgoldenrodyellow color-lightgoldenrodyellow sep-color-lightgoldenrodyellow pg-cntl-color-lightgoldenrodyellow	'FAFAD2'
bg-lightgray color-lightgray sep-color-lightgray pg-cntl-color-lightgray	'D3D3D3'	bg-lightgreen color-lightgreen sep-color-lightgreen pg-cntl-color-lightgreen	'90EE90'
bg-lightpink color-lightpink sep-color-lightpink pg-cntl-color-lightpink	'FFB6C1'	bg-lightsalmon color-lightsalmon sep-color-lightsalmon pg-cntl-color-lightsalmon	'FFA07A'
bg-lightseagreen color-lightseagreen sep-color-lightseagreen pg-cntl-color-lightseagreen	'20B2AA'	bg-lightskyblue color-lightskyblue sep-color-lightskyblue pg-cntl-color-lightskyblue	'87CEFA'
bg-lightslategray color-lightslategray sep-color-lightslategray pg-cntl-color-lightslategray	'778899'	bg-lightsteelblue color-lightsteelblue sep-color-lightsteelblue pg-cntl-color-lightsteelblue	'B0C4DE'
bg-lightyellow color-lightyellow sep-color-lightyellow pg-cntl-color-lightyellow	'FFFFE0'	bg-lime color-lime sep-color-lime pg-cntl-color-lime	'00FF00'
bg-limegreen color-limegreen sep-color-limegreen pg-cntl-color-limegreen	'32CD32'	bg-linen color-linen sep-color-linen pg-cntl-color-linen	'FAF0E6'
bg-magenta color-magenta sep-color-magenta pg-cntl-color-magenta	'FF00FF'	bg-maroon color-maroon sep-color-maroon pg-cntl-color-maroon	'800000'
bg-mediumaquamarine color-mediumaquamarine sep-color-mediumaquamarine pg-cntl-color-mediumaquamarine	'66CDAA'	bg-mediumblue color-mediumblue sep-color-mediumblue pg-cntl-color-mediumblue	'0000CD'
bg-mediumorchid color-mediumorchid sep-color-mediumorchid pg-cntl-color-mediumorchid	'BA55D3'	bg-mediumpurple color-mediumpurple sep-color-mediumpurple pg-cntl-color-mediumpurple	'9370DB'
bg-mediumseagreen color-mediumseagreen sep-color-mediumseagreen pg-cntl-color-mediumseagreen	'3CB371'	bg-mediumslateblue color-mediumslateblue sep-color-mediumslateblue pg-cntl-color-mediumslateblue	'7B68EE'
bg-mediumspringgreen color-mediumspringgreen sep-color-mediumspringgreen pg-cntl-color-mediumspringgreen	'00FA9A'	bg-mediumturquoise color-mediumturquoise sep-color-mediumturquoise pg-cntl-color-mediumturquoise	'48D1CC'
bg-mediumvioletred color-mediumvioletred sep-color-mediumvioletred pg-cntl-color-mediumvioletred	'C71585'	bg-midnightblue color-midnightblue sep-color-midnightblue pg-cntl-color-midnightblue	'191970'
bg-mintcream color-mintcream sep-color-mintcream pg-cntl-color-mintcream	'F5FFFA'	bg-mistyrose color-mistyrose sep-color-mistyrose pg-cntl-color-mistyrose	'FFE4E1'
bg-moccasin color-moccasin sep-color-moccasin pg-cntl-color-moccasin	'FFE4B5'	bg-navajowhite color-navajowhite sep-color-navajowhite pg-cntl-color-navajowhite	'FFDEAD'
bg-navy color-navy sep-color-navy pg-cntl-color-navy	'000080'	bg-oldlace color-oldlace sep-color-oldlace pg-cntl-color-oldlace	'FDF5E6'
bg-olive color-olive sep-color-olive pg-cntl-color-olive	'808000'	bg-olivedrab color-olivedrab sep-color-olivedrab pg-cntl-color-olivedrab	'6B8E23'
bg-orange color-orange sep-color-orange pg-cntl-color-orange	'FFA500'	bg-orangered color-orangered sep-color-orangered pg-cntl-color-orangered	'FF4500'
bg-orchid color-orchid sep-color-orchid pg-cntl-color-orchid	'DA70D6'	bg-palegoldenrod color-palegoldenrod sep-color-palegoldenrod pg-cntl-color-palegoldenrod	'EEE8AA'
bg-palegreen color-palegreen sep-color-palegreen pg-cntl-color-palegreen	'98FB98'	bg-paleturquoise color-paleturquoise sep-color-paleturquoise pg-cntl-color-paleturquoise	'AFEEEE'
bg-palevioletred color-palevioletred sep-color-palevioletred pg-cntl-color-palevioletred	'DB7093'	bg-papayawhip color-papayawhip sep-color-papayawhip pg-cntl-color-papayawhip	'FFEFD5'
bg-peachpuff color-peachpuff sep-color-peachpuff pg-cntl-color-peachpuff	'FFDAB9'	bg-peru color-peru sep-color-peru pg-cntl-color-peru	'CD853F'
bg-pink color-pink sep-color-pink pg-cntl-color-pink	'FFC0CB'	bg-plum color-plum sep-color-plum pg-cntl-color-plum	'DDA0DD'
bg-powderblue color-powderblue sep-color-powderblue pg-cntl-color-powderblue	'B0E0E6'	bg-purple color-purple sep-color-purple pg-cntl-color-purple	'800080'
bg-red color-red sep-color-red pg-cntl-color-red	'FF0000'	bg-rosybrown color-rosybrown sep-color-rosybrown pg-cntl-color-rosybrown	'BC8F8F'
bg-royalblue color-royalblue sep-color-royalblue pg-cntl-color-royalblue	'4169E1'	bg-saddlebrown color-saddlebrown sep-color-saddlebrown pg-cntl-color-saddlebrown	'8B4513'
bg-salmon color-salmon sep-color-salmon pg-cntl-color-salmon	'FA8072'	bg-sandybrown color-sandybrown sep-color-sandybrown pg-cntl-color-sandybrown	'F4A460'
bg-seagreen color-seagreen sep-color-seagreen pg-cntl-color-seagreen	'2E8B57'	bg-seashell color-seashell sep-color-seashell pg-cntl-color-seashell	'FFF5EE'
bg-sienna color-sienna sep-color-sienna pg-cntl-color-sienna	'A0522D'	bg-silver color-silver sep-color-silver pg-cntl-color-silver	'C0C0C0'
bg-skyblue color-skyblue sep-color-skyblue pg-cntl-color-skyblue	'87CEEB'	bg-slateblue color-slateblue sep-color-slateblue pg-cntl-color-slateblue	'6A5ACD'
bg-slategray color-slategray sep-color-slategray pg-cntl-color-slategray	'708090'	bg-snow color-snow sep-color-snow pg-cntl-color-snow	'FFFAFA'
bg-springgreen color-springgreen sep-color-springgreen pg-cntl-color-springgreen	'00FF7F'	bg-steelblue color-steelblue sep-color-steelblue pg-cntl-color-steelblue	'4682B4'
bg-tan color-tan sep-color-tan pg-cntl-color-tan	'D2B48C'	bg-teal color-teal sep-color-teal pg-cntl-color-teal	'008080'
bg-thistle color-thistle sep-color-thistle pg-cntl-color-thistle	'D8BFD8'	bg-tomato color-tomato sep-color-tomato pg-cntl-color-tomato	'FF6347'
bg-turquoise color-turquoise sep-color-turquoise pg-cntl-color-turquoise	'40E0D0'	bg-violet color-violet sep-color-violet pg-cntl-color-violet	'EE82EE'
bg-wheat color-wheat sep-color-wheat pg-cntl-color-wheat	'F5DEB3'	bg-white color-white sep-color-white pg-cntl-color-white	'FFFFFF'
bg-whitesmoke color-whitesmoke sep-color-whitesmoke pg-cntl-color-whitesmoke	'F5F5F5'	bg-yellow color-yellow sep-color-yellow pg-cntl-color-yellow	'FFFF00'
bg-yellowgreen color-yellowgreen sep-color-yellowgreen pg-cntl-color-yellowgreen	'9ACD32'

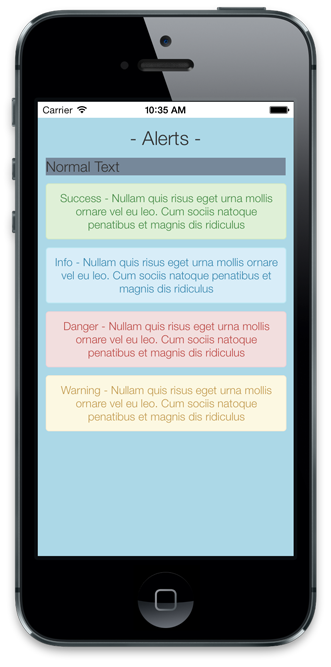

Alerts

Alerts are an easy way to stylize informative message and to notify the user. Alerts are broken into 2 sections the View container and the Label(s) for the content.

Alert TSS Details

TSS Class	Styling
alert-container-success alert-success	Set the `alert-container-success` on the `View` and the `alert-success` on the Label(s).
alert-container-info alert-info	Set the `alert-container-info` on the `View` and the `alert-info` on the Label(s).
alert-container-warning alert-warning	Set the `alert-container-warning` on the `View` and the `alert-warning` on the Label(s).
alert-container-danger alert-danger	Set the `alert-container-danger` on the `View` and the `alert-danger` on the Label(s).

Example

<View class="col col-4 alert-container-success">
    <Label class="alert-success text-center">Success - Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
</View>
<View class="col col-4 alert-container-info">
    <Label class="alert-info text-center">Info - Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
</View>
<View class="col col-4 alert-container-danger">
    <Label class="alert-danger text-center">Danger - Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
</View>
<View class="col col-4 alert-container-warning">
    <Label class="alert-warning text-center">Warning - Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
</View>

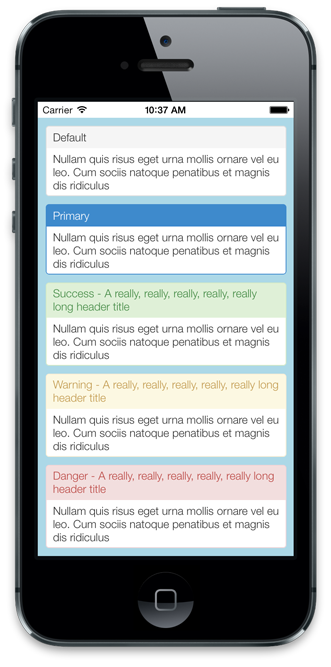

Panels

Panels provide a simple container that give a heading/title to a group of content. Panels use a View for the outer container and a container for the content body. Label(s) are used for the title and content.

Panel TSS Details

TSS Class	Styling
panel-default panel-primary panel-success panel-warning panel-danger	Used on the outer `View` to apply the container color scheme and layout.
panel-default-header panel-primary-header panel-success-header panel-warning-header panel-danger-header	Used on the header `Label`.
panel-container-body	Used to ensure formatting on the content of the Panel. Typlically placed on a `View`.
panel-body	Used to format and stylize the content of the Panel.

Example

<View class="col col-4 panel-default">
    <Label class="panel-default-header">Default</Label>
    <View class="panel-container-body">
        <Label class="panel-body">Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
    </View>
</View>
<View class="col col-4 panel-primary">
    <Label class="panel-primary-header">Primary</Label>
    <View class="panel-container-body">
        <Label class="panel-body">Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
    </View>
</View>
<View class="col col-4 panel-success">
    <Label class="panel-success-header">Success - A really, really, really, really, really long header title</Label>
    <View class="panel-container-body">
        <Label class="panel-body">Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
    </View>
</View>
<View class="col col-4 panel-warning">
    <Label class="panel-warning-header">Warning - A really, really, really, really, really long header title</Label>
    <View class="panel-container-body">
        <Label class="panel-body">Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
    </View>
</View>
<View class="col col-4 panel-danger">
    <Label class="panel-danger-header">Danger - A really, really, really, really, really long header title</Label>
    <View class="panel-container-body">
        <Label class="panel-body">Nullam quis risus eget urna mollis ornare vel eu leo. Cum sociis natoque penatibus et magnis dis ridiculus</Label>
    </View>
</View>

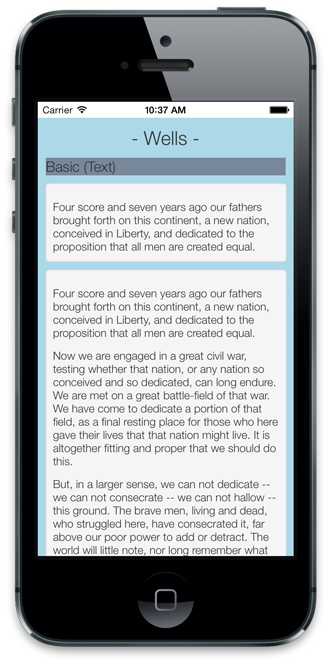

Wells

Wells are simply a stylized View. They provide an easy way to seperate content into different visual sections.

Wells TSS Details

TSS Class	Styling
well	Used on the outer `View`.
well-content	Used on the UI elements within the well `View`

Example

<View class="col col-4 well">
    <View class="well-content">
        <Label class="p-content">Four score and seven years ago our fathers brought forth on this continent, a new nation, conceived in Liberty, and dedicated to the proposition that all men are created equal.</Label>
    </View>
</View>
<View class="col col-4 well">
    <View class="well-content">
        <Label class="p-content">Four score and seven years ago our fathers brought forth on this continent, a new nation, conceived in Liberty, and dedicated to the proposition that all men are created equal.</Label>
        <Label class="p-content">Now we are engaged in a great civil war, testing whether that nation, or any nation so conceived and so dedicated, can long endure. We are met on a great battle-field of that war. We have come to dedicate a portion of that field, as a final resting place for those who here gave their lives that that nation might live. It is altogether fitting and proper that we should do this.</Label>
        <Label class="p-content">But, in a larger sense, we can not dedicate -- we can not consecrate -- we can not hallow -- this ground. The brave men, living and dead, who struggled here, have consecrated it, far above our poor power to add or detract. The world will little note, nor long remember what we say here, but it can never forget what they did here. It is for us the living, rather, to be dedicated here to the unfinished work which they who fought here have thus far so nobly advanced. It is rather for us to be here dedicated to the great task remaining before us -- that from these honored dead we take increased devotion to that cause for which they gave the last full measure of devotion -- that we here highly resolve that these dead shall not have died in vain -- that this nation, under God, shall have a new birth of freedom -- and that government of the people, by the people, for the people, shall not perish from the earth.</Label>
    </View>
</View>

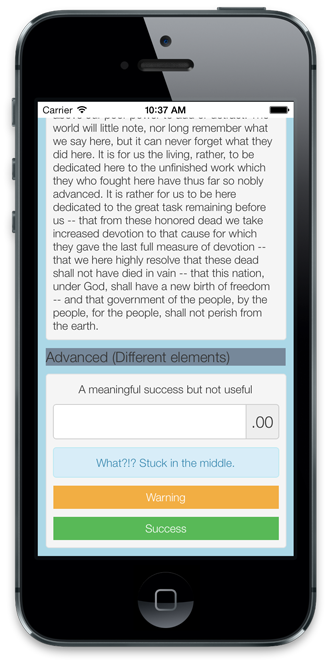

<View class="col col-4 well">
    <View class="well-content">
        <Label class="text-success h5">A meaningful success but not useful</Label>
        <View class="col col-4 input-container">
            <TextField class="input-tf text-right"/>
            <Label class="input-addon">.00</Label>
        </View>
        <View class="col col-4 alert-container-info">
            <Label class="alert-info text-center">What?!? Stuck in the middle.</Label>
        </View>
        <Button class="col col-4 btn btn-warning">Warning</Button>
        <Button class="col col-4 btn btn-success">Success</Button>
    </View>
</View>

Inputs

The Input TSS classes provide formatting to the TextField UI elements.

Inputs TSS Details

The input TSS classes come in two predefined heights. The default is 44dp and the classes with the -sm designation are set to 34dp.

TSS Class	Styling
input-container	A container class used on an outer `View`. Used to format the `View`.
input-tf input-tf-sm	Use on the `TextField` that will have a single addon `Label`. The addon `Label` can be, before or after the `TextField`. Before will put the addon text on the left of the `TextField` and below will be on the right of the `TextField`.
input-tf-2-addon input-tf-2-addon-sm	Use on the `TextField` that will have two addon `Labels` (one on the right and left of the `TextField`).
input-addon input-addon-sm	Used on a `Label` to contain the add on text. The addon `Label` should have no more than 4 characters.

Input TSS helper classes

TSS Class	Styling
input-border-rounded	borderStyle: Ti.UI.INPUT_BORDERSTYLE_ROUNDED
input-border-bezel	borderStyle: Ti.UI.INPUT_BORDERSTYLE_BEZEL
input-border-line	borderStyle: Ti.UI.INPUT_BORDERSTYLE_LINE
input-border-none	borderStyle: Ti.UI.INPUT_BORDERSTYLE_NONE
input-password	passwordMask: true
input-kb-default	appearance: Ti.UI.KEYBOARD_APPEARANCE_DEFAULT
input-kb-alert	appearance: Ti.UI.KEYBOARD_APPEARANCE_ALERT
input-text-ac-none	autocapitalization: Ti.UI.TEXT_AUTOCAPITALIZATION_NONE
input-text-ac-words	autocapitalization: Ti.UI.TEXT_AUTOCAPITALIZATION_WORDS
input-text-ac-sentences	autocapitalization: Ti.UI.TEXT_AUTOCAPITALIZATION_SENTENCES
input-text-ac-all	autocapitalization: Ti.UI.TEXT_AUTOCAPITALIZATION_ALL
input-autocorrect	autocorrect: true
input-bm-always	clearButtonMode: Ti.UI.INPUT_BUTTONMODE_ALWAYS
input-bm-never	clearButtonMode: Ti.UI.INPUT_BUTTONMODE_NEVER
input-bm-onblur	clearButtonMode: Ti.UI.INPUT_BUTTONMODE_ONBLUR
input-bm-onfocus	clearButtonMode: Ti.UI.INPUT_BUTTONMODE_ONFOCUS
input-clear-on-edit	clearOnEdit: true
input-enable-return-key	enableReturnKey: true
input-kb-ascii	keyboardType: Ti.UI.KEYBOARD_ASCII
input-kb-decimal-pad	keyboardType: Ti.UI.KEYBOARD_DECIMAL_PAD
input-kb-default	keyboardType: Ti.UI.KEYBOARD_DEFAULT
input-kb-email	keyboardType: Ti.UI.KEYBOARD_EMAIL
input-kb-namephone-pad	keyboardType: Ti.UI.KEYBOARD_NAMEPHONE_PAD
input-kb-numbers-punctuation	keyboardType: Ti.UI.KEYBOARD_NUMBERS_PUNCTUATION
input-kb-number-pad	keyboardType: Ti.UI.KEYBOARD_NUMBER_PAD
input-kb-phone-pad	keyboardType: Ti.UI.KEYBOARD_PHONE_PAD
input-kb-url	keyboardType: Ti.UI.KEYBOARD_URL
input-rk-default	returnKeyType: Ti.UI.RETURNKEY_DEFAULT
input-rk-done	returnKeyType: Ti.UI.RETURNKEY_DONE
input-rk-emergency_call	returnKeyType: Ti.UI.RETURNKEY_EMERGENCY_CALL
input-rk-go	returnKeyType: Ti.UI.RETURNKEY_GO
input-rk-google	returnKeyType: Ti.UI.RETURNKEY_GOOGLE
input-rk-join	returnKeyType: Ti.UI.RETURNKEY_JOIN
input-rk-next	returnKeyType: Ti.UI.RETURNKEY_NEXT
input-rk-route	returnKeyType: Ti.UI.RETURNKEY_ROUTE
input-rk-search	returnKeyType: Ti.UI.RETURNKEY_SEARCH
input-rk-send	returnKeyType: Ti.UI.RETURNKEY_SEND
input-rk-yahoo	returnKeyType: Ti.UI.RETURNKEY_YAHOO
input-supress-return	suppressReturn: true
input-sk-hide-on-focus (Android Only)	softKeyboardOnFocus: Titanium.UI.Android.SOFT_KEYBOARD_HIDE_ON_FOCUS
input-sk-show-on-focus (Android Only)	softKeyboardOnFocus: Titanium.UI.Android.SOFT_KEYBOARD_HIDE_ON_FOCUS
input-sk-default-on-focus (Android Only)	softKeyboardOnFocus: Titanium.UI.Android.SOFT_KEYBOARD_DEFAULT_ON_FOCUS

Example:

<View class="container">
    <View class="col col-4">
        <TextField class="input-border-rounded
                          input-tf
                          input-bm-always
                          input-clear-on-edit
                          input-enable-return-key
                          bg-transparent" width="100%" hintText="Username" />
    </View>
    <View class="col col-4 input-container">
        <Label class="input-addon">**</Label>
        <TextField class="input-tf input-password" hintText="Password" />
    </View>
    <View class="col col-4 input-container">
        <TextField class="input-tf text-right input-kb-number-pad" />
        <Label class="input-addon">.00</Label>
    </View>
    <View class="col col-4 input-container">
        <Label class="input-addon">$</Label>
        <TextField class="input-tf-2-addon text-right input-rk-join" />
        <Label class="input-addon">.00</Label>
    </View>
    <View class="col col-4 input-container">
        <Label class="input-addon-sm">@</Label>
        <TextField class="input-tf-sm input-supress-return" hintText="Username" />
    </View>
    <View class="col col-4 input-container">
        <TextField class="input-tf-sm text-right" />
        <Label class="input-addon-sm">.00</Label>
    </View>
    <View class="col col-4 input-container">
        <Label class="input-addon-sm text-primary">$</Label>
        <TextField class="input-tf-2-addon-sm text-right input-kb-default" />
        <Label class="input-addon-sm text-danger">.00</Label>
    </View>
</View>

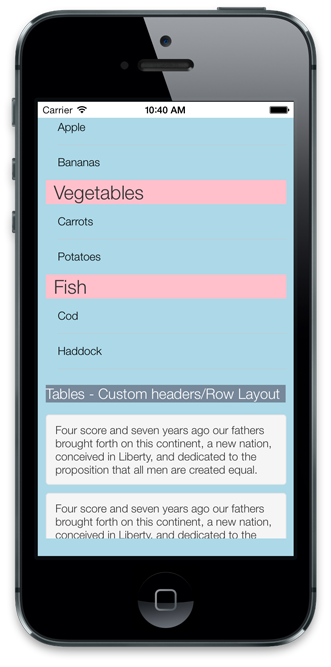

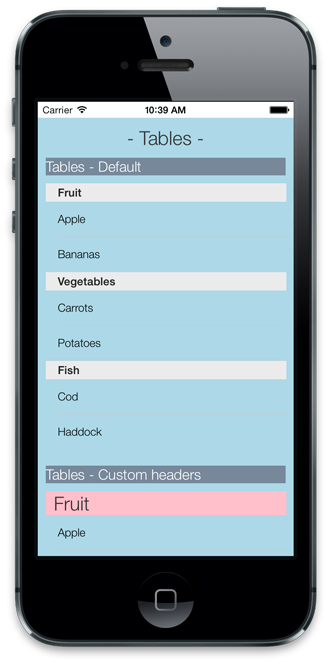

Tables

Table support is still in development.

See [Styles And Colors TSS Details] for table seperator colors.

Table TSS helper classes

TSS Class	Styling
table-style-plain	style: Titanium.UI.iPhone.TableViewStyle.PLAIN
table-style-group	style: Titanium.UI.iPhone.TableViewStyle.GROUPED
table-sep-style-none	separatorStyle: Titanium.UI.iPhone.TableViewSeparatorStyle.NONE
table-sep-style-line	separatorStyle: Titanium.UI.iPhone.TableViewSeparatorStyle.SINGLE_LINE
sep-color-none	separatorStyle: Titanium.UI.iPhone.TableViewSeparatorStyle.NONE
table-sep-style-line	separatorStyle: Titanium.UI.iPhone.TableViewSeparatorStyle.SINGLE_LINE
table-hide-vert-scroll	showVerticalScrollIndicator: false
table-show-search	searchHidden: true
table-disable-scrollToTop	scrollsToTop: false
table-disable-scrollable	scrollable: false
table-scroll-style-default	scrollIndicatorStyle:Titanium.UI.iPhone.ScrollIndicatorStyle.DEFAULT
table-scroll-style-white	scrollIndicatorStyle:Titanium.UI.iPhone.ScrollIndicatorStyle.WHITE
table-scroll-style-black	scrollIndicatorStyle:Titanium.UI.iPhone.ScrollIndicatorStyle.BLACK
table-disable-selection	allowsSelection: false

Scrollable

The following are the TSS classes for the ScrollableView view.

See [Styles And Colors TSS Details] for page control seperator colors.

Scrollable TSS helper classes

TSS Class	Styling
show-page-control	showPagingControl: true
disable-bounce	disableBounce: true
overlay-enabled	overlayEnabled: true
paging-control-on-top	pagingControlOnTop: true
scrolling-enabled	scrollingEnabled: true

ScrollView

The following are the TSS classes for the ScrollView view.

ScrollView TSS helper classes

TSS Class	Styling
st-vertical (Android only)	scrollType: "vertical"
st-horizontal (Android only)	scrollType: "horizontal"

Widgets

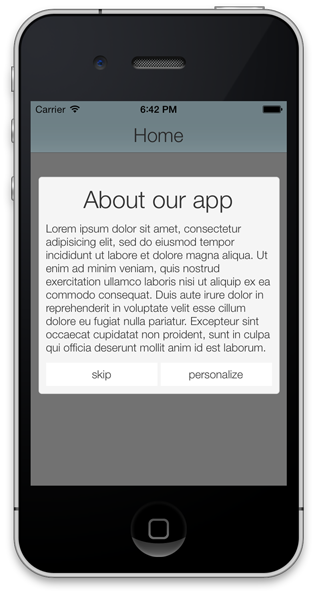

wriststrap.dialog

A simple dialog widget which allow for animating a dropdown dialog. The widget does not contain the content rather takes a View that has content.

NOTE: At this time, this picker is not a visual widget and can't be added via the Require tag.

Example Content View

<View class="well">
    <View class="well-content">
        <Label class="h2">About our app</Label>
        <Label class="col col-4">Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
        </Label>
        <View class="col col-4 lo-horizontal">
            <Button id="skip" class="col-2 btn-default">skip</Button>
            <Button id="personalize" class="col-2 col-spacing btn-default">personalize</Button>
        </View>
    </View>
</View>

Usage:

argument	required	description
content	yes	Takes a `View`. Containing the content of the dialog. The content view will be auto-centered.
animated	no	Takes a `boolean`. Will drop down the dialog

For animated dropdown

var content = Alloy.createController("someContent");
var aboutPopover = Alloy.createWidget("wriststrap.dialog", "widget", {
    content: content.getView(),
    animate: true,
    contentHeight: 400 // Used to hide the dialog off screen for animated dropdown

});

content.skip.addEventListener("click", function() {
    aboutPopover.getView().animateClose();
});

For fade in/out

var content = Alloy.createController("someContent");
var aboutPopover = Alloy.createWidget("wriststrap.dialog", "widget", {
    content: content.getView(),
    fade: true,
});

content.skip.addEventListener("click", function() {
    aboutPopover.getView().fadeOutClose();
});

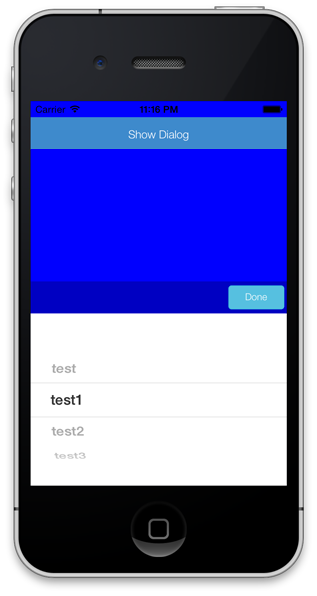

wriststrap.picker

A simple picker widget which had animated show and hide (slide up and down from the bottom of the screen). The widget takes a data array as input.

NOTE: At this time, this picker is not a visual widget and can't be added via the Require tag.

Usage:

The wriststrap.picker is added to the base Window where the layout must be lo-composite.

<Window class="lo-composite">
... stuff
</Window>

argument	required	description
data	yes	Takes an JSON array (or array of arrays) of items that will be displayed in the picker. The contents of the array will be a JSON object that will contain 2 properties. A `title` and a `id`. The title will be displayed when the picker is shown and the id is passed to the onDone function for which item was picked.
onDone	yes	A callback function will be be called when the `done` button is pressed on the picker. The value return to the `onDone` callback is an array of values selected. If the picker has multiple columns the array index correlates to the column.
showPicker()	yes	This function is used to display the picker. It is called in the controller where it is attached to the `Window`

Example of usage:

In index.js

var picker = Alloy.createWidget("wriststrap.picker", "widget", {
    data: [[{
            title: 'test',
            id: 'testId'
        },{
            title: 'test1',
            id: 'test1Id'
        },{
            title: 'test2',
            id: 'test2Id'
        },{
            title: 'test3',
            id: 'test3Id'
        }]],

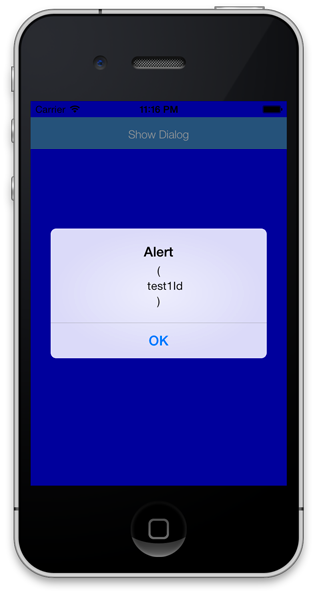

    onDone: function (selectedValues) {
        alert(selectedValues);
    }
});

$.index.add(picker.getView());

$.index.open();

function showDialog() {
    picker.getView().showPicker();
}

In index.xml

<Alloy>
    <Window class="lo-composite bg-lightblue">
        <View class="t-20 w-100% h-40">
            <Button class="btn-primary" onClick="showDialog">Show Dialog</Button>
        </View>
    </Window>
</Alloy>

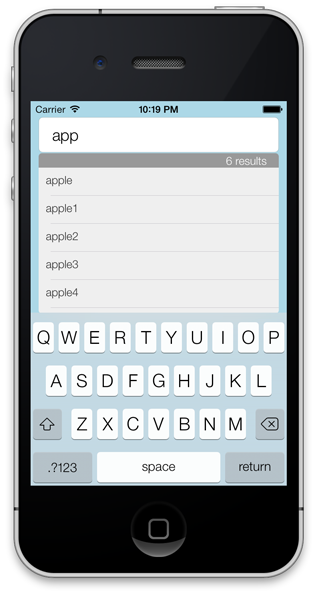

wriststrap.autocomplete

A widget that couples a TextField and Table to show 'type ahead' content as the user types.

Usage:

Use the Require tag to add the auto-complete TextField to your View. By default, it contains a view with col-4 set to the outer View. This means it can be added directly to a View with container set in the class attribute. Use one of two methods to populate the auto-complete array (both can't be used at the same time).

argument	required	description
data()	yes	Use the `data` function to set an array which will contain the auto-complete suggestions. Call this function in the parent controller (see example below).
dataSource	yes	Use the `dataSource` argument on the `Require` tag to pass a URL to retrieve the Javascript array that contains the auto-complete suggestions. NOTE: The widget will attempt to prefetch the array once the widget is initalized.
tfclass	no	Use this argument to change the display of the TextField. You can use any TSS classes. Default classes used are: `input-border-rounded input-tf input-bm-always input-enable-return-key input-autocorrect-disabled input-text-ac-none bg-transparent t-0`
hintText	no	Sets the `hintText` of the `TextField`
tableHeight	no	Set the auto-complete suggestion table height. Default height is `200dp`
suggestAfter	no	Use this argument to control when the auto-complete suggestion table is displayed after N number of letters are entered in the `TextField`. Default is 0

Example of usage using the data function to populate the auto-complete array:

In index.xml

<Alloy>
    <Window class="lo-composite bg-lightblue">
        <View class="container t-20">
             <Require src="wriststrap.autocomplete" type="widget" id="autocomplete"/>
        </View>
    </Window>
</Alloy>

In index.js

...
stuff

$.autocomplete.data(["apple", "apple1", "apple2", "apple3", "apple4", "apple5", "orange", "orange1", "orange2", "orange3", "orange4", "orange5", "mango", "mango1", "mango2" ]);

stuff
...

Example of usage using the dataSource argument to populate the auto-complete array:

NOTE: No further code is needed in index.js

In index.xml

<Alloy>
    <Window class="lo-composite bg-lightblue">
        <View class="container t-20">
             <Require src="wriststrap.autocomplete" type="widget" dataSource="http://www.somedomain.com/api/autocomplete" id="autocomplete"/>
        </View>
    </Window>
</Alloy>

Appendix

Fonts

The default font for Wriststrap is currently "HelveticaNeue-Light". This font is lightweight and gives the app a clean feel. The TSS classes are available in different font sizes.

The format of the tss class is: font-<size>-<fontname> for example:

font-12-helveticaneue-light

The font sizes available are:

Font Sizes
6
8
10
12
14
18
24
30
36
48
60
72

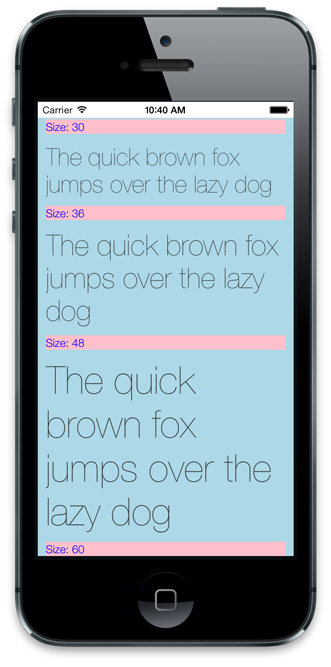

Font shown here is HelveticaNeue-UltraLight

Additional fonts

In addition to the default font in the app.tss there is a provided tss file wriststrap/themes/wristrap/style/fonts.tss that contains all of the available fonts on the iOS platform (200 in all). Originally they were included in the app.tss however it added 20k lines to file and where taken out. If you need, you can copy font sets into the app.tss or all of them back into the app.tss however the file gets hard to edit.

Available iOS fonts (includes iOS 7)

Use the size table under font section for the available font sizes in the tss file.

Font Names (in iOS)	Font TSS names
AcademyEngravedLetPlain	font-<size>-academyengravedletplain
AmericanTypewriter	font-<size>-americantypewriter
AmericanTypewriter-Bold	font-<size>-americantypewriter-bold
AmericanTypewriter-Condensed	font-<size>-americantypewriter-condensed
AmericanTypewriter-CondensedBold	font-<size>-americantypewriter-condensedbold
AmericanTypewriter-CondensedLight	font-<size>-americantypewriter-condensedlight
AmericanTypewriter-Light	font-<size>-americantypewriter-light
AppleColorEmoji	font-<size>-applecoloremoji
AppleSDGothicNeo-Bold	font-<size>-applesdgothicneo-bold
AppleSDGothicNeo-Medium	font-<size>-applesdgothicneo-medium
ArialMT	font-<size>-arialmt
Arial-BoldItalicMT	font-<size>-arial-bolditalicmt
Arial-BoldMT	font-<size>-arial-boldmt
Arial-ItalicMT	font-<size>-arial-italicmt
ArialHebrew	font-<size>-arialhebrew
ArialHebrew-Bold	font-<size>-arialhebrew-bold
ArialRoundedMTBold	font-<size>-arialroundedmtbold
Avenir-Black	font-<size>-avenir-black
Avenir-BlackOblique	font-<size>-avenir-blackoblique
Avenir-Book	font-<size>-avenir-book
Avenir-BookOblique	font-<size>-avenir-bookoblique
Avenir-Heavy	font-<size>-avenir-heavy
Avenir-HeavyOblique	font-<size>-avenir-heavyoblique
Avenir-Light	font-<size>-avenir-light
Avenir-LightOblique	font-<size>-avenir-lightoblique
Avenir-Medium	font-<size>-avenir-medium
Avenir-MediumOblique	font-<size>-avenir-mediumoblique
Avenir-Oblique	font-<size>-avenir-oblique
Avenir-Roman	font-<size>-avenir-roman
AvenirNext-Bold	font-<size>-avenirnext-bold
AvenirNext-BoldItalic	font-<size>-avenirnext-bolditalic
AvenirNext-DemiBold	font-<size>-avenirnext-demibold
AvenirNext-DemiBoldItalic	font-<size>-avenirnext-demibolditalic
AvenirNext-Heavy	font-<size>-avenirnext-heavy
AvenirNext-HeavyItalic	font-<size>-avenirnext-heavyitalic
AvenirNext-Italic	font-<size>-avenirnext-italic
AvenirNext-Medium	font-<size>-avenirnext-medium
AvenirNext-MediumItalic	font-<size>-avenirnext-mediumitalic
AvenirNext-Regular	font-<size>-avenirnext-regular
AvenirNext-UltraLight	font-<size>-avenirnext-ultralight
AvenirNext-UltraLightItalic	font-<size>-avenirnext-ultralightitalic
AvenirNextCondensed-Bold	font-<size>-avenirnextcondensed-bold
AvenirNextCondensed-BoldItalic	font-<size>-avenirnextcondensed-bolditalic
AvenirNextCondensed-DemiBold	font-<size>-avenirnextcondensed-demibold
AvenirNextCondensed-DemiBoldItalic	font-<size>-avenirnextcondensed-demibolditalic
AvenirNextCondensed-Heavy	font-<size>-avenirnextcondensed-heavy
AvenirNextCondensed-HeavyItalic	font-<size>-avenirnextcondensed-heavyitalic
AvenirNextCondensed-Italic	font-<size>-avenirnextcondensed-italic
AvenirNextCondensed-Medium	font-<size>-avenirnextcondensed-medium
AvenirNextCondensed-MediumItalic	font-<size>-avenirnextcondensed-mediumitalic
AvenirNextCondensed-Regular	font-<size>-avenirnextcondensed-regular
AvenirNextCondensed-UltraLight	font-<size>-avenirnextcondensed-ultralight
AvenirNextCondensed-UltraLightItalic	font-<size>-avenirnextcondensed-ultralightitalic
BanglaSangamMN	font-<size>-banglasangammn
BanglaSangamMN-Bold	font-<size>-banglasangammn-bold
Baskerville	font-<size>-baskerville
Baskerville-Bold	font-<size>-baskerville-bold
Baskerville-BoldItalic	font-<size>-baskerville-bolditalic
Baskerville-Italic	font-<size>-baskerville-italic
Baskerville-SemiBold	font-<size>-baskerville-semibold
Baskerville-SemiBoldItalic	font-<size>-baskerville-semibolditalic
BodoniOrnamentsITCTT	font-<size>-bodoniornamentsitctt
BodoniSvtyTwoITCTT-Bold	font-<size>-bodonisvtytwoitctt-bold
BodoniSvtyTwoITCTT-Book	font-<size>-bodonisvtytwoitctt-book
BodoniSvtyTwoITCTT-BookIta	font-<size>-bodonisvtytwoitctt-bookita
BodoniSvtyTwoOSITCTT-Bold	font-<size>-bodonisvtytwoositctt-bold
BodoniSvtyTwoOSITCTT-Book	font-<size>-bodonisvtytwoositctt-book
BodoniSvtyTwoOSITCTT-BookIt	font-<size>-bodonisvtytwoositctt-bookit
BodoniSvtyTwoSCITCTT-Book	font-<size>-bodonisvtytwoscitctt-book
BradleyHandITCTT-Bold	font-<size>-bradleyhanditctt-bold
ChalkboardSE-Bold	font-<size>-chalkboardse-bold
ChalkboardSE-Light	font-<size>-chalkboardse-light
ChalkboardSE-Regular	font-<size>-chalkboardse-regular
Chalkduster	font-<size>-chalkduster
Cochin	font-<size>-cochin
Cochin-Bold	font-<size>-cochin-bold
Cochin-BoldItalic	font-<size>-cochin-bolditalic
Cochin-Italic	font-<size>-cochin-italic
Copperplate	font-<size>-copperplate
Copperplate-Bold	font-<size>-copperplate-bold
Copperplate-Light	font-<size>-copperplate-light
Courier	font-<size>-courier
Courier-Bold	font-<size>-courier-bold
Courier-BoldOblique	font-<size>-courier-boldoblique
Courier-Oblique	font-<size>-courier-oblique
CourierNewPS-BoldItalicMT	font-<size>-couriernewps-bolditalicmt
CourierNewPS-BoldMT	font-<size>-couriernewps-boldmt
CourierNewPS-ItalicMT	font-<size>-couriernewps-italicmt
CourierNewPSMT	font-<size>-couriernewpsmt
DBLCDTempBlack	font-<size>-dblcdtempblack
DevanagariSangamMN	font-<size>-devanagarisangammn
DevanagariSangamMN-Bold	font-<size>-devanagarisangammn-bold
Didot	font-<size>-didot
Didot-Bold	font-<size>-didot-bold
Didot-Italic	font-<size>-didot-italic
EuphemiaUCAS	font-<size>-euphemiaucas
EuphemiaUCAS-Bold	font-<size>-euphemiaucas-bold
EuphemiaUCAS-Italic	font-<size>-euphemiaucas-italic
Futura-CondensedExtraBold	font-<size>-futura-condensedextrabold
Futura-CondensedMedium	font-<size>-futura-condensedmedium
Futura-Medium	font-<size>-futura-medium
Futura-MediumItalic	font-<size>-futura-mediumitalic
GeezaPro	font-<size>-geezapro
GeezaPro-Bold	font-<size>-geezapro-bold
Georgia	font-<size>-georgia
Georgia-Bold	font-<size>-georgia-bold
Georgia-BoldItalic	font-<size>-georgia-bolditalic
Georgia-Italic	font-<size>-georgia-italic
GillSans	font-<size>-gillsans
GillSans-Bold	font-<size>-gillsans-bold
GillSans-BoldItalic	font-<size>-gillsans-bolditalic
GillSans-Italic	font-<size>-gillsans-italic
GillSans-Light	font-<size>-gillsans-light
GillSans-LightItalic	font-<size>-gillsans-lightitalic
GujaratiSangamMN	font-<size>-gujaratisangammn
GujaratiSangamMN-Bold	font-<size>-gujaratisangammn-bold
GurmukhiMN	font-<size>-gurmukhimn
GurmukhiMN-Bold	font-<size>-gurmukhimn-bold
STHeitiSC-Light	font-<size>-stheitisc-light
STHeitiSC-Medium	font-<size>-stheitisc-medium
STHeitiTC-Light	font-<size>-stheititc-light
STHeitiTC-Medium	font-<size>-stheititc-medium
Helvetica	font-<size>-helvetica
Helvetica-Bold	font-<size>-helvetica-bold
Helvetica-BoldOblique	font-<size>-helvetica-boldoblique
Helvetica-Light	font-<size>-helvetica-light
Helvetica-LightOblique	font-<size>-helvetica-lightoblique
Helvetica-Oblique	font-<size>-helvetica-oblique
HelveticaNeue	font-<size>-helveticaneue
HelveticaNeue-Bold	font-<size>-helveticaneue-bold
HelveticaNeue-BoldItalic	font-<size>-helveticaneue-bolditalic
HelveticaNeue-CondensedBlack	font-<size>-helveticaneue-condensedblack
HelveticaNeue-CondensedBold	font-<size>-helveticaneue-condensedbold
HelveticaNeue-Italic	font-<size>-helveticaneue-italic
HelveticaNeue-Light	font-<size>-helveticaneue-light
HelveticaNeue-LightItalic	font-<size>-helveticaneue-lightitalic
HelveticaNeue-Medium	font-<size>-helveticaneue-medium
HelveticaNeue-UltraLight	font-<size>-helveticaneue-ultralight
HelveticaNeue-UltraLightItalic	font-<size>-helveticaneue-ultralightitalic
HiraKakuProN-W3	font-<size>-hirakakupron-w3
HiraKakuProN-W6	font-<size>-hirakakupron-w6
HiraMinProN-W3	font-<size>-hiraminpron-w3
HiraMinProN-W6	font-<size>-hiraminpron-w6
HoeflerText-Black	font-<size>-hoeflertext-black
HoeflerText-BlackItalic	font-<size>-hoeflertext-blackitalic
HoeflerText-Italic	font-<size>-hoeflertext-italic
HoeflerText-Regular	font-<size>-hoeflertext-regular
Kailasa	font-<size>-kailasa
Kailasa-Bold	font-<size>-kailasa-bold
KannadaSangamMN	font-<size>-kannadasangammn
KannadaSangamMN-Bold	font-<size>-kannadasangammn-bold
MalayalamSangamMN	font-<size>-malayalamsangammn
MalayalamSangamMN-Bold	font-<size>-malayalamsangammn-bold
Marion-Bold	font-<size>-marion-bold
Marion-Italic	font-<size>-marion-italic
Marion-Regular	font-<size>-marion-regular
MarkerFelt-Thin	font-<size>-markerfelt-thin
MarkerFelt-Wide	font-<size>-markerfelt-wide
Noteworthy-Bold	font-<size>-noteworthy-bold
Noteworthy-Light	font-<size>-noteworthy-light
Optima-Bold	font-<size>-optima-bold
Optima-BoldItalic	font-<size>-optima-bolditalic
Optima-ExtraBlack	font-<size>-optima-extrablack
Optima-Italic	font-<size>-optima-italic
Optima-Regular	font-<size>-optima-regular
OriyaSangamMN	font-<size>-oriyasangammn
OriyaSangamMN-Bold	font-<size>-oriyasangammn-bold
Palatino-Bold	font-<size>-palatino-bold
Palatino-BoldItalic	font-<size>-palatino-bolditalic
Palatino-Italic	font-<size>-palatino-italic
Palatino-Roman	font-<size>-palatino-roman
Papyrus	font-<size>-papyrus
Papyrus-Condensed	font-<size>-papyrus-condensed
PartyLetPlain	font-<size>-partyletplain
SinhalaSangamMN	font-<size>-sinhalasangammn
SinhalaSangamMN-Bold	font-<size>-sinhalasangammn-bold
SnellRoundhand	font-<size>-snellroundhand
SnellRoundhand-Black	font-<size>-snellroundhand-black
SnellRoundhand-Bold	font-<size>-snellroundhand-bold
Symbol	font-<size>-symbol
TamilSangamMN	font-<size>-tamilsangammn
TamilSangamMN-Bold	font-<size>-tamilsangammn-bold
TeluguSangamMN	font-<size>-telugusangammn
TeluguSangamMN-Bold	font-<size>-telugusangammn-bold
Thonburi	font-<size>-thonburi
Thonburi-Bold	font-<size>-thonburi-bold
TimesNewRomanPS-BoldItalicMT	font-<size>-timesnewromanps-bolditalicmt
TimesNewRomanPS-BoldMT	font-<size>-timesnewromanps-boldmt
TimesNewRomanPS-ItalicMT	font-<size>-timesnewromanps-italicmt
TimesNewRomanPSMT	font-<size>-timesnewromanpsmt
Trebuchet-BoldItalic	font-<size>-trebuchet-bolditalic
TrebuchetMS	font-<size>-trebuchetms
TrebuchetMS-Bold	font-<size>-trebuchetms-bold
TrebuchetMS-Italic	font-<size>-trebuchetms-italic
Verdana	font-<size>-verdana
Verdana-Bold	font-<size>-verdana-bold
Verdana-BoldItalic	font-<size>-verdana-bolditalic
Verdana-Italic	font-<size>-verdana-italic
ZapfDingbatsITC	font-<size>-zapfdingbatsitc
Zapfino	font-<size>-zapfino

Supported Glyph libraries

Wriststrap has support for the following Glyph libraries:

Glyphish (Free version)
Glyphicons (Free version)

Glyph libraries installation:

Simply unzip the Glyph libraries in the wriststrap/themes/wriststrap/assets and name the directories appropriately (the name of the library all lower case, no version numbers just the name). The framework will reference these locations for the images.

NOTE for Glyphish remame subdirectory from PNG Icons to just icons.

NOTE 2 The Glyphish entries are not automatically put in the theme app.tss file. You will need to copy 1 or more entries from wriststrap/themes/wriststrap/styles/glyphish.tss to the theme or application app.tss file.

Titianium studio should look like this:

Glyphish

	glyphish-refresh		glyphish-redo
	glyphish-loopback		glyphish-squiggle
	glyphish-shuffle		glyphish-magnify
	glyphish-map-marker		glyphish-chat
	glyphish-chat-2		glyphish-medical
	glyphish-clock		glyphish-eye
	glyphish-target		glyphish-tag
	glyphish-tags		glyphish-line-chart
	glyphish-bar-chart		glyphish-envelope
	glyphish-gear		glyphish-gear2
	glyphish-skull		glyphish-skull-n-bones
	glyphish-bird		glyphish-gift
	glyphish-weather		glyphish-bandaid
	glyphish-planet		glyphish-star
	glyphish-heart		glyphish-key
	glyphish-ipod		glyphish-iphone
	glyphish-cabinet		glyphish-coffee
	glyphish-shopping		glyphish-toolbox
	glyphish-suitcase		glyphish-airplane
	glyphish-spraycan		glyphish-inbox
	glyphish-picture-frame		glyphish-photos
	glyphish-film-roll		glyphish-shoebox
	glyphish-movie-1		glyphish-movie-2
	glyphish-fuel		glyphish-fork-and-knife
	glyphish-battery		glyphish-beaker
	glyphish-outlet		glyphish-pine-tree
	glyphish-house		glyphish-lock
	glyphish-network		glyphish-cloud
	glyphish-download		glyphish-bookmark
	glyphish-flag		glyphish-signpost
	glyphish-brightness		glyphish-contrast
	glyphish-runner		glyphish-zap
	glyphish-note		glyphish-microphone
	glyphish-tshirt		glyphish-paperclip
	glyphish-display		glyphish-tv
	glyphish-compass		glyphish-pin
	glyphish-radar		glyphish-location
	glyphish-phone		glyphish-baby
	glyphish-ekg		glyphish-stopwatch
	glyphish-medical-bag		glyphish-shopping-cart
	glyphish-dashboard		glyphish-dog-paw
	glyphish-calendar		glyphish-lightbulb
	glyphish-trophy		glyphish-camera
	glyphish-wine-glass		glyphish-beer-mug
	glyphish-dumbell		glyphish-life-buoy
	glyphish-beaker-2		glyphish-test-tube
	glyphish-thermometer		glyphish-pill
	glyphish-equalizer		glyphish-book
	glyphish-puzzle		glyphish-palette
	glyphish-umbrella		glyphish-coffee
	glyphish-gameplan		glyphish-walk
	glyphish-map		glyphish-index-cards
	glyphish-piano		glyphish-sliders
	glyphish-widescreen		glyphish-badge
	glyphish-chicken		glyphish-bug
	glyphish-user		glyphish-group
	glyphish-navigation		glyphish-balloon
	glyphish-bow-and-arrow		glyphish-controller
	glyphish-todo		glyphish-coat-hanger
	glyphish-piggy-bank		glyphish-headphones
	glyphish-landscape		glyphish-stats
	glyphish-id-card		glyphish-bullhorn
	glyphish-food		glyphish-moon
	glyphish-sock		glyphish-bone
	glyphish-golf		glyphish-dice
	glyphish-tower		glyphish-ghost
	glyphish-ufo		glyphish-viking
	glyphish-hockeymask		glyphish-tractor
	glyphish-presentation		glyphish-scales
	glyphish-flags		glyphish-gradhat
	glyphish-lamp		glyphish-wine-bottle
	glyphish-liquor-bottle		glyphish-martini
	glyphish-persondot		glyphish-gavel
	glyphish-popsicle		glyphish-doghouse
	glyphish-windmill		glyphish-sailboat
	glyphish-telescope		glyphish-rolodex
	glyphish-guitar		glyphish-necktie
	glyphish-bowtie		glyphish-controlpad
	glyphish-wrench		glyphish-wrench-2
	glyphish-voicemail		glyphish-voicemail-2
	glyphish-calculator		glyphish-receipt
	glyphish-glasses-1		glyphish-glasses-2
	glyphish-glasses-3		glyphish-newspaper
	glyphish-upload-photo		glyphish-upload-photo-2
	glyphish-8ball		glyphish-butterfly
	glyphish-sun		glyphish-pricetag
	glyphish-eyedropper		glyphish-imac
	glyphish-macbook		glyphish-ipad
	glyphish-building		glyphish-city
	glyphish-notepad		glyphish-stickynote
	glyphish-hammer		glyphish-messenger-bag
	glyphish-genie-lamp		glyphish-warning
	glyphish-printer		glyphish-ruler
	glyphish-pencil		glyphish-paint-roller
	glyphish-plant		glyphish-bank
	glyphish-collection		glyphish-credit-card
	glyphish-location-arrow		glyphish-note-2
	glyphish-barcode		glyphish-radiation
	glyphish-card-diamonds		glyphish-card-spades
	glyphish-card-hearts		glyphish-card-clubs

**Glyphicons**

	glyphicons_glass		glyphicons_leaf
	glyphicons_dog		glyphicons_user
	glyphicons_girl		glyphicons_car
	glyphicons_user_add		glyphicons_user_remove
	glyphicons_film		glyphicons_magic
	glyphicons_envelope		glyphicons_camera
	glyphicons_heart		glyphicons_beach_umbrella
	glyphicons_train		glyphicons_print
	glyphicons_bin		glyphicons_music
	glyphicons_note		glyphicons_heart_empty
	glyphicons_home		glyphicons_snowflake
	glyphicons_fire		glyphicons_magnet
	glyphicons_parents		glyphicons_binoculars
	glyphicons_road		glyphicons_search
	glyphicons_cars		glyphicons_notes_2
	glyphicons_pencil		glyphicons_bus
	glyphicons_wifi_alt		glyphicons_luggage
	glyphicons_old_man		glyphicons_woman
	glyphicons_file		glyphicons_coins
	glyphicons_airplane		glyphicons_notes
	glyphicons_stats		glyphicons_charts
	glyphicons_pie_chart		glyphicons_group
	glyphicons_keys		glyphicons_calendar
	glyphicons_router		glyphicons_camera_small
	glyphicons_dislikes		glyphicons_star
	glyphicons_link		glyphicons_eye_open
	glyphicons_eye_close		glyphicons_alarm
	glyphicons_clock		glyphicons_stopwatch
	glyphicons_projector		glyphicons_history
	glyphicons_truck		glyphicons_cargo
	glyphicons_compass		glyphicons_keynote
	glyphicons_paperclip		glyphicons_power
	glyphicons_lightbulb		glyphicons_tag
	glyphicons_tags		glyphicons_cleaning
	glyphicons_ruller		glyphicons_gift
	glyphicons_umbrella		glyphicons_book
	glyphicons_bookmark		glyphicons_wifi
	glyphicons_cup		glyphicons_stroller
	glyphicons_headphones		glyphicons_headset
	glyphicons_warning_sign		glyphicons_signal
	glyphicons_retweet		glyphicons_refresh
	glyphicons_roundabout		glyphicons_random
	glyphicons_heat		glyphicons_repeat
	glyphicons_display		glyphicons_log_book
	glyphicons_address_book		glyphicons_building
	glyphicons_eyedropper		glyphicons_adjust
	glyphicons_tint		glyphicons_crop
	glyphicons_vector_path_square		glyphicons_vector_path_circle
	glyphicons_vector_path_polygon		glyphicons_vector_path_line
	glyphicons_vector_path_curve		glyphicons_vector_path_all
	glyphicons_font		glyphicons_italic
	glyphicons_bold		glyphicons_text_underline
	glyphicons_text_strike		glyphicons_text_height
	glyphicons_text_width		glyphicons_text_resize
	glyphicons_left_indent		glyphicons_right_indent
	glyphicons_align_left		glyphicons_align_center
	glyphicons_align_right		glyphicons_justify
	glyphicons_list		glyphicons_text_smaller
	glyphicons_text_bigger		glyphicons_embed
	glyphicons_embed_close		glyphicons_table
	glyphicons_message_full		glyphicons_message_empty
	glyphicons_message_in		glyphicons_message_out
	glyphicons_message_plus		glyphicons_message_minus
	glyphicons_message_ban		glyphicons_message_flag
	glyphicons_message_lock		glyphicons_message_new
	glyphicons_inbox		glyphicons_inbox_plus
	glyphicons_inbox_minus		glyphicons_inbox_lock
	glyphicons_inbox_in		glyphicons_inbox_out
	glyphicons_cogwheel		glyphicons_cogwheels
	glyphicons_picture		glyphicons_adjust_alt
	glyphicons_database_lock		glyphicons_database_plus
	glyphicons_database_minus		glyphicons_database_ban
	glyphicons_folder_open		glyphicons_folder_plus
	glyphicons_folder_minus		glyphicons_folder_lock
	glyphicons_folder_flag		glyphicons_folder_new
	glyphicons_edit		glyphicons_new_window
	glyphicons_check		glyphicons_unchecked
	glyphicons_more_windows		glyphicons_show_big_thumbnails
	glyphicons_show_thumbnails		glyphicons_show_thumbnails_with_lines
	glyphicons_show_lines		glyphicons_playlist
	glyphicons_imac		glyphicons_macbook
	glyphicons_ipad		glyphicons_iphone
	glyphicons_iphone_transfer		glyphicons_iphone_exchange
	glyphicons_ipod		glyphicons_ipod_shuffle
	glyphicons_ear_plugs		glyphicons_record
	glyphicons_step_backward		glyphicons_fast_backward
	glyphicons_rewind		glyphicons_play
	glyphicons_pause		glyphicons_stop
	glyphicons_forward		glyphicons_fast_forward
	glyphicons_step_forward		glyphicons_eject
	glyphicons_facetime_video		glyphicons_download_alt
	glyphicons_mute		glyphicons_volume_down
	glyphicons_volume_up		glyphicons_screenshot
	glyphicons_move		glyphicons_more
	glyphicons_brightness_reduce		glyphicons_brightness_increase
	glyphicons_circle_plus		glyphicons_circle_minus
	glyphicons_circle_remove		glyphicons_circle_ok
	glyphicons_circle_question_mark		glyphicons_circle_info
	glyphicons_circle_exclamation_mark		glyphicons_remove
	glyphicons_ok		glyphicons_ban
	glyphicons_download		glyphicons_upload
	glyphicons_shopping_cart		glyphicons_lock
	glyphicons_unlock		glyphicons_electricity
	glyphicons_ok_2		glyphicons_remove_2
	glyphicons_cart_out		glyphicons_cart_in
	glyphicons_left_arrow		glyphicons_right_arrow
	glyphicons_down_arrow		glyphicons_up_arrow
	glyphicons_resize_small		glyphicons_resize_full
	glyphicons_circle_arrow_left		glyphicons_circle_arrow_right
	glyphicons_circle_arrow_top		glyphicons_circle_arrow_down
	glyphicons_play_button		glyphicons_unshare
	glyphicons_share		glyphicons_chevron-right
	glyphicons_chevron-left		glyphicons_bluetooth
	glyphicons_euro		glyphicons_usd
	glyphicons_gbp		glyphicons_retweet_2
	glyphicons_moon		glyphicons_sun
	glyphicons_cloud		glyphicons_direction
	glyphicons_brush		glyphicons_pen
	glyphicons_zoom_in		glyphicons_zoom_out
	glyphicons_pin		glyphicons_albums
	glyphicons_rotation_lock		glyphicons_flash
	glyphicons_google_maps		glyphicons_anchor
	glyphicons_conversation		glyphicons_chat
	glyphicons_male		glyphicons_female
	glyphicons_asterisk		glyphicons_divide
	glyphicons_snorkel_diving		glyphicons_scuba_diving
	glyphicons_oxygen_bottle		glyphicons_fins
	glyphicons_fishes		glyphicons_boat
	glyphicons_delete		glyphicons_sheriffs_star
	glyphicons_qrcode		glyphicons_barcode
	glyphicons_pool		glyphicons_buoy
	glyphicons_spade		glyphicons_bank
	glyphicons_vcard		glyphicons_electrical_plug
	glyphicons_flag		glyphicons_credit_card
	glyphicons_keyboard_wireless		glyphicons_keyboard_wireless
	glyphicons_shield		glyphicons_ring
	glyphicons_cake		glyphicons_drink
	glyphicons_beer		glyphicons_fast_food
	glyphicons_cutlery		glyphicons_pizza
	glyphicons_birthday_cake		glyphicons_tablet
	glyphicons_settings		glyphicons_bullets
	glyphicons_cardio		glyphicons_t-shirt
	glyphicons_pants		glyphicons_sweater
	glyphicons_fabric		glyphicons_leather
	glyphicons_scissors		glyphicons_bomb
	glyphicons_skull		glyphicons_celebration
	glyphicons_tea_kettle		glyphicons_french_press
	glyphicons_coffe_cup		glyphicons_pot
	glyphicons_grater		glyphicons_kettle
	glyphicons_hospital		glyphicons_hospital_h
	glyphicons_microphone		glyphicons_webcam
	glyphicons_temple_christianity_church		glyphicons_temple_islam
	glyphicons_temple_hindu		glyphicons_temple_buddhist
	glyphicons_bicycle		glyphicons_life_preserver
	glyphicons_share_alt		glyphicons_comments
	glyphicons_flower		glyphicons_baseball
	glyphicons_rugby		glyphicons_ax
	glyphicons_table_tennis		glyphicons_bowling
	glyphicons_tree_conifer		glyphicons_tree_deciduous
	glyphicons_more_items		glyphicons_sort
	glyphicons_filter		glyphicons_gamepad
	glyphicons_playing_dices		glyphicons_calculator
	glyphicons_tie		glyphicons_wallet
	glyphicons_piano		glyphicons_sampler
	glyphicons_podium		glyphicons_soccer_ball
	glyphicons_blog		glyphicons_dashboard
	glyphicons_certificate		glyphicons_bell
	glyphicons_candle		glyphicons_pushpin
	glyphicons_iphone_shake		glyphicons_pin_flag
	glyphicons_turtle		glyphicons_rabbit
	glyphicons_globe		glyphicons_briefcase
	glyphicons_hdd		glyphicons_thumbs_up
	glyphicons_thumbs_down		glyphicons_hand_right
	glyphicons_hand_left		glyphicons_hand_up
	glyphicons_hand_down		glyphicons_fullscreen
	glyphicons_shopping_bag		glyphicons_book_open
	glyphicons_nameplate		glyphicons_nameplate_alt
	glyphicons_vases		glyphicons_bullhorn
	glyphicons_dumbbell		glyphicons_suitcase
	glyphicons_file_import		glyphicons_file_export
	glyphicons_bug		glyphicons_crown
	glyphicons_smoking		glyphicons_cloud_upload
	glyphicons_cloud_download		glyphicons_restart
	glyphicons_security_camera		glyphicons_expand
	glyphicons_collapse		glyphicons_collapse_top
	glyphicons_globe_af		glyphicons_global
	glyphicons_spray		glyphicons_nails
	glyphicons_claw_hammer		glyphicons_classic_hammer
	glyphicons_hand_saw		glyphicons_riflescope
	glyphicons_electrical_socket_eu		glyphicons_electrical_socket_us
	glyphicons_message_forward		glyphicons_coat_hanger
	glyphicons_dress		glyphicons_bathrobe
	glyphicons_shirt		glyphicons_underwear
	glyphicons_log_in		glyphicons_log_out
	glyphicons_exit		glyphicons_new_window_alt
	glyphicons_video_sd		glyphicons_video_hd
	glyphicons_subtitles		glyphicons_sound_stereo
	glyphicons_sound_dolby		glyphicons_sound_5_1
	glyphicons_sound_6_1		glyphicons_sound_7_1
	glyphicons_copyright_mark		glyphicons_registration_mark
	glyphicons_radar		glyphicons_skateboard
	glyphicons_golf_course		glyphicons_sorting
	glyphicons_sort-by-alphabet		glyphicons_sort-by-alphabet-alt
	glyphicons_sort-by-order		glyphicons_sort-by-order-alt
	glyphicons_sort-by-attributes		glyphicons_sort-by-attributes-alt
	glyphicons_compressed		glyphicons_package
	glyphicons_cloud_plus		glyphicons_cloud_minus
	glyphicons_disk_save		glyphicons_disk_open
	glyphicons_disk_saved		glyphicons_disk_remove
	glyphicons_disk_import		glyphicons_disk_export
	glyphicons_tower		glyphicons_send
	glyphicons_git_branch		glyphicons_git_create
	glyphicons_git_private		glyphicons_git_delete
	glyphicons_git_merge		glyphicons_git_pull_request
	glyphicons_git_compare		glyphicons_git_commit
	glyphicons_construction_cone		glyphicons_shoe_steps
	glyphicons_plus		glyphicons_minus
	glyphicons_redo		glyphicons_undo
	glyphicons_golf		glyphicons_hockey
	glyphicons_pipe		glyphicons_wrench
	glyphicons_folder_closed		glyphicons_phone_alt
	glyphicons_earphone		glyphicons_floppy_disk
	glyphicons_floppy_saved		glyphicons_floppy_remove
	glyphicons_floppy_save		glyphicons_floppy_open
	glyphicons_translate		glyphicons_fax
	glyphicons_factory		glyphicons_shop_window
	glyphicons_shop		glyphicons_kiosk
	glyphicons_kiosk_wheels		glyphicons_kiosk_light
	glyphicons_kiosk_food		glyphicons_transfer
	glyphicons_money		glyphicons_header
	glyphicons_blacksmith		glyphicons_saw_blade
	glyphicons_basketball		glyphicons_server
	glyphicons_server_plus		glyphicons_server_minus
	glyphicons_server_ban		glyphicons_server_flag
	glyphicons_server_lock		glyphicons_server_new

Glyphicons Social

	glyphicons-pinterest		glyphicons-dropbox
	glyphicons-google_plus		glyphicons-jolicloud
	glyphicons-yahoo		glyphicons-blogger
	glyphicons-picasa		glyphicons-amazon
	glyphicons-tumblr		glyphicons-wordpress
	glyphicons-instapaper		glyphicons-evernote
	glyphicons-xing		glyphicons-zootool
	glyphicons-dribbble		glyphicons-deviantart
	glyphicons-read_it_later		glyphicons-linked_in
	glyphicons-forrst		glyphicons-pinboard
	glyphicons-behance		glyphicons-github
	glyphicons-youtube		glyphicons-skitch
	glyphicons-4square		glyphicons-quora
	glyphicons-badoo		glyphicons-spotify
	glyphicons-stumbleupon		glyphicons-readability
	glyphicons-facebook		glyphicons-twitter
	glyphicons-instagram		glyphicons-posterous_spaces
	glyphicons-vimeo		glyphicons-flickr
	glyphicons-last_fm		glyphicons-rss
	glyphicons-skype		glyphicons-e-mail
	glyphicons-vine		glyphicons-myspace
	glyphicons-goodreads		glyphicons-apple
	glyphicons-windows		glyphicons-yelp
	glyphicons-playstation		glyphicons-xbox
	glyphicons-android		glyphicons-ios

Limitations

Designed and built by @nuzzis with the inspiration of bootstrap.
Code licensed under Apache License v2.0, documentation under CC BY 3.0.

Files

README.md

Latest commit

History

README.md

File metadata and controls

Wriststrap

Installation:

Version: Version 1

Examples

About

Code example

Wriststrap TSS Classes

Overview

Mobile first

Default Element styling

Position helper classes

layout TSS helper classes

Styling

Borders

Layout

Layout TSS Details

Grid System

Typography

Typography TSS Details

Headings

Paragraphs

Text Formatting and Positioning

Address and Cite

Buttons

Button TSS Details

Button types

Images

Image TSS Details

Styles And Colors

Styles And Colors TSS Details

Alerts

Alert TSS Details

Panels

Panel TSS Details

Wells

Wells TSS Details

Inputs

Inputs TSS Details

Input TSS helper classes

Tables

Table TSS helper classes

Scrollable

Scrollable TSS helper classes

ScrollView

ScrollView TSS helper classes

Widgets

wriststrap.dialog

Usage:

wriststrap.picker

Usage:

wriststrap.autocomplete

Usage:

Appendix

Fonts

Additional fonts

Available iOS fonts (includes iOS 7)

Supported Glyph libraries

Glyph libraries installation:

Limitations

`layout` TSS helper classes
