meta-openbmc-nuvoton-addon

This README file contains information on the contents of the meta-openbmc-nuvoton-addon layer.

Please see the corresponding sections below for details.

Dependencies

This layer depends on:

  URI: git@github.com:openbmc/openbmc
  branch: master

Contacts for Patches

Please submit any patches against the meta-openbmc-nuvoton-addon layer to the maintainer of nuvoton:

How to apply this layer

** Adding the meta-openbmc-nuvoton-addon layer to your build. **

In order to use this layer, you need to make the build system aware of it.

Assuming the meta-openbmc-nuvoton-addon layer exists at the top-level of your yocto build tree, you can add it to the build system by adding the location of the meta-openbmc-nuvoton-addon layer to bblayers.conf, along with any other layers needed. e.g.:

BBLAYERS ?= " \
    /path/to/yocto/meta \
    /path/to/yocto/meta-poky \
    /path/to/yocto/meta-yocto-bsp \
    /path/to/yocto/meta-meta-openbmc-nuvoton-addon \
    "

Table of Contents

Enabled Features

WebUI

OBMC iKVM

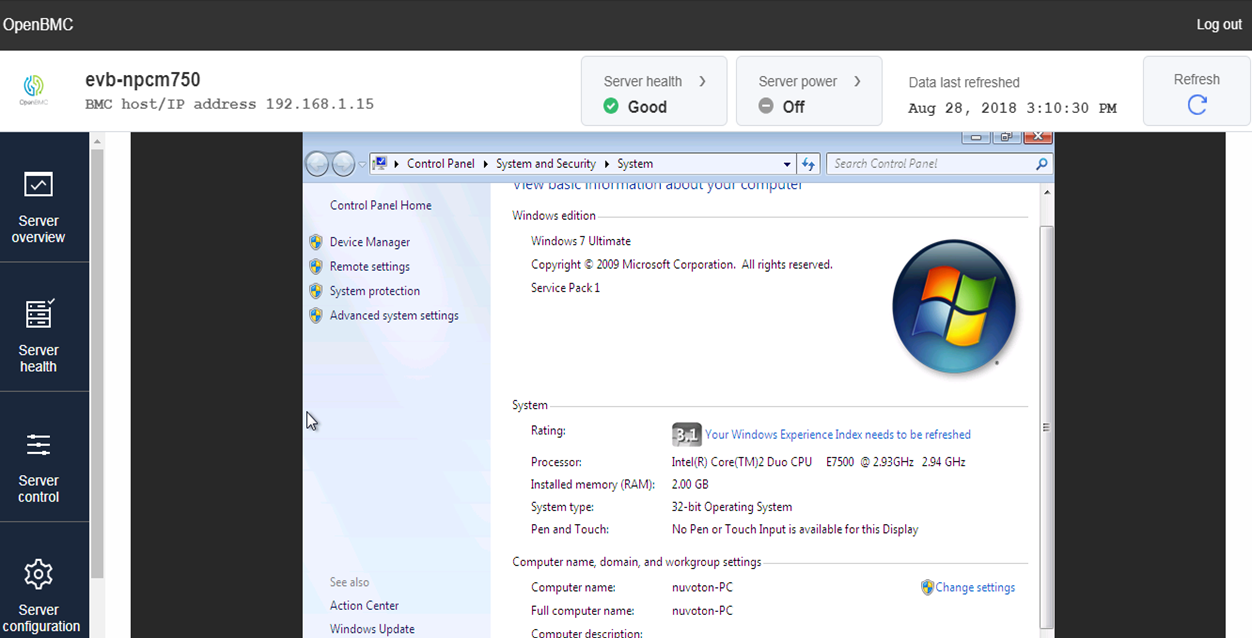

This is a Virtual Network Computing (VNC) server programm using our modified LibVNCServer.

  1. Support Video Capture and Differentiation(VCD), compares frame by hardware.
  2. Support Encoding Compression Engine(ECE), 16-bit hextile compression hardware encoding.
  3. Support USB HID, support Keyboard and Mouse.

The VNC viewer also enabled in webui with below patches.

  1. Implement KVM in webui using novnc module
  2. Remove sending sec-websocket-protocol in novnc module

Source URL

How to use

  1. Prepare a motherboard with a PCI-E slot at least.

  2. Plug Poleg EVB into motherboard with PCI-E connection.

  3. Connect a micro usb cable from your workstation to J1 header of Poleg EVB.

  4. Connect an ethernet cable between your workstation and J12 header of Poleg EVB.

  5. Power up the Poleg EVB and motherboard.

    • Noted the power on sequence to ensure the graphic of Poleg EVB is attached.
      Poleg EVB -> motherboard

  6. Make sure the network is connected with your workstation.

  7. Launch a browser in your workstation and you will see the entry page.

    https://<poelg ip>

  8. Login to OpenBMC home page

    Username: root
Password: 0penBmc

  9. Navigate to KVM viewer page

    https://<poelg ip>/#kvm

Maintainer

  • Joseph Liu

SOL

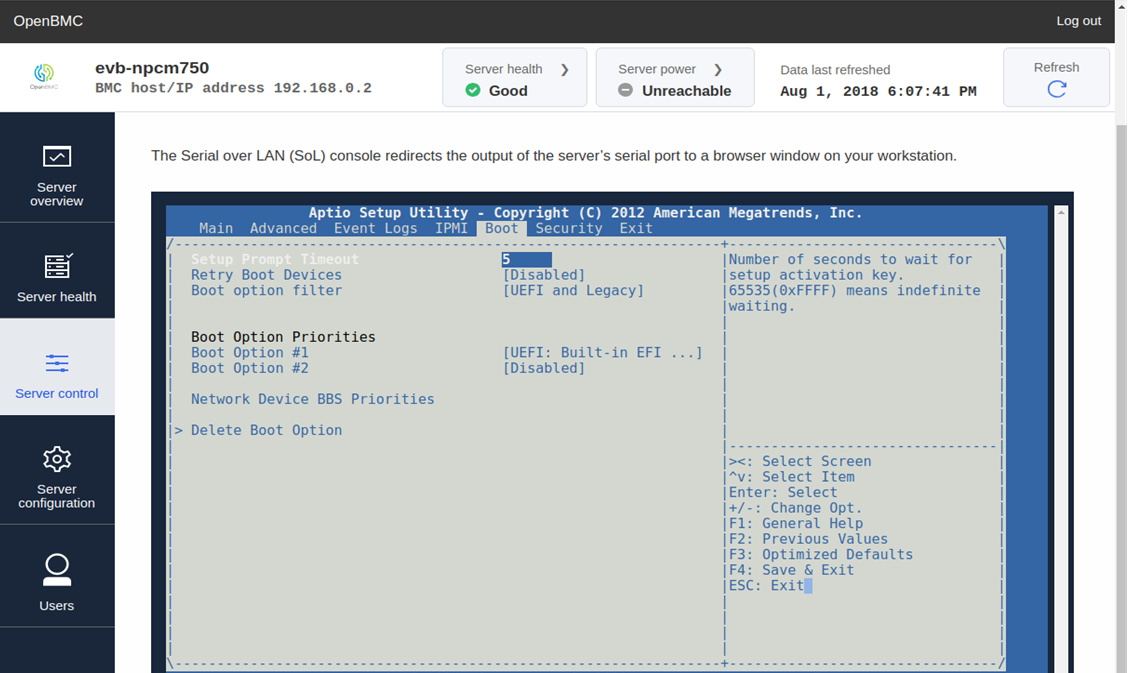

The Serial over LAN (SoL) console redirects the output of the server’s serial port to a browser window on your workstation.

This is a patch for enabling SOL in phosphor-webui on Nuvoton's NPCM750.

The patch provides the obmc-console configuration.

It's verified with Nuvoton's NPCM750 solution (which is referred as Poleg here) and Supermicro MBD-X9SCL-F-0.

Source URL

How to use

  1. Prepare a Poleg EVB with up-to-date boot block, Uboot and OpenBMC versions with this SOL patch applied. Check with Nuvoton support for the most recent versions.

  2. Prepare a Supermicro MBD-X9SCL-F-0 motherboard and a LPC cable.

    The UEFI firmware version in Supermicro MBD-X9SCL-F-0 for verification is 2.15.1234.

  3. Connect pins of the JTPM header on Supermicro MBD-X9SCL-F-0 to the J10 header on Poleg EVB with the LPC cable:

    • Connect pin 1-3, 5, 7-8, 10-12, 15-17 of JTPM with corresponding pins of J10, one on one.

  4. Steps to copy UEFI SOL related drivers to a USB drive.

  5. Power up the Poleg EVB and steps to prepare a working terminal for Poleg:

    • Download and install the USB-to-UART driver from: http://www.ftdichip.com/Drivers/VCP.htm according to the host OS in your workstation.
    • Connect a micro usb cable from your workstation to J2 header of Poleg EVB.
    • Wait for the FTDI driver to be installed automatically. The COM port number is assigned automatically.
    • Open a terminal (e.g., Tera Term version 4.87) and set the correct COM port number assigned by the FTDI driver (in previous step).
    • The COM port should be configured as follows: 115200, 8 bit, 1 stop-bit, no parity, no flow control.
    • Press and release the PWR-ON-RST (SW3) button to issue a Power-On-reset. It's expected to see messages output by Poleg on the terminal. Use the following login name/password to login into Poleg.
      • Login name: root
      • Login password: 0penBmc

  6. Steps to configure Supermicro MBD-X9SCL-F-0 UEFI setting for SOL:

    • Do not plug any bootable device into Supermicro MBD-X9SCL-F-0.
    • Power up Supermicro MBD-X9SCL-F-0 and boot into UEFI setting.
    • Navigate to Super IO Concifugration in Advanced menu option and enter into Super IO Concifugration.
    • Configure serial port 1 to IO=3E8h; IRQ=5, and then disable it.
    • Go back to the main UEFI setting.
    • Navigate to Boot menu option and select UEFI: Built-in EFI Shell as Boot Option #1.
      • Make sure that the rest boot options are set to Disabled.
    • Navigate to Exit menu option and select Save changes and Reset.
    • Press Yes in the prompt window and it will reboot then.
    • Wait for Supermicro MBD-X9SCL-F-0 to boot into UEFI shell.
    • Plug the USB drive prepared in step-4 into Supermicro MBD-X9SCL-F-0's usb slot.
    • Input the following command at UEFI shell prompt, press enter key and it will route to UEFI shell again.
      exit
    • Check the device mapping table of the USB drive in UEFI shell. It is fs0: here for example.
    • Input the following command at UEFI shell prompt, press enter key and the prompt will show fs0:> from now.
      fs0:
    • Input the following command at UEFI shell prompt and press the enter key.
      load PolegSerialDxe.efi
    • Input the following command at UEFI shell prompt and press the enter key.
      load TerminalDxe.efi
    • Unplug the usb drive.
    • Input the following command at UEFI shell prompt, press the enter key and it will route to the UEFI setting.
      exit

  7. Configure the ethernet communication between your workstation and Poleg EVB:

    • Connect an ethernet cable between your workstation and J7 header of Poleg EVB.
    • Configure your workstation's ip address to 192.168.0.1 and the netmask to 255.255.255.0 as an example here.
    • Configure Poleg EVB ip address to 192.168.0.2 and the netmask to 255.255.255.0. For example, input the following command in the terminal connected to Poleg EVB on your workstation and press enter key.
      ifconfig eth0 192.168.0.2 netmask 255.255.255.0

  8. Run SOL:

    • Please disable the proxy setting for this test if it's configured.
    • Launch a browser in your workstation and navigate to https://192.168.0.2.
    • By pass the secure warning and continue to the website.
    • Enter the BMC Username and Password (defaults: root/0penBmc).
    • You will see the OpenBMC management screen.
    • Click Server control at the left side of the OpenBMC management screen.
    • A Serial over LAN console menu item prompts then and click it.
    • A specific area will display the UEFI setting of Supermicro MBD-X9SCL-F-0.
    • (Optional) If the area doesn't display the UEFI setting clearly, use the mouse pointer to click in the area and press the Esc key.
      • It shows a prompt window named Exit Without Saving, choose No and press enter key to refresh the area for showing UEFI setting entirely.
    • Please enable the proxy setting if it's just disabled for the test.

Maintainer

  • Tyrone Ting
  • Stanley Chu

VM

Virtual Media (VM) is to emulate an USB drive on remote host PC via Network Block Device(NBD) and Mass Storage(MSTG).

Source URL

How to use

  1. Clone a physical usb drive to an image file

    • For Linux - use tool like dd

      dd if=/dev/sda of=usb.img bs=1M count=100

      bs here is block size and count is block count.

      For example, if the size of your usb drive is 1GB, then you could set "bs=1M" and "count=1024"

    • For Windows - use tool like Win32DiskImager.exe

    NOTICE : A simple *.iso file cannot work for this.

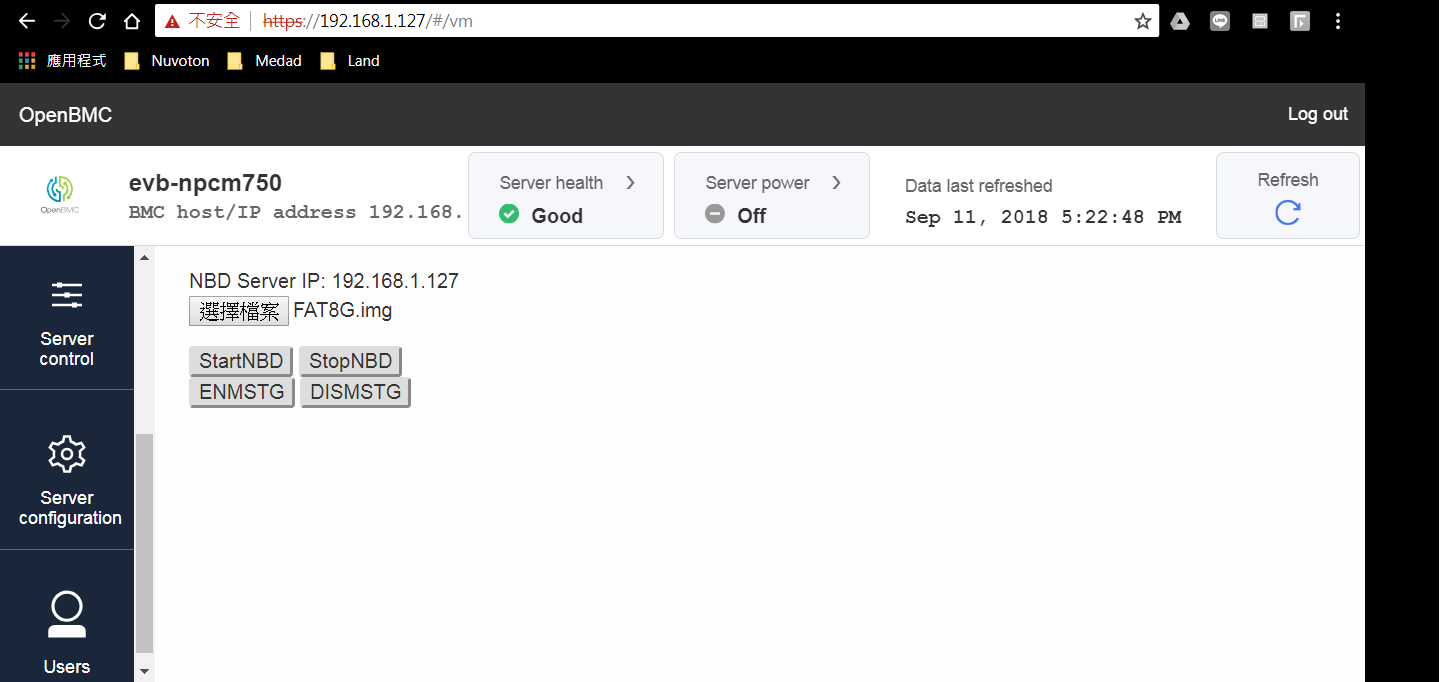

  2. Switch to webpage of VM on your browser

    https://XXX.XXX.XXX.XXX/#/vm

    Please login to BMC first.

  3. Operations of VM

    • After Chose File, click Start VM to start VM network service (still not hook USB disk to host platform)
    • After Start VM, click Mount USB to hook the emulated usb disk to host platform, or click Stop VM to stop VM network service.
    • After Mount USB, click UnMount USB to emulate unplugging the usb disk from host platform
    • After UnMount USB, click Stop VM to stop VM network service, or click Mount USB to hook USB disk to host platform.

Maintainer

  • Medad CChien

Event Log Dump

System

User Management

  • LDAP

Time

  • SNTP
    Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched, variable-latency data networks.

    systemd-timesyncd is a daemon that has been added for synchronizing the system clock across the network. It implements an SNTP (Simple NTP) client. This daemon runs with minimal privileges, and has been hooked up with systemd-networkd to only operate when network connectivity is available.

    The modification time of this file indicates the timestamp of the last successful synchronization (or at least the systemd build date, in case synchronization was not possible).

    /var/lib/systemd/timesync/clock

    Source URL

    How to use

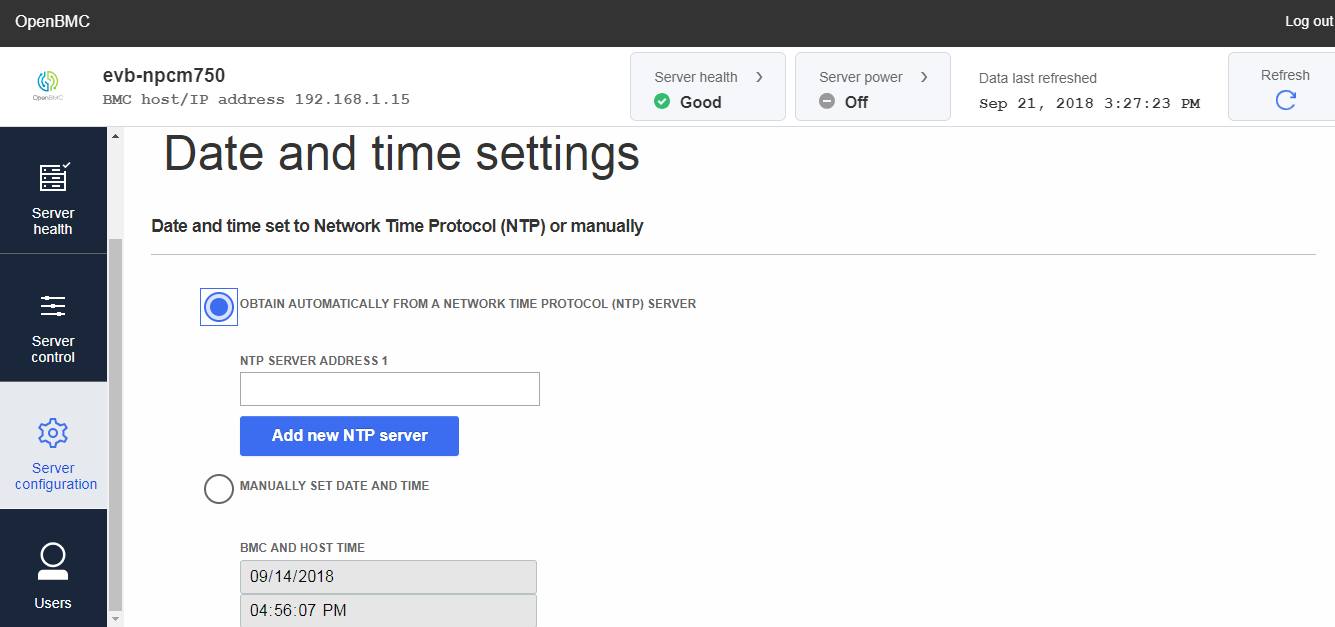

    • Enable NTP by Web-UI Server configuration
      ->Date and time settings

    • Enable NTP by command

      timedatectl set-ntp true

      timedatectl result will show systemd-timesyncd.service active: yes

      If NTP is Enabled and network is Connected (Using eth2 connect to router), we will see the item systemd-timesyncd.service active is yes and System clock synchronized is yes. Thus, system time will sync from NTP server to get current time.

    • Get NTP status

      timedatectl

      Local time: Mon 2018-08-27 09:24:51 UTC
      Universal time: Mon 2018-08-27 09:24:51 UTC
      RTC time: n/a
      Time zone: n/a (UTC, +0000)
      System clock synchronized: yes
      systemd-timesyncd.service active: yes
      RTC in local TZ: no

    • Disable NTP

      timedatectl set-ntp false

      timedatectl result will show systemd-timesyncd.service active: no

    • Using Local NTP server Configuration
      When starting, systemd-timesyncd will read the configuration file from /etc/systemd/timesyncd.conf, which looks like as below:

      [Time]
      #NTP=
      #FallbackNTP=time1.google.com time2.google.com time3.google.com time4.google.com

      By default, systemd-timesyncd uses the Google Public NTP servers time[1-4].google.com, if no other NTP configuration is available. To add time servers or change the provided ones, uncomment the relevant line and list their host name or IP separated by a space. For example, we setup NB windows 10 system as NTP server with IP 192.168.1.128

      [Time]
      NTP=192.168.1.128
      #FallbackNTP=time1.google.com time2.google.com time3.google.com time4.google.com

    • Poleg connect to local NTP server of windows 10 system
      Connect to NB through eth0 EMAC interface, and set static IP 192.168.1.15

      ifconfig eth0 up
ifconfig eth0 192.168.1.15

      Note: Before that you need to setup your NTP server (192.168.1.128) on Windows 10 system first

      Modify /etc/systemd/timesyncd.conf file on Poleg as we mentioned

      [Time]
      NTP=192.168.1.128

      Re-start NTP to make effect about our configuration change

      systemctl restart systemd-timesyncd.service

      Check status of NTP that show already synced to our local time server

      systemctl status systemd-timesyncd.service -l --no-pager

      Status: "Synchronized to time server 192.168.1.128:123 (192.168.1.128)."

      Verify Web-UI Server overview->BMC time whether sync from NTP server as same as timedatectl. (Note: timedatectl time zone default is UTC, thus you will find the BMC time is UTC+8)

      timedatectl

      Local time: Thu 2018-09-06 07:24:16 UTC
      Universal time: Thu 2018-09-06 07:24:16 UTC
      RTC time: n/a
      Time zone: n/a (UTC, +0000)
      System clock synchronized: yes
      systemd-timesyncd.service active: yes
      RTC in local TZ: no

  • Time settings
    Phosphor-time-manager provides two objects on D-Bus

    /xyz/openbmc_project/time/bmc
    /xyz/openbmc_project/time/host

    BMC time is used by journal event log record, and Host time is used by Host do IPMI Set SEL Time command to sync BMC time from Host mechanism in an era of BMC without any network interface.
    Currently, we cannot set Host time no matter what we use busctl, REST API or ipmitool set time set command. Due to phosphor-settingd this daemon set default TimeOwner is BMC and TimeSyncMethod is NTP. Thus, when TimeOwner is BMC that is not allow to set Host time anyway.

    A summary of which cases the time can be set on BMC or HOST

    Mode Owner Set BMC Time Set Host Time
    NTP BMC Fail to set Not allowed (Default setting)
    NTP HOST Not allowed Not allowed
    NTP SPLIT Fail to set OK
    NTP BOTH Fail to set Not allowed
    MANUAL BMC OK Not allowed
    MANUAL HOST Not allowed OK
    MANUAL SPLIT OK OK
    MANUAL BOTH OK OK

    If user would like to set Host time that need to set Owner to SPLIT in NTP mode or set Owner to HOST/SPLIT/BOTH in MANUAL mode. However, change Host time will not effect BMC time and journal event log timestamp.

    Set Time Owner to Split

    ### With busctl on BMC
busctl set-property xyz.openbmc_project.Settings \
   /xyz/openbmc_project/time/owner xyz.openbmc_project.Time.Owner \
   TimeOwner s xyz.openbmc_project.Time.Owner.Owners.Split

### With REST API on remote host
curl -c cjar -b cjar -k -H "Content-Type: application/json" -X  PUT  -d \
   '{"data": "xyz.openbmc_project.Time.Owner.Owners.Split" }' \
   https://${BMC_IP}/xyz/openbmc_project/time/owner/attr/TimeOwner

    TimeZone
    According OpenBMC current design that only support UTC TimeZone now, we can use below command to get current support TimeZone on Poleg

    timedatectl list-timezones

Sensor

  • Enabled Sensor Types
  • Event Generation

IPMI / DCMI

SOL IPMI

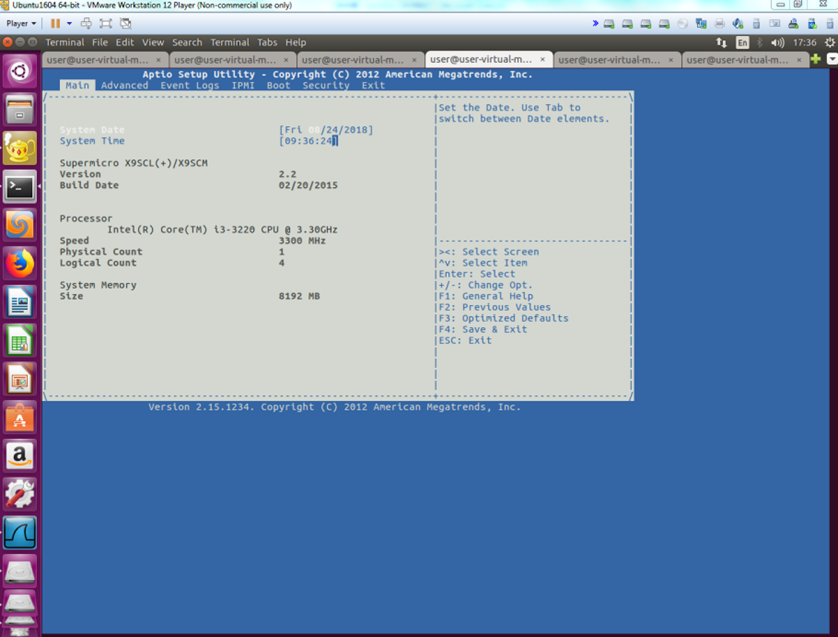

The Serial over LAN (SoL) via IPMI redirects the output of the server’s serial port to a command/terminal window on your workstation.

The user uses the ipmi tool like ipmiutil to interact with SOL via IPMI. Here the ipmiutil is used as an example.

This is a patch for enabling SOL via IPMI using phosphor-net-ipmid on Nuvoton's NPCM750.

The patch integrates phosphor-net-ipmid into Nuvoton's NPCM750 solution for OpenBMC.

It's verified with Nuvoton's NPCM750 solution (which is referred as Poleg here) and Supermicro MBD-X9SCL-F-0.

Source URL

How to use

  1. Please follow instructions from step-1 to step-7 in SOL How to use section to configure your workstation, NPCM750 solution and Supermicro MBD-X9SCL-F-0.

  2. Download the ipmiutil according to the host OS in your workstation.

    Here it's assumed that the host OS is Windows 7 and ipmiutil for Windows is downloaded and used accordingly.

  3. Run SOL:

    • Extract or install the ipmiutil package to a folder in your workstation in advance.
    • Launch a command window and navigate to that folder.
    • Input the following command in the command window.
      ipmiutil sol -N 192.168.0.2 -U admin -P 0penBmc -J 3 -V 4 -a
    • (Optional) If the area doesn't display the UEFI setting clearly, the user could press the Esc key once.
      • It shows a prompt window named Exit Without Saving, choose No and press enter key to refresh the area for showing UEFI setting entirely.
    • (Optional) Configure the Properties of the command window to see the entire output of SOL.

      Screen Buffer Size Width: 200
      Screen Buffer Size Height: 400
      Window Size Width: 100
      Window Size Height: 40

  4. End SOL session:

    • Press the "`" key (using the shift key) and "." key at the same time in the command window.
    • Input the following command in the command window.
      ipmiutil sol -N 192.168.0.2 -U admin -P 0penBmc -J 3 -V 4 -d

Maintainer

  • Tyrone Ting
  • Stanley Chu

Message Bridging

BMC Message Bridging provides a mechanism for routing IPMI Messages between different media.

Please refer to IPMI Website for details about Message Bridging.

  • KCS to IPMB

The command "Send Message" is used to routing IPMI messages from KCS to IPMB via System Interface.

Later, the response to the bridged request is received by the BMC and routed into the Receive Message Queue and it is retrieved using a Get Message command.

The patch integrates the kcsbridge, ipmid and ipmbbridge projects.

It's verified with Nuvoton's NPCM750 solution (which is referred as Poleg here) and Supermicro MBD-X9SCL-F-0.

Source URL

How to use

  1. The user is expected to know how to follow the instructions in the section Setting up your OpenBMC project in Nuvoton-Israel/openbmc to build and program an OpenBMC image into Poleg EVBs.

    • Prepare a PC (which is referred as a build machine here) for building and programming the OpenBMC image.

      The user is also expected to have general knowledge of ACPI/UEFI and know how to update the DSDT table in linux and build/update a linux kernel/driver.

  2. Prepare two Nuvoton Poleg EVBs. One is named Poleg EVB A and the other is Poleg EVB B.

    • Connect pin 3-4 of J4 on Poleg EVB A with corresponding pins of J4 on Poleg EVB B, one on one.
    • Connect pin 12 of J3 on Poleg EVB A with corresponding pin of J3 on Poleg EVB B, one on one.
    • The connection needs a 1k resistor and a 3.3v supply from Poleg EVB A.

      The component name of 3.3v supply is P4.

  3. Follow instructions from step-1, step-2, step-3 and step-5 in SOL How to use section to set up your workstation, Poleg EVB A and Supermicro MBD-X9SCL-F-0.

    Follow instructions from step-1 and step-5 in SOL How to use section to set up Poleg EVB B.

  4. Install Ubuntu 14.04 64bit on Supermicro MBD-X9SCL-F-0 for the verification and login as a normal user.

    The user is required to own root privileges on Ubuntu.

  5. Poleg EVB A is configured to have its own slave address 0x10. Poleg EVB B is configured to have its own slave address 0x58.

    Poleg EVB A treats Poleg EVB B as its attached device on SMBUS/I2C bus and vice versa.

  6. In the build machine, download Nuvoton-Israel/openbmc git repository.

  7. Download patches to meet the requirement of step-5 for Poleg EVB B.

    • Download 0001-i2c-npcm750-enable-I2C-slave-support.patch and overwrite the same original file located under meta-openbmc-nuvoton-addon/recipes-kernel/linux/files folder in the downloaded openbmc directory of the build machine.

    • In the build machine, rebuild the linux kernel for OpenBMC. As an example, enter the following command in a terminal window (build environment is configured in advance):

      bitbake -C fetch virtual/kernel

    • Download kcs_to_ipmb_message_bridging.patch under the meta-openbmc-nuvoton-addon/recipes-phosphor/ipmi/phosphor-ipmi-ipmb folder in the downloaded openbmc directory of the build machine.

    • In the build machine, open a terminal window and navigate to the meta-openbmc-nuvoton-addon/recipes-phosphor/ipmi/phosphor-ipmi-ipmb folder in the downloaded openbmc directory.

    • Enter the following command in the terminal window in the build machine.

      patch -p1 < ./kcs_to_ipmb_message_bridging.patch

    • In the build machine, rebuild the ipmbbridge for OpenBMC. As an example, enter the following command in a terminal window (build environment is configured in advance):

      bitbake -C fetch phosphor-ipmi-ipmb

    • In the build machine, rebuild the OpenBmc image. As an example, enter the following two commands in a terminal window (build environment is configured in advance):

      bitbake obmc-phosphor-image -c cleansstate
bitbake obmc-phosphor-image

    • Follow the section Programming the images of Nuvoton-Israel/openbmc to program the updated image into Poleg EVB B.

  8. Modify the system interface driver in Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0 to communicate with Poleg EVB A.

    • Download the kernel source code of Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0 and locate the system interface driver source code.

    • Locate the code in the function init_ipmi_si of ipmi_si_intf.c.

      enum ipmi_addr_src type = SI_INVALID;

    • Add the code next to the sentence "enum ipmi_addr_src type = SI_INVALID".

      return -1;

    • Rebuild the system interface driver and replace ipmi_si.ko of Ubuntu 14.04 with the one just rebuilt on Supermicro MBD-X9SCL-F-0.

      The original ipmi_si.ko is located at /lib/modules/`$(uname -r)`/kernel/drivvers/char/ipmi

    • Undo the "return -1" modification in the function init_ipmi_si of ipmi_si_intf.c.

      • Rebuild the system interface driver again and leave the regenerated ipmi_si.ko in the kernel source code ipmi directory for system interface driver.

    • Reboot Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

  9. Update the DSDT table in Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

    • Study the section How to build a custom DSDT into an initrd of overriding-dsdt and initrd_table_override.txt to override DSDT in the initrd image of Ubuntu 14.04 and rebuild the Ubuntu kernel on Supermicro MBD-X9SCL-F-0.

    • In the DSDT table, update the OEMRevision field in DefinitionBlock.

    • In the DSDT table, create two objects used for accessing Poleg EVB A KCS devices via 0x4E, 0x4F.

      Name (IDTP, 0x0CA4)
Name (ICDP, 0x0CA5)

    • Locate the code section like below.

      Device (SPMI)
{
    ...
    Name (_STR, Unicode ("IPMI_KCS"))
    Name (_UID, Zero)

    • Add the codes below following the sentence "Name (_UID, Zero)".

      OperationRegion (IPST, SystemIO, ICDP, One)
Field (IPST, ByteAcc, NoLock, Preserve)
{
    STAS,   8
}

    • Locate the code section like below in the same SPMI code section just mentioned.

      Method (_STA, 0, NotSerialized)
...
If (LEqual (Local0, 0xFF))
{
...

    • Add the codes below inside the "If" sentence scope.

      Store (0x11, LDN)
Store (0x1,  ACTR)
Store (0x0C, IOAH)
Store (0xA4, IOAL)
Store (0x0C, IOH2)
Store (0xA5, IOL2)

    • Rebuild the modified DSDT table and regenerate the initrd image of Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

    • Reboot Supermicro MBD-X9SCL-F-0 to load the overriden DSDT.

  10. (Optional)Create shell scripts in Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

    • The scripts here are just for convenience and for reference.

    • Download and build ioport-1.2.tar.gz.

      • Locate the generated outb executive.

    • Create a script named "kcs_switch.sh" for example to configure the access to the kcs device of Poleg EVB A from Supermicro MBD-X9SCL-F-0.

    • The user needs to modify the path to the outb executive in the script (kcs_switch.sh) below.

      #!/bin/sh
outb 0x4e 0x07
outb 0x4f 0x11

outb 0x4e 0x30
outb 0x4f 0x1

outb 0x4e 0x60
outb 0x4f 0x0C
outb 0x4e 0x61
outb 0x4f 0xA4
outb 0x4e 0x62
outb 0x4f 0x0C
outb 0x4e 0x63
outb 0x4f 0xA5

    • Create a script name "insert_ipmi_mod.sh" for example to use the regenerated KCS driver in the kernel source code ipmi directory metioned in step-8.

    • The user needs to modify the path to the KCS driver in insert_ipmi_mod.sh below.

      #!/bin/sh
sudo insmod ./ipmi_devintf.ko
sudo insmod ./ipmi_si.ko

    • Make sure that two scripts above are executable.

  11. Install the ipmiutil in Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

    • Download, extract, build and install ipmiutil-3.1.2.tar.gz.
    • Open a terminal window and navigate to the extracted folder of ipmiutil-3.1.2.tar.gz.
    • Input the following command in the terminal window.
      sudo ./scripts/ipmi_if.sh
    • This generates /var/lib/ipmiutil/ipmi_if.txt.
    • Edit /var/lib/ipmiutil/ipmi_if.txt with the root privilege.
    • The value for "Base Address:" is 0x0000000000000CA2 (I/O) and modify it to 0x0000000000000CA4 (I/O).

  12. Test message bridging.

    • Power up or reboot Poleg EVB A and Poleg EVB B. Make sure that login screens of Poleg EVBs are displayed on the terminal window (e.g. Tera Term) on your workstation.

    • Power up or reboot Supermicro MBD-X9SCL-F-0 and login into Ubuntu 14.04 as a normal user.

      • Open a terminal window and execute kcs_switch.sh and insert_ipmi_mod.sh created in step-10 with the root privilege.

      • If the scripts are not created, input the contents of kcs_switch.sh and insert_ipmi_mod.sh except the #!/bin/sh line manually.

      • The user can use the following command in a terminal window under Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0 to verify Poleg system interface.

        dmesg | grep -i "bmc"

      • The user can check the man_id. For example, the man_id is 0x000000 for this case.

    • Enter the following command in a terminal window as a normal user of Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

      sudo ipmiutil cmd 18 34 02 10 18 d8 20 0e 01 d1 -x -s -j -F kcs

      The example command in the data field of "Send Message" command is "Get Device ID".

    • Enter the following command in a terminal window as a normal user of Ubuntu 14.04 on Supermicro MBD-X9SCL-F-0.

      sudo ipmiutil cmd 18 33 -x -s -j -F kcs

      The response to "Get Device ID" command might be "respData[len=26]: 1c 33 00 02 1e c2 58 00 01 00 00 00 02 03 02 00 00 00 00 00 00 00 00 00 00 a0".

Maintainer

  • Stanley Chu
  • Tyrone Ting

IPMI Comamnds Verified

Command KCS RMCP+ IPMB
IPM Device Global Commands
Device ID V V V
Cold Reset V V
Warm Reset V V
Get Self Test Results V V
Manufacturing Test On
Set ACPI Power State V V
Get ACPI Power State
Get Device GUID V V
Get NetFn Support
Get Command Support
Get Command Sub-function Support
Get Configurable Commands
Get Configurable Command Sub-functions
Set Command Enables
Get Command Enables
Set Command Sub-function Enables
Get Command Sub-function Enables
Get OEM NetFn IANA Support
BMC Watchdog Timer Commands
Reset Watchdog Timer V V
Set Watchdog Timer V V
Get Watchdog Timer V V
BMC Device and Messaging Commands
Set BMC Global Enables
Get BMC Global Enables
Clear Message Flags
Get Message Flags V V
Enable Message Channel Receive
Get Message V
Send Message V
Read Event Message Buffer V V
Get System GUID V V
Set System Info Parameters
Get System Info Parameters
Get Channel Authentication Capabilities V
Get Session Challenge
Activate Session
Set Session Privilege Level V
Close Session V
Get Session Info
Get AuthCode
Set Channel Access
Get Channel Access
Get Channel Info Command
User Access Command
Get User Access Command
Set User Name
Get User Name Command
Set User Password Command
Activate Payload V
Deactivate Payload V
Get Payload Activation Status V
Get Payload Instance Info V
Set User Payload Access
Get User Payload Access
Get Channel Payload Support
Get Channel Payload Version
Get Channel OEM Payload Info
Master Write-Read
Get Channel Cipher Suites
Suspend/Resume Payload Encryption
Set Channel Security Keys
Get System Interface Capabilities
Firmware Firewall Configuration
Chassis Device Commands
Get Chassis Capabilities
Get Chassis Status
Chassis Control
Chassis Reset
Chassis Identify V V
Set Front Panel Button Enables
Set Chassis Capabilities
Set Power Restore Policy
Set Power Cycle Interval
Get System Restart Cause
Set System Boot Options
Get System Boot Options
Get POH Counter
Event Commands
Set Event Receiver
Get Event Receiver
Platform Event
PEF and Alerting Commands
Get PEF Capabilities
Arm PEF Postpone Timer
Set PEF Configuration Parameters
Get PEF Configuration Parameters
Set Last Processed Event ID
Get Last Processed Event ID
Alert Immediate
PET Acknowledge
Sensor Device Commands
Get Device SDR Info V V
Get Device SDR
Reserve Device SDR Repository
Get Sensor Reading Factors
Set Sensor Hysteresis
Get Sensor Hysteresis
Set Sensor Threshold
Get Sensor Threshold
Set Sensor Event Enable
Get Sensor Event Enable
Re-arm Sensor Events
Get Sensor Event Status
Get Sensor Reading
Set Sensor Type
Get Sensor Type
Set Sensor Reading And Event Status
FRU Device Commands
Get FRU Inventory Area Info
Read FRU Data
Write FRU Data
SDR Device Commands
Get SDR Repository Info
Get SDR Repository Allocation Info
Reserve SDR Repository
Get SDR
Add SDR
Partial Add SDR
Delete SDR
Clear SDR Repository
Get SDR Repository Time
Set SDR Repository Time
Enter SDR Repository Update Mode
Exit SDR Repository Update Mode
Run Initialization Agent
SEL Device Commands
Get SEL Info V V
Get SEL Allocation Info
Reserve SEL V V
Get SEL Entry V V
Add SEL Entry V V
Partial Add SEL Entry
Delete SEL Entry V V
Clear SEL V V
Get SEL Time V V
Set SEL Time V V
Get Auxiliary Log Status
Set Auxiliary Log Status
Get SEL Time UTC Offset
Set SEL Time UTC Offset
LAN Device Commands
Set LAN Configuration Parameters
Get LAN Configuration Parameters
Suspend BMC ARPs
Get IP/UDP/RMCP Statistics
Serial/Modem Device Commands
Set Serial/Modem Mux
Set Serial Routing Mux
SOL Activating
Set SOL Configuration Parameters V
Get SOL Configuration Parameters V
Command Forwarding Commands
Forwarded Command
Set Forwarded Commands
Get Forwarded Commands
Enable Forwarded Commands .

Modifications

  • 2018.07.23 First release Remote-KVM
  • 2018.08.02 First release SOL
  • 2018.08.07 Modify Readme.md for adding description about SOL How to use
  • 2018.08.13 Update vcd and ece patch, rename remote-kvm to obmc-ikvm
  • 2018.09.07 Update SOL for WebUI and IPMI
  • 2018.09.10 Update System/Time/SNTP
  • 2018.09.11 Update KCS to IPMB part of Message Bridging
  • 2018.09.12 Update IPMI Comamnds Verified Table
  • 2018.09.13 Update Time settings of System/Time
  • 2018.09.13 Update KCS to IPMB part of Message Bridging about OpenBMC patches and Test message bridging
  • 2018.09.13 Update obmc-ikvm part for WebUI
  • 2018.09.14 First release VM
  • 2018.09.14 Update IPMI Commands Verified Table
  • 2018.09.21 Add NTP screen snapshot for System/Time/SNTP
