NPCM750 RunBMC Olympus

This is the Nuvoton RunBMC Olympus System layer. The NPCM750 is an ARM based SoC with external DDR RAM and supports a large set of peripherals made by Nuvoton. More information about the NPCM7XX can be found here.

Dependencies

This layer depends on:

  URI: git@github.com:Nuvoton-Israel/openbmc
  branch: runbmc

Contacts for Patches

Please submit any patches against the meta-runbmc-nuvoton layer to the maintainer of nuvoton:

Table of Contents

Features of NPCM750 RunBMC Olympus

WebUI

iKVM

This is a Virtual Network Computing (VNC) server programm using LibVNCServer.

  1. Support Video Capture and Differentiation(VCD), compares frame by hardware.
  2. Support Encoding Compression Engine(ECE), 16-bit hextile compression hardware encoding.
  3. Support USB HID, support Keyboard and Mouse.

Source URL

How to use

  1. Power on the Nuvoton RunBMC Olympus
  2. Make sure the network is connected with your workstation.
  3. Launch a browser in your workstation and you will see the entry page.
    /* BMCWeb Server */
https://<poelg ip>
  4. Login to OpenBMC home page
    Username: root
Password: 0penBmc
  5. Navigate to OpenBMC WebUI viewer
    Server control -> KVM

Performance

  • Host OS: Windows Server 2012 R2
Playing video: AQUAMAN Real VNC viewer noVNC viewer
Host Resolution FPS FPS
1024x768 25 8
1280x1024 20 4
1600x1200 14 3
Scrolling bar: Demo video Real VNC viewer noVNC viewer
Host Resolution FPS FPS
1024x768 31 15
1280x1024 24 12
1600x1200 20 7

The preferred settings of RealVNC Viewer

Picture quality: Custom
ColorLevel: rgb565
PreferredEncoding: Hextile

Maintainer

  • Joseph Liu

Serial Over Lan

The Serial over LAN (SoL) console redirects the output of the server’s serial port to a browser window on your workstation.

This is a patch for enabling SOL in phosphor-webui on Nuvoton's NPCM750.

The patch provides the obmc-console configuration.

It's verified with Nuvoton's NPCM750 Olympus solution and Quanta RunBMC.

Source URL

How to use

  1. Setup serial console in Olympus host (Ubuntu as example)

    GRUB_CMDLINE_LINUX="console=tty console=ttyS1,57600"
    • Then make grub.cfg
    sudo grub-mkconfig -o /boot/grub/grub.cfg

  2. Run SOL:

    • Launch a browser in your workstation and navigate to https://${BMC_IP}
    • Bypass the secure warning and continue to the website.
    • Enter the BMC Username and Password (defaults: root/0penBmc).
    • You will see the OpenBMC management screen.
    • Click Server control at the left side of the OpenBMC management screen.
    • A Serial over LAN console menu item prompts then and click it.
    • Power on host server.
    • A specific area will display the host ttyS1 that user can operate host OS.

Maintainer

  • Tyrone Ting

Virtual Media

Virtual Media (VM) is to emulate an USB drive on remote host PC via Network Block Device(NBD) and Mass Storage(MSTG).

Source URL

How to use

  1. Clone a physical USB drive to an image file

    • For Linux - use tool like dd

      dd if=/dev/sda of=usb.img bs=1M count=100

      bs here is block size and count is block count.

      For example, if the size of your USB drive is 1GB, then you could set "bs=1M" and "count=1024"

    • For Windows - use tool like Win32DiskImager.exe

      NOTICE : A simple *.iso file cannot work for this.

  2. Enable Virtual Media

    2.1 VM-WEB

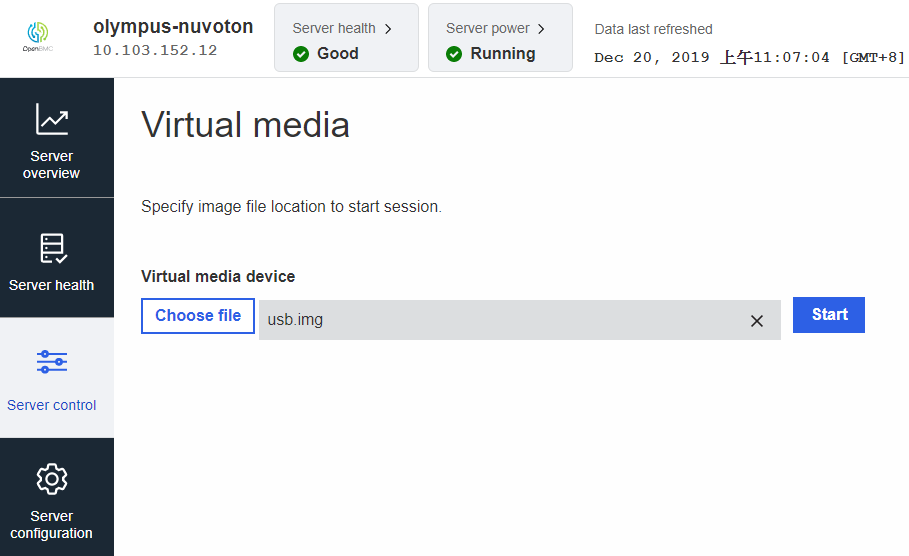

    1. Login and switch to webpage of VM on your browser

      https://XXX.XXX.XXX.XXX/#/server-control/virtual-media

    2. Operations of Virtual Media

      • After Choose File, click Start to start VM network service
      • After clicking Start, you will see a new USB device on HOST OS
      • If you want to stop this service, just click Stop to stop VM network service.

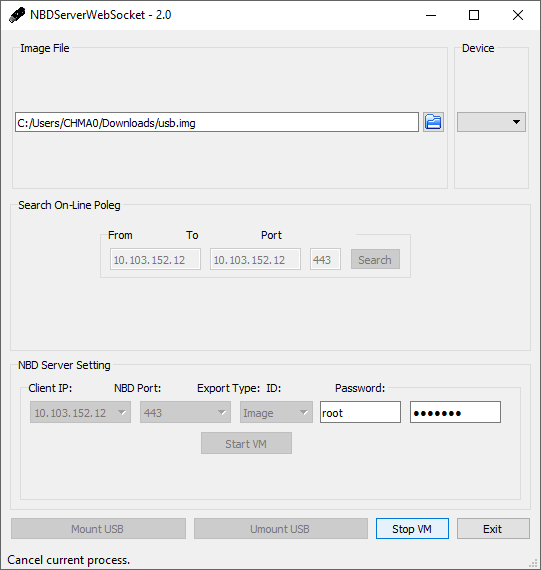

    2.2 VM standalone application

    • Download application source code
    • Follow the readme instructions install QT and Openssl
    • Start QT creator, open project VirtualMedia.pro, then build all
    • Launch windows/linux application

      NOTICE : use sudo to launch app in linux and install nmap first

    • Operations
      • After Chose an Image File or Select an USB Drive, click Search to check which BMCs are on line
      • Select any on line BMC and key in Account/Password, choose the Export Type to Image, and click Start VM to start VM network service (still not hook USB disk to host platform)
      • After Start VM, click Mount USB to hook the emulated USB disk to host platform, or click Stop VM to stop VM network service.
      • After Mount USB, click UnMount USB to emulate unplugging the USB disk from host platform
      • After UnMount USB, click Stop VM to stop VM network service, or click Mount USB to hook USB disk to host platform.

Maintainer

  • Medad CChien

BMC Firmware Update

This is a secure flash update mechanism to update BMC firmware via WebUI.

Source URL

How to use

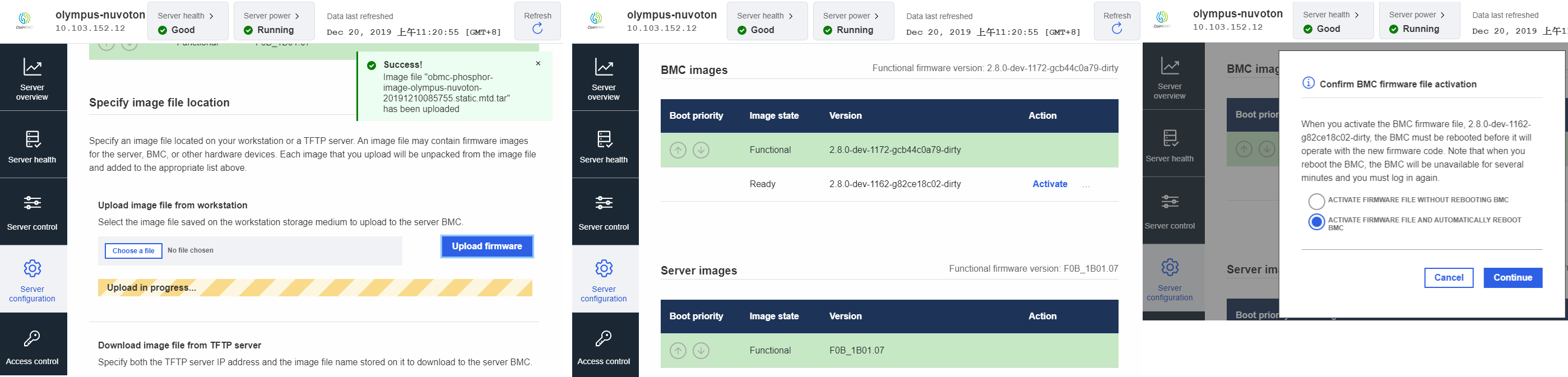

  • Update firmware via WebUI

    1. Upload update package from web UI, then you will see

      Activate

      If you select activate, then you will see activation dialog at item 2

      Delete

      If you select delete, then the package will be deleted right now

    2. Confirm BMC firmware file activation

      ACTIVATE FIRMWARE FILE WITHOUT REBOOTING BMC

      If you select this, you need to reboot BMC manually, and shutdown application will run update script to flash image into SPI flash

      ACTIVATE FIRMWARE FILE AND AUTOMATICALLY REBOOT BMC

      if you select this, BMC will shutdown right now, and shutdown application will run update script to flash image into SPI flash

  • Update firmware via Redfish

    We can update BMC firmware via REST API provided by Redfish. The firmware will apply immediately after uploaded without any confirmation by default. The following command shows how to using curl command upload BMC firmware.

    curl -X POST -H "x-auth-token: ${token}" --data-binary obmc-phosphor-image-olympus-nuvoton.static.mtd.tar https://${BMC_IP}/redfish/v1/UpdateService

    ${token} is the token value come from login API, read more information from REST README

Maintainer

  • Medad CChien

BIOS update

This BIOS update function is implemented according to Openbmc firmware update mechanism. Users can update BIOS just like they update BMC firmware via web UI.

Source URL

How to use

  • Prepare the BIOS image for update

    1. MANIFEST

      The manifest for BIOS must set purpose=xyz.openbmc_project.Software.Version.VersionPurpose.Host, and provide version information. Others information just set as BMC manifest.

      purpose=xyz.openbmc_project.Software.Version.VersionPurpose.Host
version=F0B_1B01.07
KeyType=OpenBMC
HashType=RSA-SHA256

    2. BIOS firmware

      rename BIOS image to image-bios

      mv BIOS image-bios

    3. public key

      Prepare your own key pair for sign BIOS firmware, and put the public key in image. Then sign the image-bios as following command:

      openssl dgst -sha256 -sign userkey.priv -out image-bios.sig image-bios

    4. Sign MANIFEST and public key

      Follow the BMC update signature verify flow, we also need sign MANIFEST and user public key by BMC system key.

      openssl dgst -sha256 -sign OpenBMC.priv -out MANIFEST.sig MANIFEST
openssl dgst -sha256 -sign OpenBMC.priv -out publickey.sig publickey

    5. Collect data and tar image

      Now we have six files, and we just need tar them to a file.

      tar -cf image-bios.tar image-bios image-bios.sig MANIFEST MANIFEST.sig publickey publickey.sig

  • Update BIOS

    There are two way updating BIOS image just like BMC firmware update.

    1. WebUI

      Upload tar image, and active it.

      Server configuration
 -> Firmware
   -> Choose file (select image-bios.tar)
   -> Click "Upload firmware" button
   -> Click "Active" link
       -> Select "ACTIVATE FIRMWARE FILE AND AUTOMATICALLY REBOOT SERVER"
       -> Click Continue

    2. Redfish

      We can update BIOS image via REST API just like BMC firmware. And the image will apply immediately after uploaded by default.

      curl -X POST -H "x-auth-token: ${token}" --data-binary image-bios.tar https://${BMC_IP}/redfish/v1/UpdateService

Maintainer

  • Brian Ma

Server Power Operations

Server Power Operations are using to Power on/Warm reboot/Cold reboot/Orderly shutdown/Immediate shutdown remote host PC.

Source URL

How to use

  1. Configure reaction of power button on generic host OS

    • When host OS is running Linux and you press PWRON header on motherboard, you're prompted with a list of options - this is the interactive shutdown. The OS will go Orderly shutdown for a while if you didn't select any action from it. If you don't want this interactive shutdown pop up and hope OS go Orderly shutdown directly, you can enter below command in terminal before testing:

      gsettings set org.gnome.settings-daemon.plugins.power button-power 'shutdown'

    • When host OS is running Windows and you press PWRON header on motherboard, the default reaction is Orderly shutdown. Thus, you didn't need to configure reaction of power button in Windows. But, if you find the default reaction is not Orderly shutdown, please check Control Panel->Power Options->System Settings in Windows OS.

    • About Watchdog patch

      There is a package phosphor-watchdog included in OpenBMC now. The watchdog daemon is started on host's power on, which is used to monitor if host is alive. In normal case, when host starts, it will send IPMI commands to kick watchdog and so everything would work fine. If host fails to start, the watchdog eventually timeout. However, the default watchdog timeout action is HardReset which is defined at Watchdog.interface.yaml in phosphor-dbus-interfaces that will cause host rebooted after power on.

  2. Configure GPIO pin definitions for POWER_SW, RESET_SW and PGOOD on BMC

    • Pin POWER_SW (GPIO505) is use to do all server power operations, pin RESET_SW (GPIO504) is reserve for reset operations, and PGOOD (GPIO506) is use to monitor DC real status that indicate Server power in WebUI.

    • If other GPIO pins are preferred, please modify the file gpio_defs.json.

    • Content below is a part of gpio_defs.json for this sample:

      "power_config": {
    "power_good_in": "PGOOD",
    "power_up_outs": [
        {"name": "POWER_UP_PIN", "polarity": false},
        {"name": "POWER_UP_PIN", "polarity": true}
    ]
}

"name": "PGOOD",
"num": 506,
"direction": "in"

"name": "POWER_UP_PIN",
"num": 505,
"direction": "out"

"name": "RESET_UP_PIN",
"num": 504,
"direction": "out"

      "name" here is referred in code and fixed, please don't modify it. "num" means GPIO pin number and changeable here, "direction" should be set as "in" for PGOOD, "out" for RESET_UP_PIN and POWER_UP_PIN, and "polarity" should be set as "false" then set as "true" for POWER_UP_PIN accordind NPCM750 schematic.

  3. Server Power on

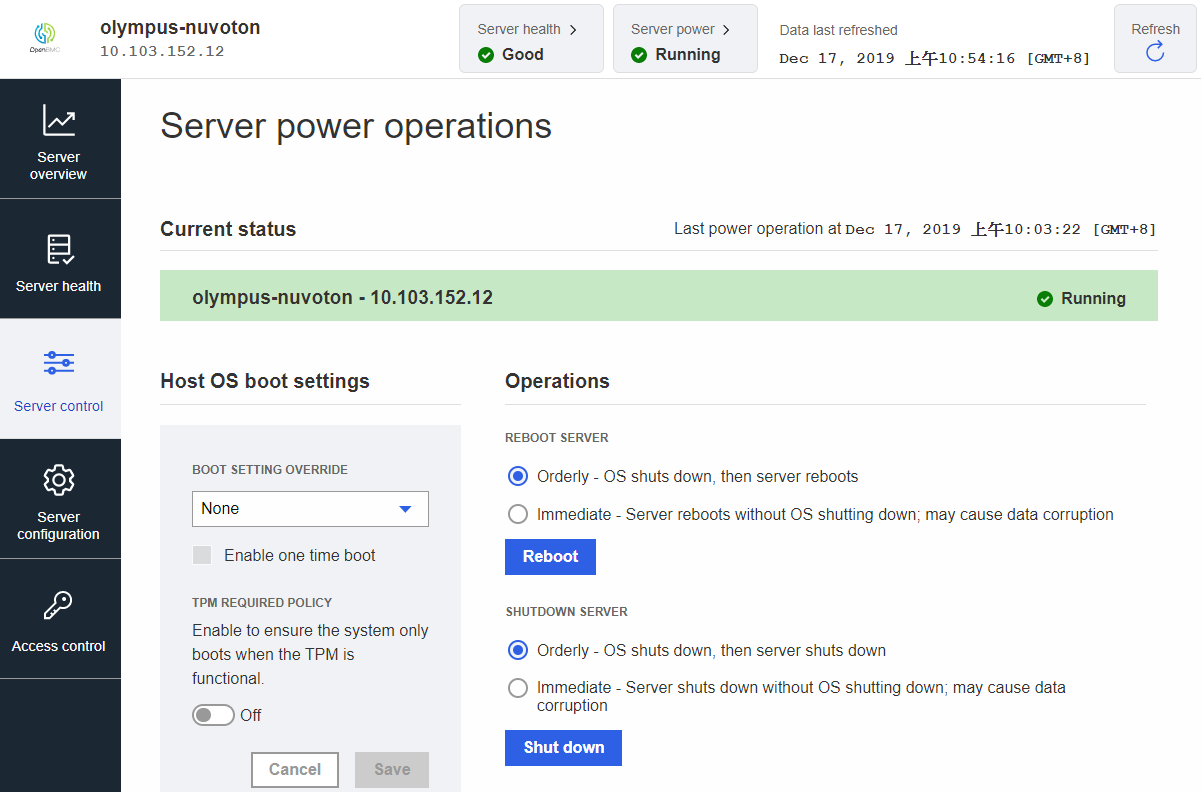

    • Press Power on button from Server control ->Server power operations of WebUI.

      obmc-host-start@.target is the one driving the boot of the system.

  4. Server Power off (Soft)

    • Press Orderly shutdown button from Server control ->Server power operations of WebUI.

      The soft server power off function is encapsulated in the obmc-host-shutdown@.target that is soft in that it notifies the host of the power off request and gives it a certain amount of time to shut itself down.

  5. Server Power off (Hard)

    • Press Immediate shutdown button from Server control ->Server power operations of WebUI.

      The hard server power off is encapsulated in the obmc-chassis-hard-poweroff@.target that will force the stopping of the soft power off service if running, and immediately cut power to the system.

  6. Server Reboot (Warm)

  7. Server Reboot (Cold)

    • Press Cold reboot button from Server control ->Server power operations of WebUI.

      The cold reboot of the server is shutdown server immediately, then restarts it. This target will utilize the Immediate shutdown target obmc-chassis-hard-poweroff@.target and then, start the host power on target obmc-host-start@.target.

Maintainer

  • Tim Lee

System

Time

  • SNTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched, variable-latency data networks.

    systemd-timesyncd is a daemon that has been added for synchronizing the system clock across the network. It implements an SNTP (Simple NTP) client. This daemon runs with minimal privileges, and has been hooked up with systemd-networkd to only operate when network connectivity is available.

    The modification time of the file /var/lib/systemd/timesync/clock indicates the timestamp of the last successful synchronization (or at least the systemd build date, in case synchronization was not possible).

    Source URL

    How to use

    • Enable NTP by Web-UI Server configuration ->Date and time settings

    • Enable NTP by command

      timedatectl set-ntp true

      timedatectl result will show systemd-timesyncd.service active: yes

      If NTP is Enabled and network is Connected (Using eth2 connect to router), we will see the item systemd-timesyncd.service active is yes and System clock synchronized is yes. Thus, system time will sync from NTP server to get current time.

    • Get NTP status

      timedatectl

      Local time: Mon 2018-08-27 09:24:51 UTC
      Universal time: Mon 2018-08-27 09:24:51 UTC
      RTC time: n/a
      Time zone: n/a (UTC, +0000)
      System clock synchronized: yes
      systemd-timesyncd.service active: yes
      RTC in local TZ: no

    • Disable NTP

      timedatectl set-ntp false

      timedatectl result will show systemd-timesyncd.service active: no

    • Using Local NTP server Configuration
      When starting, systemd-timesyncd will read the configuration file from /etc/systemd/timesyncd.conf, which looks like as below:

      [Time]
      #NTP=
      #FallbackNTP=time1.google.com time2.google.com time3.google.com time4.google.com

      By default, systemd-timesyncd uses the Google Public NTP servers time[1-4].google.com, if no other NTP configuration is available. To add time servers or change the provided ones, uncomment the relevant line and list their host name or IP separated by a space. For example, we setup NB windows 10 system as NTP server with IP 192.168.1.128

      [Time]
      NTP=192.168.1.128
      #FallbackNTP=time1.google.com time2.google.com time3.google.com time4.google.com

    • BMC connect to local NTP server of windows 10 system
      Connect to NB through eth0 EMAC interface, and set static IP 192.168.1.15

      ifconfig eth0 up
ifconfig eth0 192.168.1.15

      Note: Before that you need to setup your NTP server (192.168.1.128) on Windows 10 system first

      Modify /etc/systemd/timesyncd.conf file on BMC as we mentioned

      [Time]
      NTP=192.168.1.128

      Re-start NTP to make effect about our configuration change

      systemctl restart systemd-timesyncd.service

      Check status of NTP that show already synced to our local time server

      systemctl status systemd-timesyncd.service -l --no-pager

      Status: "Synchronized to time server 192.168.1.128:123 (192.168.1.128)."

      Verify Web-UI Server overview->BMC time whether sync from NTP server as same as timedatectl. (Note: timedatectl time zone default is UTC, thus you will find the BMC time is UTC+8)

      timedatectl

      Local time: Thu 2018-09-06 07:24:16 UTC
      Universal time: Thu 2018-09-06 07:24:16 UTC
      RTC time: n/a
      Time zone: n/a (UTC, +0000)
      System clock synchronized: yes
      systemd-timesyncd.service active: yes
      RTC in local TZ: no

  • Time settings
    Phosphor-time-manager provides two objects on D-Bus

    /xyz/openbmc_project/time/bmc

    /xyz/openbmc_project/time/host

    BMC time is used by journal event log record, and Host time is used by Host do IPMI Set SEL Time command to sync BMC time from Host mechanism in an era of BMC without any network interface.
    Currently, we cannot set Host time no matter what we use busctl, REST API or ipmitool set time set command. Due to phosphor-settingd this daemon set default TimeOwner is BMC and TimeSyncMethod is NTP. Thus, when TimeOwner is BMC that is not allow to set Host time anyway.

    A summary of which cases the time can be set on BMC or HOST

    Mode Owner Set BMC Time Set Host Time
    NTP BMC Fail to set Not allowed (Default setting)
    NTP HOST Not allowed Not allowed
    NTP SPLIT Fail to set OK
    NTP BOTH Fail to set Not allowed
    MANUAL BMC OK Not allowed
    MANUAL HOST Not allowed OK
    MANUAL SPLIT OK OK
    MANUAL BOTH OK OK

    If user would like to set Host time that need to set Owner to SPLIT in NTP mode or set Owner to HOST/SPLIT/BOTH in MANUAL mode. However, change Host time will not effect BMC time and journal event log timestamp.

    Set Time Owner to Split

    ### With busctl on BMC
busctl set-property xyz.openbmc_project.Settings \
   /xyz/openbmc_project/time/owner xyz.openbmc_project.Time.Owner \
   TimeOwner s xyz.openbmc_project.Time.Owner.Owners.Split

### With REST API on remote host
curl -c cjar -b cjar -k -H "Content-Type: application/json" -X  PUT  -d \
   '{"data": "xyz.openbmc_project.Time.Owner.Owners.Split" }' \
   https://${BMC_IP}/xyz/openbmc_project/time/owner/attr/TimeOwner

    TimeZone
    According OpenBMC current design that only support UTC TimeZone now, we can use below command to get current support TimeZone on BMC

    timedatectl list-timezones

    Maintainer

  • Tim Lee

Sensor

phosphor-hwmon daemon will periodically check the sensor reading to see if it exceeds lower bound or upper bound . If alarm condition is hit, the phosphor-sel-logger handles all sensor events to add new IPMI SEL records to the journal, phosphor-host-ipmid will convert the journal SEL records to IPMI SEL record format and reply to host.

Source URL

How to use

  • Configure sensor

    • Add Sensor Configuration File

      Each sensor temperature, adc, fan, peci and power has a hwmon config file and ipmi sdr config file that defines the sensor name and its warning or critical thresholds. These files are located under recipes-phosphor/sensors/phosphor-hwmon%/obmc/hwmon/apb/ and recipes-phosphor/configuration/olympus-nuvoton-yaml-config/olympus-nuvoton-ipmi-sensors.yaml.

      Below is hwmon config for a LM75 sensor on BMC. The sensor type is temperature and its name is bmc_card. It has warning and critical thresholds for upper and lower bound.

      LABEL_temp1 = "bmc_card"
WARNHI_temp1 = "110000"
WARNLO_temp1 = "5000"
CRITHI_temp1 = "115000"
CRITLO_temp1 = "0"

      Below is ipmi sdr config for a LM75 sensor on BMC.

      1:
  entityID: 0x07
  entityInstance: 1
  sensorType: 0x01
  path: /xyz/openbmc_project/sensors/temperature/bmc_card
  sensorReadingType: 0x01
  multiplierM: 1
  offsetB: 0
  bExp: 0
  rExp: 0
  scale: -3
  unit: xyz.openbmc_project.Sensor.Value.Unit.DegreesC
  mutability: Mutability::Write|Mutability::Read
  serviceInterface: org.freedesktop.DBus.Properties
  readingType: readingData
  sensorNamePattern: nameLeaf
  interfaces:
    xyz.openbmc_project.Sensor.Value:
      Value:
        Offsets:
          0xFF:
            type: int64_t

  • Monitor sensor and events

    • Using WebUI

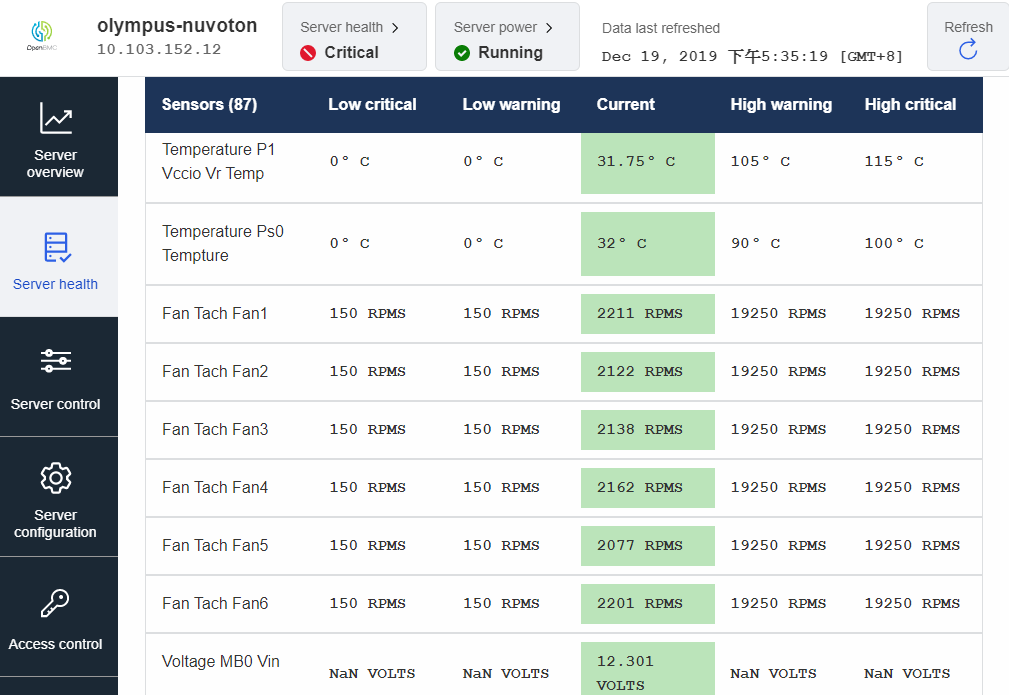

      In Sensors page of WebUI, the sensors reading will show as below.

      In System log page of WebUI, the sensors event will show as below.

    • Using IPMI

      Use IPMI utilities like ipmitool to send command for getting SDR records.

      $ sudo ipmitool sdr elist
  bmc_card         | 01h | ok  |  7.1 | 36 degrees C
  inlet            | 02h | ok  |  7.2 | 27 degrees C
  outlet           | 03h | ok  |  7.3 | 27 degrees C
  MB0_Temp         | 04h | ok  |  7.4 | 23 degrees C
  MB0_Vin          | 05h | ok  |  7.5 | 12.32 Volts
  MB0_Vout         | 06h | ok  |  7.6 | 12.32 Volts
  MB0_Pin          | 07h | ok  |  7.7 | 4 Watts
  MB0_Iout         | 08h | ok  |  7.8 | 0.09 Amps
  p0_dimm_vr0_temp | 09h | ok  | 32.1 | 0 degrees C
  p0_dimm_vr1_temp | 0Ah | ok  | 32.2 | 0 degrees C
  p1_dimm_vr0_temp | 0Bh | ok  | 32.3 | 0 degrees C
  p1_dimm_vr1_temp | 0Ch | ok  | 32.4 | 0 degrees C
  p0_dimm_vr0_volt | 0Dh | ok  | 32.5 | 12.40 Volts
  p0_dimm_vr1_volt | 0Eh | ok  | 32.6 | 12.40 Volts
  p1_dimm_vr0_volt | 0Fh | ok  | 32.7 | 12.40 Volts
  p1_dimm_vr1_volt | 10h | ok  | 32.8 | 12.40 Volts

      Use IPMI utilities like ipmitool to send command for getting SEL records.

      $ sudo ipmitool sel list

   1 | 10/04/2018 | 07:08:54 | Temperature #0x03 | Lower Critical going low  | Asserted
   2 | 10/04/2018 | 07:10:39 | Temperature #0x03 | Lower Critical going low  | Asserted
   3 | 10/04/2018 | 07:28:04 | Temperature #0x03 | Upper Critical going high | Asserted
   4 | 10/04/2018 | 07:28:11 | Temperature #0x03 | Upper Critical going high | Asserted
   5 | 10/04/2018 | 07:28:13 | Temperature #0x03 | Upper Critical going high | Asserted
   6 | 10/04/2018 | 07:46:34 | Temperature #0x03 | Upper Critical going high | Asserted
   7 | 10/04/2018 | 07:46:38 | Temperature #0x03 | Upper Critical going high | Asserted
   8 | 10/04/2018 | 07:46:43 | Temperature #0x03 | Upper Critical going high | Asserted
   9 | 10/04/2018 | 07:46:59 | Temperature #0x03 | Upper Critical going high | Asserted
   a | 10/04/2018 | 07:47:24 | Temperature #0x03 | Upper Critical going high | Asserted
   b | 10/04/2018 | 07:47:29 | Temperature #0x03 | Upper Critical going high | Asserted
   c | 10/04/2018 | 07:47:42 | Temperature #0x03 | Upper Critical going high | Asserted
   d | 10/04/2018 | 07:48:37 | Temperature #0x03 | Upper Critical going high | Asserted
   e | 10/04/2018 | 07:48:39 | Temperature #0x03 | Upper Critical going high | Asserted
   f | 10/04/2018 | 07:48:53 | Temperature #0x03 | Upper Critical going high | Asserted
  10 | 10/04/2018 | 09:19:11 | Temperature #0x03 | Lower Critical going low  | Asserted
  11 | 10/04/2018 | 09:20:22 | Temperature #0x03 | Lower Critical going low  | Asserted
  12 | 10/04/2018 | 09:20:24 | Temperature #0x03 | Lower Critical going low  | Asserted
  13 | 10/04/2018 | 09:33:24 | Temperature #0x03 | Upper Critical going high | Asserted
  14 | 10/04/2018 | 09:33:31 | Temperature #0x03 | Upper Critical going high | Asserted

Maintainer

  • Stanley Chu

LED

Turning on ServerLED via WebUI will make identify leds on BMC start blinking, and heartbeat will start blinkling after BMC booted.

Source URL

How to use

  • Add EnclosureIdentify in LED config file

    BmcBooted:
  heartbeat:
      Action: 'Blink'
      DutyOn: 50
      Period: 1000
EnclosureIdentify:
  identify:
      Action: 'Blink'
      DutyOn: 50
      Period: 1000

  • Modify BSP layer config to select NPCM750 LED config file

    PREFERRED_PROVIDER_virtual/phosphor-led-manager-config-native = "npcm750-led-manager-config-native"

Maintainer

  • Stanley Chu

BIOS POST Code

In NPCM750, we support a FIFO for monitoring BIOS POST Code. Typically, this feature is used by the BMC to "watch" host boot progress via port 0x80 writes made by the BIOS during the boot process.

Source URL

This is a patch for enabling BIOS POST Code feature in phosphor-host-postd on Nuvoton's NPCM750.

How to use

  • Execute BIOS POST Code test program by command in BMC

    snooper

    This command will trigger snooper test program to record BIOS POST Code from port 0x80 of host and save to file with timestamp filename in BMC for each host power on or reset.

    Saved filename format example: 2019_4_30_11_52_35_ON

  • Server Power on

    Press Power on button from Server control ->Server power operations of WebUI. During server power on, snooper test program will print received BIOS POST Code on screen and record to file in BMC at the same time.

    Snooper test program print received BIOS POST Code example: recv: 0x3 recv: 0x2 recv: 0x7

Maintainer

  • Tim Lee

FRU

Field Replaceable Unit. The FRU Information is used to primarily to provide “inventory” information about the boards that the FRU Information Device is located on. In NPCM750, we connect EEPROM component as FRU Information Device to support this feature. Typically, this feature is used by the BMC to "monitor" host server health about H/W copmonents status.

Source URL

This is a patch for enabling FRU feature in phosphor-impi-fru on Nuvoton's NPCM750.

How to use

  • Modify DTS settings of EEPROM for FRU. For example about DTS nuvoton-npcm750-evb.dts:

    i2c4: i2c@84000 {
    #address-cells = <1>;
    #size-cells = <0>;
    bus-frequency = <100000>;
    status = "okay";
    eeprom@54 {
        compatible = "atmel,24c64";
        reg = <0x54>;
    };
};

    According DTS modification, you also need to remember modify your EEPROM file description content about SYSFS_PATH and FRUID. Below is example for our EEPROM file description motherboard:

    SYSFS_PATH=/sys/bus/i2c/devices/3-0050/eeprom
FRUID=1

    SYSFS_PATH is the path according your DTS setting and FRUID is arbitrary number but need to match Fruid in config.yaml file. Below is example for when Fruid set as 1:

    1: #Fruid
  /system/chassis/motherboard:
    entityID: 7
    entityInstance: 1
    interfaces:
      xyz.openbmc_project.Inventory.Decorator.Asset:
        BuildDate:
          IPMIFruProperty: Mfg Date
          IPMIFruSection: Board
        PartNumber:
          IPMIFruProperty: Part Number
          IPMIFruSection: Board
        Manufacturer:
          IPMIFruProperty: Manufacturer
          IPMIFruSection: Board
        SerialNumber:
          IPMIFruProperty: Serial Number
          IPMIFruSection: Board
      xyz.openbmc_project.Inventory.Item:
        PrettyName:
          IPMIFruProperty: Name
          IPMIFruSection: Board
      xyz.openbmc_project.Inventory.Decorator.Revision:
        Version:
          IPMIFruProperty: FRU File ID
          IPMIFruSection: Board

  • Server health

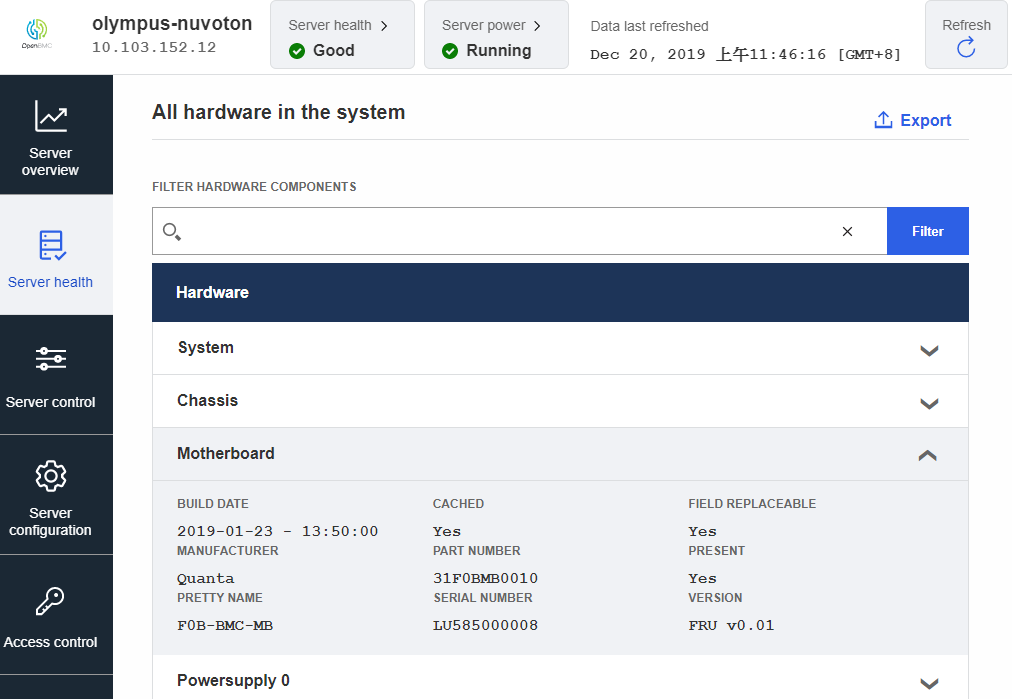

    Select Server health -> Hardware status on Web-UI will show FRU Board Info/Chassis Info/Product Info area.

Maintainer

  • Tim Lee

Fan PID Control

In NPCM750, we have two PWM modules and support eight PWM signals to control fans for dynamic adjustment according temperature variation.

Source URL

How to use

In order to automatically apply accurate and responsive correction to a fan control function, we use the swampd to handle output PWM signal. For enable this daemon, basically we need configuring the swampd configuration file and deploy a system service for start this daemon as below steps.

NOTICE: In current solution, we only use stepwise mechanism to control fans. But the swampd also can controls fan with PID by tuning parameters according to customer platform.

  • The swampd(PID control daemon) is a Margin-based daemon running within the OpenBMC environment. It uses a well-defined configuration file to control the temperature of the tray components to keep them within operating conditions.

    Here is a configuraion example shows how to using one PWM control more than one fans on system.

    "sensors" : [
    {
        "name": "fan1",
        "type": "fan",
        "readPath": "/xyz/openbmc_project/sensors/fan_tach/fan1",
        "writePath": "/sys/devices/platform/ahb/ahb:apb/f0103000.pwm-fan-controller/hwmon/**/pwm1",
        "min": 0,
        "max": 255
    },
    {
        "name": "fan2",
        "type": "fan",
        "readPath": "/xyz/openbmc_project/sensors/fan_tach/fan2",
        "writePath": "/sys/devices/platform/ahb/ahb:apb/f0103000.pwm-fan-controller/hwmon/**/pwm1",
        "min": 0,
        "max": 255
    },
    {
        "name": "Core_0_CPU0",
        "type": "temp",
        "readPath": "/xyz/openbmc_project/sensors/temperature/Core_0_CPU0",
        "writePath": "",
        "min": 0,
        "max": 0,
        "timeout": 0
    },
],
"zones" : [
    {
        "id": 0,
        "minThermalOutput": 0.0,
        "failsafePercent": 100.0,
        "pids": [
            {
                "name": "fan1",
                "type": "fan",
                "inputs": ["fan1"],
                "setpoint": 40.0,
                "pid": {
                    "samplePeriod": 1.0,
                    "proportionalCoeff": 0.0,
                    "integralCoeff": 0.0,
                    "feedFwdOffsetCoeff": 0.0,
                    "feedFwdGainCoeff": 1.0,
                    "integralLimit_min": 0.0,
                    "integralLimit_max": 0.0,
                    "outLim_min": 3.0,
                    "outLim_max": 100.0,
                    "slewNeg": 0.0,
                    "slewPos": 0.0
                }
            },
            {
                "name": "Core_0_CPU0",
                "type": "stepwise",
                "inputs": ["Core_0_CPU0"],
                "setpoint": 30.0,
                "pid": {
                    "samplePeriod": 1.0,
                    "positiveHysteresis": 0.0,
                    "negativeHysteresis": 0.0,
                    "isCeiling": false,
                    "reading": {
                        "0": 25,
                        "1": 26,
                        "2": 27,
                        "3": 28,
                        "4": 29,
                        "5": 30,
                        "6": 31,
                        "7": 32,
                        "8": 33,
                        "9": 34,
                        ...
                    },
                    "output": {
                        "0": 10,
                        "1": 10,
                        "2": 10,
                        "3": 10,
                        "4": 10,
                        "5": 10,
                        "6": 20,
                        "7": 30,
                        "8": 40,
                        "9": 50,
                        ...
                    }
                },
            },
        ],
    },
]

    The PID README provide more detail about the meaning for each parameter.

    Roughly speaking, there are two main section in configuration file: sensor and zones. Sensors defined the all component which are involved PID like temperature sensors, or fans. Zones defined the mechanism how the swampd control each fans by setting parameters.

    The most important in sensors section is the settings of readPath and writePath. Sensors like temperature sensor or margin sensor must only set readPath, and fill up empty string to writePath. Fans could set the D-Bus path to readPath, also set the pwm system path to writePath. More detail about readPath and writePath please refer README that mentioned above.

    There are four PID controller types user can use: fan, temp, margin, and stepwise in zones. User can tune the PID parameters following the tuning README.

    In above example case, the fan PID controller has a lot of PID parameters. And we only use the stepwise controller to control whole zone, so the PID parameters in fan controller like integralCoeff or outLim_max would not work. And the parameter inputs for stepwise controller must be thermal sensor. Please note the parameter setpoint is no meaning for type fan and stepwise currently, and cannot be left out.

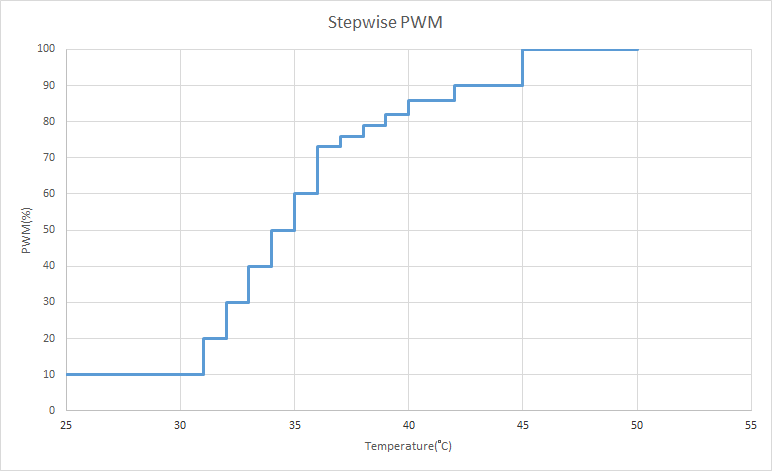

    If user want to control whole zone by stepwise controller like example configuration, the key point is set reading and output. The stepwise PID use the mapping of reading and output value instead of set RPM setpoint. The reading and output value should be a pair, and user can set 20 pairs in maximum, one more pairs at least. And the stepwise will return output setpoint if temperature is larger than reading value. For example, assume here are pairs of stepwise reading and output:

    {
  "reading": {25, 26, 27},
  "output": {10, 20, 30}
}

    If the temperature reading is 25.5°C, the return value will be 10. And if the reading value is 26.5°C, the stepwise controller will set 20% RPM to fan(s).

  • OpenBMC will run swampd through phosphor-pid-control.service that controls the fans by pre-defined zones. Here is a example service.

    [Service]
Type=simple
ExecStart=/usr/bin/swampd
Restart=always
RestartSec=5
StartLimitInterval=0
ExecStopPost=/usr/bin/fan-default-speed.sh
    • ExecStopPost that means an additional commands that are executed after the service is stopped.

Maintainer

  • Tim Lee

IPMI / DCMI

SOL IPMI

The Serial over LAN (SoL) via IPMI redirects the output of the server’s serial port to a command/terminal window on your workstation.

The user uses the ipmi tool like ipmiutil to interact with SOL via IPMI. Here the ipmiutil is used as an example.

The patch integrates phosphor-net-ipmid into Nuvoton's NPCM750 solution for OpenBMC.

Source URL

How to use

  1. Download the ipmiutil according to the host OS in your workstation.

    Here it's assumed that the host OS is Windows 10 and ipmiutil for Windows is downloaded and used accordingly.

  2. Run SOL:

    • Extract or install the ipmiutil package to a folder in your workstation in advance.
    • Launch a command window and navigate to that folder.
    • Input the following command in the command window.
      ipmiutil sol -N 192.168.0.2 -U root -P 0penBmc -J 3 -V 4 -a
    • (Optional) Configure the Properties of the command window to see the entire output of SOL.

      Screen Buffer Size Width: 200 Screen Buffer Size Height: 400 Window Size Width: 100 Window Size Height: 40

  3. End SOL session:

    • Press the "~" key (using the shift key + "`" key) and "." key at the same time in the command window.
    • Input the following command in the command window.
      ipmiutil sol -N 192.168.0.2 -U root -P 0penBmc -J 3 -V 4 -d

Maintainer

  • Tyrone Ting
  • Stanley Chu

Host Power Budget Control

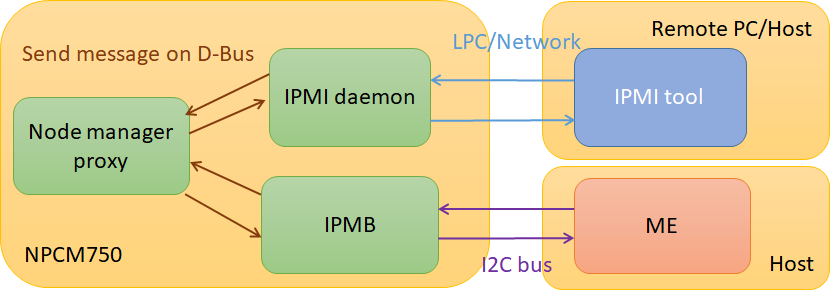

Host Power Budget Control provides a mechanism for implement IPMI DCMI messages by using D-Bus and IPMB.

Please refer to IPMI Website for details about Message Bridging.

IPMI daemon would set or get D-Bus property to/from path like: /xyz/openbmc_project/control/host0/power_cap when get DCMI command from IPMI tool via network or LPC. Phosphor-node-manager-proxy will handle the property change and present the property value. Once the phosphor-node-manager-proxy property changed, it will prepare IPMB package data and call D-Bus method "sendRequest" to D-Bus path: /xyz/openbmc_project/Ipmi/Channel/Ipmb. Finally, IPMB gets the request and constructs I2C command from the request, then sends the I2C command to ME(Intel Management Engine) for getting information which controlled by ME.

The patch integrates the ipmid, phosphor-node-manager-proxy and ipmbbridge projects.

Source URL

How to use

  1. Configure ipmb-channel.json as below sample. Check schematic to fill up BMC and ME I2C address, and each sys path.

    "channels": [
  {
    "type": "me",
    "master-path": "/dev/i2c-5",
    "slave-path": "/sys/bus/i2c/devices/5-1010/slave-mqueue",
    "bmc-addr": 32,
    "remote-addr": 44
  }
]

  2. Deploy phosphor-node-manager-proxy from Intel-BMC project node-manager, because the package still not merge in OpenBMC project. And modify the interface define if need. The patch 0001-change-the-value-number-from-int64-to-double.patch for node manager is change the property type that make bmcweb can get the sensor value on web UI.

  3. Install the ipmitool in host OS, here using Ubuntu 18.04 as example.

    • Using apt command install ipmitool.
      sudo apt install ipmitool

  4. Test power budget control.

    • Send DCMI commnad via LPC

      sudo ipmitool dcmi get_mc_id_string

      This command would return result as below:

        Get Management Controller Indentifier String: olympus-nuvoton

    • Send DCMI command via network

      sudo ipmitool -I lanplus -H 10.103.152.12 -U root -P 0penBmc dcmi power get_limit

      The result will show like below if everything is OK.

      Current Limit State: Power Limit Active
Exception actions:   Hard Power Off & Log Event to SEL
Power Limit:         500 Watts
Correction time:     0 milliseconds
Sampling period:     0 seconds

Maintainer

  • Tyrone Ting
  • Stanley Chu

LDAP for User Management

The Lightweight Directory Access Protocol (LDAP) is an open, vendor-neutral, industry standard application protocol for accessing and maintaining distributed directory information services over an Internet Protocol (IP) network.

LDAP is specified in a series of Internet Engineering Task Force (IETF) Standard Track publications called Request for Comments (RFCs), using the description language ASN.1.

A common use of LDAP is to provide a central place to store usernames and passwords. This allows many different applications and services to connect to the LDAP server to validate users.

Source URL

LDAP Server Setup

How to use

  1. The user is expected to know how to follow the instructions in the section Setting up your OpenBMC project in Nuvoton-Israel/openbmc to build and program an OpenBMC image into NPCM750 platforms.

    Prepare a PC which builds OpenBMC. (called the build machine hereafter)
    The user is also expected to have knowledge of LDAP and its operations.

  2. Install Ubuntu 16.04 64 bit (called Ubuntu hereafter) on a PC which is used as a LDAP server and log in it with an account with root privilege.

  3. Set up the LDAP server and its configurations in Ubuntu.

    • Open a terminal and input the following commands to install required software packages in advance.

      sudo apt-get install git
sudo apt-get install libsasl2-dev
sudo apt-get install g++
wget http://download.oracle.com/berkeley-db/db-4.8.30.zip
unzip db-4.8.30.zip
cd db-4.8.30
cd build_unix/
../dist/configure --prefix=/usr/local --enable-cxxmake
sudo make install

    • Install OpenSSL

      • Download openssl-1.0.2j.tar.gz.
      • Extract openssl-1.0.2j.tar.gz.
      • Open a terminal, navigate to the extracted folder and input the following commands to install OpenSSL.
        ./config shared --prefix=/usr/local
make
make test
sudo make install

    • Install OpenLDAP

      • Download OpenLDAP from https://github.com/openldap/openldap

        git clone https://github.com/openldap/openldap

      • Open a terminal and input the following command to build and install OpenLDAP.

        ./configure CPPFLAGS="-I/usr/local/include -I/usr/local/include/openssl" LDFLAGS="-L/usr/local/lib -Wl,-rpath,/usr/local/lib" --prefix=/usr/local  --enable-syncprov=yes --enable-crypt=yes --enable-accesslog=yes --enable-auditlog=yes --enable-constraint=yes --enable-ppolicy=yes --enable-modules --enable-mdb --enable-spasswd --enable-debug=yes --enable-syslog --enable-slapd --enable-cleartext --enable-monitor --enable-overlays -with-threads --enable-rewrite --enable-syncprov=yes --with-tls=openssl

        The description above is one line only.

        make depend
make
sudo make install

    • Execute LDAP server

      • Open a terminal and input the following command.

        sudo /usr/local/libexec/slapd -d 1 -h 'ldaps:/// ldap:/// ldapi:///'

        To stop LDAP server execution, press Ctrl key and C key at the same time in the terminal.
        Now please stop the LDAP server execution.

    • Generate security configurations for the LDAP server running in Ubuntu.

      Here a two-stage signing process is applied.
      You could also use the self-signed CA and cert for the configuration if your company uses them.

      • Generate the CA key and cert. Open a terminal and input the following commands.

        openssl genrsa -out ca_server.key 2048
openssl req -x509 -new -key ca_server.key -days 3650 -out ca_server.pem -subj '/C=OO/ST=OO/L=OO/O= OO/OU= OO /CN= OO'

        Define these OO for the arguments C, ST, etc. according to your configurations.
        Please refer to the following link for explanations of the arguments C, ST, etc.
        https://www.shellhacks.com/create-csr-openssl-without-prompt-non-interactive/.

      • Generate the LDAP key and CSR. In the same terminal, input the following commands.

        openssl genrsa -out ldap_server.key 2048
openssl req -new -key ldap_server.key -out ldap_server.csr -subj '/C=OO /ST=OO /L=OO/O=OO/OU=OO/CN=ldap.example.com'

        Define these OO for the arguments C, ST, etc. according to your configurations.
        Note that the field CN in ldap_server.csr must be set to the fully qualified domain name of the LDAP server.

      • Generate ldap cert signed with CA cert. In the same terminal, input the following command.

        openssl x509 -req -days 365 -CA ca_server.pem -CAkey ca_server.key -CAcreateserial -CAserial serial -in ldap_server.csr -out ldap_server.pem

    • Store and specify locations of keys and certs.

      • Edit /usr/local/etc/openldap/slapd.conf in Ubuntu with root privilege to update fields as examples shown below.

        TLSCACertificateFile /etc/ldap/ca_certs.pem
        TLSCertificateFile /etc/ssl/certs/ldap_server.pem
        TLSCertificateKeyFile /etc/ssl/private/ldap_server.key
        TLSCACertificatePath /etc/ldap

      • Copy ca_certs.pem, ldap_server.pem and ldap_server.key into locations specified above with root privilege.

    • Add LDAP schema and LDIF (LDAP Data Interchange Format).

      • Download user_exp.schema and save it at /usr/local/etc/openldap/schema with root privilege in Ubuntu.

      • Modify /usr/local/etc/openldap/slapd.conf in Ubuntu with root privilege to specify the schema just saved.

        include /usr/local/etc/openldap/schema/user_exp.schema

      • Download bdn.ldif, ap_group.ldif, bmc.ldif, group.ldif, people.ldif and privRole.ldif to a temporary folder in Ubuntu.

      • Open a terminal, navigate to the temporary folder for storing LDIF and input the following commands to add these LDIF into the LDAD server in Ubuntu.

        sudo slapadd -l ./bdn.ldif
sudo slapadd -l ./ap_group.ldif
sudo slapadd -l ./bmc.ldif
sudo slapadd -l ./group.ldif
sudo slapadd -l ./people.ldif
sudo slapadd -l ./privRole.ldif

    • Execute LDAP server.

      • Open a terminal and input the following command in the terminal.
      sudo /usr/local/libexec/slapd -d 1 -h 'ldaps:/// ldap:/// ldapi:///'

  4. Setup LDAP client configuration on BMC.

    • Open a terminal in the build machine and navigate to the directory which contains OpenBMC source codes. The directory is called OPENBMCDIR hereafter.

    • Update OPENBMCDIR/meta-quanta/meta-runbmc-nuvoton/recipes-support/nss-pam-ldapd/files/nslcd.conf. (optional)

      • The IP address for the LDAP server in Ubuntu is configured as 10.103.152.11. Modify the field uri ldap in nslcd.conf according to your network configuration.

        uri ldap://10.103.152.11/

      • The modification above is done in OpenBmc build time. If you would like to modify uri in OpenBmc run time, follow the instructions below after logging into BMC in the console program (like Tera Term) with the root account (root/0penBmc).

        The console program is used to display a debug console provided by BMC.

        vi /etc/nslcd.conf

        Locate the line uri ldap://10.103.152.11/. Modify the field uri ldap according to your network configuration.

        systemctl stop nslcd
systemctl start nslcd

    • In the build machine, open a terminal window (build environment is configured in advance and the working directory is at OPENBMCDIR/build) to input the following commands to build the OpenBMC image.

      bitbake -C fetch nss-pam-ldapd
bitbake -C fetch dropbear
bitbake -C fetch libpam
bitbake -C fetch bmcweb
bitbake -C fetch phosphor-ipmi-net
bitbake -C fetch openldap
bitbake obmc-phosphor-image

    • Program the updated image into BMC.

  5. Test LDAP server.

    • Connect BMC and LDAP server in same local network and power on it.

    • Log in BMC from the console program (like Tera Term) with the root account (root/0penBmc).

      The console program is used to display a debug console provided by BMC.

    • The IP address for the LDAP server is 192.168.0.101 for now.

    • Set up IP addresses for BMC and LDAP server so that they can ping each other.

      • For example, set BMC's IP address to 192.168.0.2. Input the following command in the console program.

        ifconfig eth2 192.168.0.2

        Please replace 192.168.0.2 with your IP configuration for BMC.

    • Execute the following command in the console program.

      ldapsearch -ZZ -h 192.168.0.101 -D "cn=admin,dc=ldap,dc=example,dc=com" -b "dc=ldap,dc=example,dc=com" -w secret

      Please replace 192.168.0.101 with your IP configuration for LDAP server. The ldapsearch example is to display all the data stored in the LDAP server using a TLS connection.

    • You could use the account user1 stored in the LDAP server to log in WebUI running on BMC.

      • Some descriptions about the LDIF used by the LDAP server and authentication process are provided here. Please refer to the six snapshots in the following description.

        To login an account, the authentication logic has to check the following criteria. bmc-uid: It stands for the BMC machine that the account is used to login. The BMC machines are grouped by DN ou=ap_group,dc=ldap,dc=example,dc=com. One BMC machine can be in multiple groups at the same time. (see ap_group below)

        ap_group: Applications like web server, email, ftp and so on are deployed on the servers attched by BMC machines. Therefore, grouping by applications is taken into the authentication process. The authentication refuses an account to log in some BMC machine if that machine is not deployed under the certain ap_group

        people: It contains the account information (login/privileges) stored in the LDAP server. An account can join multiple ap_group simutaneously.

        user-login-disabled: While this attribute's value is 1, it is not allowed to login with the account's membership of the specific ap_group. user-login-interface: It's used as a channel via that the account logins for an ap_group. For example, web stands for logging in a BMC machine via WebUI. If web does not exist in any user-login-interface attributes an account owns under a certain ap_group, it means that the user cannot use this account to login as a member of the preferred ap_group via WebUI.

      • Use an LDAP tool to modify the field macAddress of the DN bmc-uid=bmc1,ou=bmc,dc=ldap,dc=example,dc=com stored in the LDAP server.

        The mac address modification is for the ethernet module on BMC you currently test with.

      • To get the mac address desired, input the following command in the console program.

        ifconfig eth0

        Locate the keyword HWaddr displayed in the console program. Copy the value next to HWaddr to override the value of the field macAddress of the DN bmc-uid=bmc1,ou=bmc,dc=ldap,dc=example,dc=com.

      • Launch a browser and navigate to the BMC's IP address.

        Bypass the secure warning and continue to the website.

      • Use user1/123 to log in WebUI.

        user1 is the login ID. 123 is the login password. The bmc-uid for the BMC machine used for this test is bmc1. According to the LDIF provided, the BMC machine bmc1 is deployed under the ap_group email and the the BMC machine bmc2 is deployed under ap_group webserver. Also one can tell from the snapshots, user1 and user2 have different user-login-interface settings for the ap_group email and ap_group webserver respectively. User1 is able to log on bmc1 via WebUI since the following conditions are met: the BMC machine bmc1 is deployed under ap_group email.; user1 is a member of the ap_group email.; user1 has an user-login-interface setting as web for that group and value of user1's user-login-disabled attribute is not set. Although user2 is also a member of the ap_group email, it does not have an user-login-interface setting as web for that group. Under such conditions, user2 is not allowed to log on bmc1. User2 does have an user-login-interface setting as web for the ap_group webserver but bmc1 is not deployed under the ap_group webserver. The description above explains why user1 is used for this test.

    • Password modification is also available to LDAP accounts via WebUI.

      • Log in WebUI using user1/123 as mentioned in previous section.

      • Navigate to Access control menu item on the left panel and select it.

      • A sub menu item Local users pops up and select it.

      • Modify the password value for user1 by selecting the icon at just the right side of the text area "Account status".

      • Input the same new password twice.

        The input locations are right below USER PASSWORD and CONFIRM USER PASSWORD text area.

      • Press the Save button.

        A message Success! User has been updated successfully. is expected to show then.

      • Log out WebUI and log in again with the new password for user1.

    • Log in BMC via SSH using an LDAP account.

      • Make sure that configurations stated in Step 5 for BMC and LDAP server are set accordingly and ping between LDAP server and BMC is okay.

      • Install ssh in Ubuntu with root privilege if ssh client is not available. Open a terminal and input the following command.

        sudo apt-get install ssh

      • Open a terminal in Ubuntu to log in BMC using the LDAP account user1 and its password via SSH. Input the following command in the terminal.

        ssh user1@192.168.0.2

        Please replace 192.168.0.2 with your IP configuration for BMC. It requires the account to be in the priv-admin group in the LDAP group database for accessing SSH.
        Please refer to group.ldif for more details.

    • Execute ipmi commands using an LDAP account.

      • Make sure that configurations stated in Step 5 for BMC and LDAP server are set accordingly and ping between LDAP server and BMC is okay.

      • Install ipmitool in Ubuntu with root privilege for the demonstration purpose. Open a terminal and input the following command.

        sudo apt-get install ipmitool

      • Open a terminal in Ubuntu to execute ipmi commands to BMC using the LDAP account user2 and its password 123 via ipmitool. Input the following command in the terminal.

        sudo ipmitool -H 192.168.0.2 -U user2 -P 123 -I lanplus user list

        Please replace 192.168.0.2 with your IP configuration for BMC. Only limited ipmi commands are supported.

Maintainer

  • Tyrone Ting

JTAG Master

JTAG master is implemented on BMC to facilitate debugging host CPU or programming CPLD device.

Source URL

ASD

The Intel® At-Scale Debug feature allows for using any host system to run the Debug tool stack while connecting to the target system across the network. The target system must have a BMC which has physical connectivity to the JTAG pins as a minimum requirement of functionality.

How to use

Here uses the RunBMC Olympus server as example.

  1. switch JPC1 jumper on host to 2-3.
  2. configure GPIO40(BMC_XDP_JTAG_SEL_N) to connect BMC JTAG to Host CPU
    echo 40 > /sys/class/gpio/export
echo 0 > /sys/class/gpio/gpio40/value
  3. configure BMC_TCK_MUX_SEL pin to CPU TCK
    echo 22 > /sys/class/gpio/export
echo 1 > /sys/class/gpio/gpio22/value
  4. Run ASD daemon on BMC
    asd -u -n eth1 --log-level=warning -p 5123
  5. Launch CScripts on debug host
    Assume CScripts source folder = $CS, OpenIPC source folder = $OIPC
Edit $OIPC/openipc/Config/SKX/SKX_ASD_RC-Pins.xml
- Change ip address to BMC ip address
Edit $OIPC/openipc/Config/OpenIpcConfig.xml
- Change DefaultIpcConfig tag as <DefaultIpcConfig Name="SKX_ASD_RC-Pins"/>
export IPC_PATH=$OIPC/openipc/Bin
export LD_LIBRARY_PATH=$IPC_PATH
Go to $CS/cscripts, execute "python startCscripts.py -a ipc"
  6. Execute OpenIPC idcode operation in CScripts command prompt. It will show the TAP device's idcode.
    >>> import ipccli
>>> ipc = ipccli.baseaccess()
>>> ipc.idcode(0)

CPLD Programming

The motherboard on server have a CPLD device that can be upgraded firmware on it. BMC can load svf file to program CPLD via JTAG.

How to use

run loadsvf on Runbmc to program CPLD. Specify the svf file name with -s.

loadsvf -d /dev/jtag0 -s firmware.svf

Maintainer

  • Stanley Chu

System Event Policy

phosphor-dbus-monitor service can watch on specific dbus objects/properties and perform predefined event callbacks when the property state has changed or meets the condition defined in config file.

Source URL

Event Callbacks

The event callbacks can be the following actions. Logging to journal or elog, calling d-bus methods, or sending snmp traps. Here is an example that log to journal and send d-bus message to shutdown host when the specific temperature sensor reaches the critical high threshold.

SNMP trap

How to use

  1. Install snmp trap receiver on the management server. Refer to the link for the installation.
    • Copy BMC notification MIB to /usr/share/snmp/mibs.
    • Run snmptrapd with -m option to load custom MIB
    snmptrapd -m OPENBMC-NOTIFICATION-MIB -Lf /var/log/snmptrap.log -f
  2. Specify snmp manager ip/port in Openbmc WebUI
     Server configuration
  -> SNMP settings
    -> Add Managers
       -> enter the snmp manger ip and port(default is 162)
  3. Check snmp trap log in snmp manager.
    • /var/log/snmptrap.log
    • the OIDs in log file will be translated to human readable string defined in MIB
    • Example:
    TRAP2, SNMP v2c, community publicDU Attribute/Value Pair Array:
SNMPv2-SMI::snmpModules.1.1.4.1.0 = OID: OPENBMC-NOTIFICATION-MIB::obmcErrorNotification
OPENBMC-NOTIFICATION-MIB::obmcErrorID = Gauge32: 135
OPENBMC-NOTIFICATION-MIB::obmcErrorTimestamp = Opaque: UInt64: 780329535445925888
OPENBMC-NOTIFICATION-MIB::obmcErrorSeverity = INTEGER: 3
OPENBMC-NOTIFICATION-MIB::obmcErrorMessage = STRING:   "xyz.openbmc_project.Sensor.Threshold.Error.WarningLow"

Maintainer

  • Stanley Chu

In-Band Firmware Update

This is a secure flash update mechanism to update HOST/BMC firmware via LPC/PCI.

Source URL

HOST Tool

The host-tool depends on ipmi-blob-tool and pciutils.

Building pciutils

Check out the pciutils source.

Then run these commands in the source directory.

make SHARED=yes
make SHARED=yes install
make install-lib

Building ipmi-blob-tool

Check out the ipmi-blob-tool source. Then run these commands in the source directory.

./bootstrap.sh
./configure
make
make install

Building burn_my_bmc (the host-tool)

Check out the phosphor-ipmi-flash source. Then run these commands in the source directory. If you choose "enable-nuvoton-p2a-vga", then the tool will support LPC and PCI-VGA. If you choose "enable-nuvoton-p2a-mbox", then the tool will support LPC and PCI-MailBox

./bootstrap.sh
./configure --disable-build-bmc-blob-handler --enable-nuvoton-p2a-vga
make
make install

How to use

  1. If you want to do firmware update over LPC, then you need to check the memory address which BIOS allocates for LPC. You could use "ioport" tool and following commands to get the address.

    sudo outb 0x4e 0x07
sudo outb 0x4f 0x0f

# Host address a7-a0
sudo outb 0x4e 0xF4
sudo inb 0x4f

# Host address a15-a8
sudo outb 0x4e 0xF5
sudo inb 0x4f

# Host address a23-a16
sudo outb 0x4e 0xF6
sudo inb 0x4f

# Host address a32-a24
sudo outb 0x4e 0xF7
sudo inb 0x4f

# shm active?
sudo outb 0x4e 0x30
sudo inb 0x4f

  2. Here is an example for upadting over LPC, and --length is fixed.

    sudo ./burn_my_bmc --command update --interface ipmilpc --image image-bmc --sig image-bmc.sig --type image --address 0x817e0000 --length 0x1000

  3. Here is an example for upadting over PCI(both VGA and MailBox)and --type is fixed

    sudo ./burn_my_bmc --command update --interface ipmipci --image image-bmc --sig image-bmc.sig --type image

IPMI Library

This is an OpenBMC IPMI Library (Handler) for In-Band Firmware Update.

How to use

  1. You need to enable the way you want to transfer data from host to BMC

    nuvoton-lpc
enable-nuvoton-p2a-mbox
enable-nuvoton-p2a-vga

  2. select the corresponding address for IPMI_FLASH_BMC_ADDRESS_nuvoton

    0x7F400000
0xF0848000
0xc0008000

Maintainer

  • Medad CChien

Features In Progressing

  • Improve IPMI
  • Improve Redfish
  • System logs

Features Planned

  • PLDM
  • NCSI
  • Improve Power contorl
  • Intel Platform related features

IPMI Commands Verified

Command KCS RMCP+ IPMB
IPM Device Global Commands
Device ID V V V
Cold Reset V V V
Warm Reset - - -
Get Self Test Results V V V
Manufacturing Test On - - -
Set ACPI Power State V V V
Get ACPI Power State V V V
Get Device GUID V V V
Get NetFn Support - - -
Get Command Support - - -
Get Command Sub-function Support - - -
Get Configurable Commands - - -
Get Configurable Command Sub-functions - - -
Set Command Enables - - -
Get Command Enables - - -
Set Command Sub-function Enables - - -
Get Command Sub-function Enables - - -
Get OEM NetFn IANA Support - - -
BMC Watchdog Timer Commands
Reset Watchdog Timer V V V
Set Watchdog Timer V V V
Get Watchdog Timer V V V
BMC Device and Messaging Commands
Set BMC Global Enables V V V
Get BMC Global Enables V V V
Clear Message Flags - - -
Get Message Flags V V V
Enable Message Channel Receive - - -
Get Message - - -
Send Message - - -
Read Event Message Buffer V V V
Get BT Interface Capabilities V V V
Get System GUID V V V
Set System Info Parameters V V V
Get System Info Parameters V V V
Get Channel Authentication Capabilities V V V
Get Session Challenge - - -
Activate Session - - -
Set Session Privilege Level - - -
Close Session - - -
Get Session Info - - -
Get AuthCode - - -
Set Channel Access V V V
Get Channel Access V V V
Get Channel Info Command V V V
User Access Command V V V
Get User Access Command V V V
Set User Name V V V
Get User Name Command V V V
Set User Password Command V V V
Activate Payload - V -
Deactivate Payload - V -
Get Payload Activation Status - V -
Get Payload Instance Info - V -
Set User Payload Access V V V
Get User Payload Access V V V
Get Channel Payload Support V V V
Get Channel Payload Version V V V
Get Channel OEM Payload Info - - -
Master Write-Read V V V
Get Channel Cipher Suites V V V
Suspend/Resume Payload Encryption - - -
Set Channel Security Keys - - -
Get System Interface Capabilities - - -
Firmware Firewall Configuration - - -
Chassis Device Commands
Get Chassis Capabilities V V V
Get Chassis Status V V V
Chassis Control V V V
Chassis Reset - - -
Chassis Identify V V V
Set Front Panel Button Enables - - -
Set Chassis Capabilities V V V
Set Power Restore Policy V V V
Set Power Cycle Interval - - -
Get System Restart Cause - - -
Set System Boot Options V V V
Get System Boot Options V V V
Get POH Counter V V V
Event Commands
Set Event Receiver - - -
Get Event Receiver - - -
Platform Event V V V
PEF and Alerting Commands
Get PEF Capabilities - - -
Arm PEF Postpone Timer - - -
Set PEF Configuration Parameters - - -
Get PEF Configuration Parameters - - -
Set Last Processed Event ID - - -
Get Last Processed Event ID - - -
Alert Immediate - - -
PET Acknowledge - - -
Sensor Device Commands
Get Device SDR Info V V V
Get Device SDR V V V
Reserve Device SDR Repository V V V
Get Sensor Reading Factors - - -
Set Sensor Hysteresis - - -
Get Sensor Hysteresis - - -
Set Sensor Threshold - - -
Get Sensor Threshold V V V
Set Sensor Event Enable - - -
Get Sensor Event Enable - - -
Re-arm Sensor Events - - -
Get Sensor Event Status - - -
Get Sensor Reading V V V
Set Sensor Type - - -
Get Sensor Type V V V
Set Sensor Reading And Event Status V V V
FRU Device Commands
Get FRU Inventory Area Info V V V
Read FRU Data V V V
Write FRU Data V V V
SDR Device Commands
Get SDR Repository Info V V V
Get SDR Repository Allocation Info - - -
Reserve SDR Repository V V V
Get SDR V V V
Add SDR - - -
Partial Add SDR - - -
Delete SDR - - -
Clear SDR Repository - - -
Get SDR Repository Time - - -
Set SDR Repository Time - - -
Enter SDR Repository Update Mode - - -
Exit SDR Repository Update Mode - - -
Run Initialization Agent - - -
SEL Device Commands
Get SEL Info V V V
Get SEL Allocation Info - - -
Reserve SEL V V V
Get SEL Entry V V V
Add SEL Entry V V V
Partial Add SEL Entry - - -
Delete SEL Entry V V V
Clear SEL V V V
Get SEL Time V V V
Set SEL Time V V V
Get Auxiliary Log Status - - -
Set Auxiliary Log Status - - -
Get SEL Time UTC Offset - - -
Set SEL Time UTC Offset - - -
LAN Device Commands
Set LAN Configuration Parameters V V V
Get LAN Configuration Parameters V V V
Suspend BMC ARPs - - -
Get IP/UDP/RMCP Statistics - - -
Serial/Modem Device Commands
Set Serial/Modem Mux - - -
Set Serial Routing Mux - - -
SOL Activating - V -
Set SOL Configuration Parameters - V -
Get SOL Configuration Parameters - V -
Command Forwarding Commands
Forwarded Command - - -
Set Forwarded Commands - - -
Get Forwarded Commands - - -
Enable Forwarded Commands - - -

V: Verified
-: Unsupported

DCMI Commands Verified

Command Verified
DCMI Capabilities & Discovery Configuration Commands
Get DCMI Capabilities Info V
Set DCMI Configuration Parameters V
Get DCMI Configuration Parameters V
Get Management Controller Identifier String V
Set Management Controller Identifier String V
Platform & Asset Identification Commands
Get Asset Tag V
Set Asset Tag V
Sensor & SDR Commands
Get DCMI Sensor Info V
Power Management
Get Power Reading V
Get Power Limit V
Set Power Limit V
Activate / Deactivate Power Limit V
Thermal Management
Set Thermal Limit -
Get Thermal List -
Get Temperature Reading V

V: Verified
-: Unsupported

Image Size

Type Size Note
image-uboot 450 KB u-boot 2019.01 + bootblock for NPCM750 only
image-kernel 4.0 MB linux 5.2.11 version
image-rofs 18.0 MB bottom layer of the overlayfs, read only
image-rwfs 0 MB middle layer of the overlayfs, rw files in this partition will be created at runtime,
with a maximum capacity of 3 MB

Modifications

  • 2019.10.01 First release ReadME.md
  • 2019.11.20 First release VM, In-Band Firmware Update
  • 2019.12.05 Add BIOS update function via web UI part
  • 2019.12.09 Update Serail Over Lan(SOL) and BMC Firmware update
  • 2019.12.11 Update Time settings of System/Time
  • 2019.12.13 Update Sensors, and LED
  • 2019.12.13 Update Fan, BIOS POST code, and FRU
  • 2019.12.17 Update SOL IPMI, Image size, and server power operations
  • 2019.12.18 Update Message Bridging, and VM application
  • 2019.12.19 Rename Message Bridging to Host Power Budget Control
  • 2019.12.19 Add Fan PID control
  • 2019.12.23 Fix some typo and text format
